How Does a Gas Stove Work?

Knowing how your gas stove works isn't just practical knowledge—it’s the foundation of a more confident and creative relationship with your kitchen. This guide covers gas stove uses and functions from the ground up, including what a gas stove is, how it’s built, how ignition happens, and what to do when questions arise.

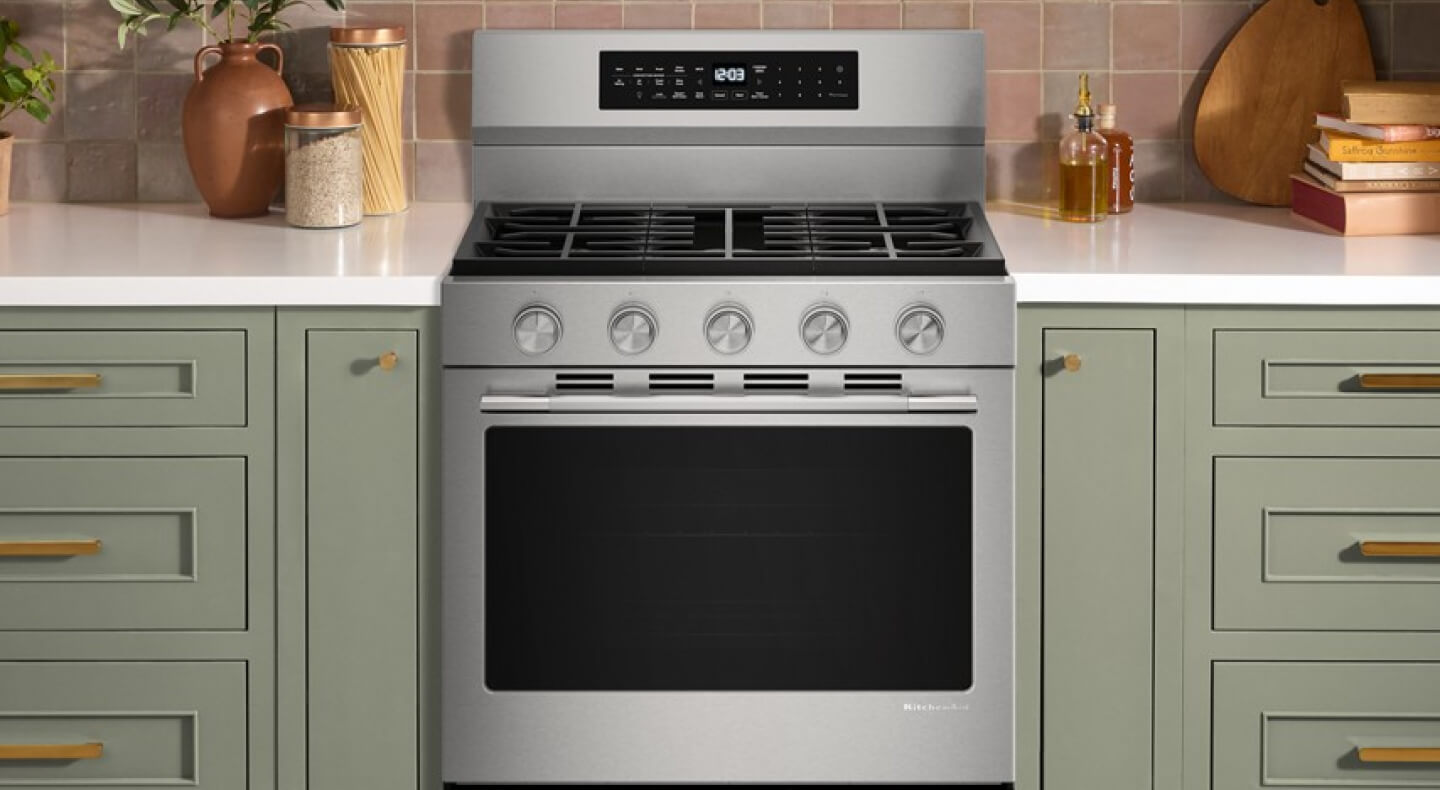

What is a gas stove?

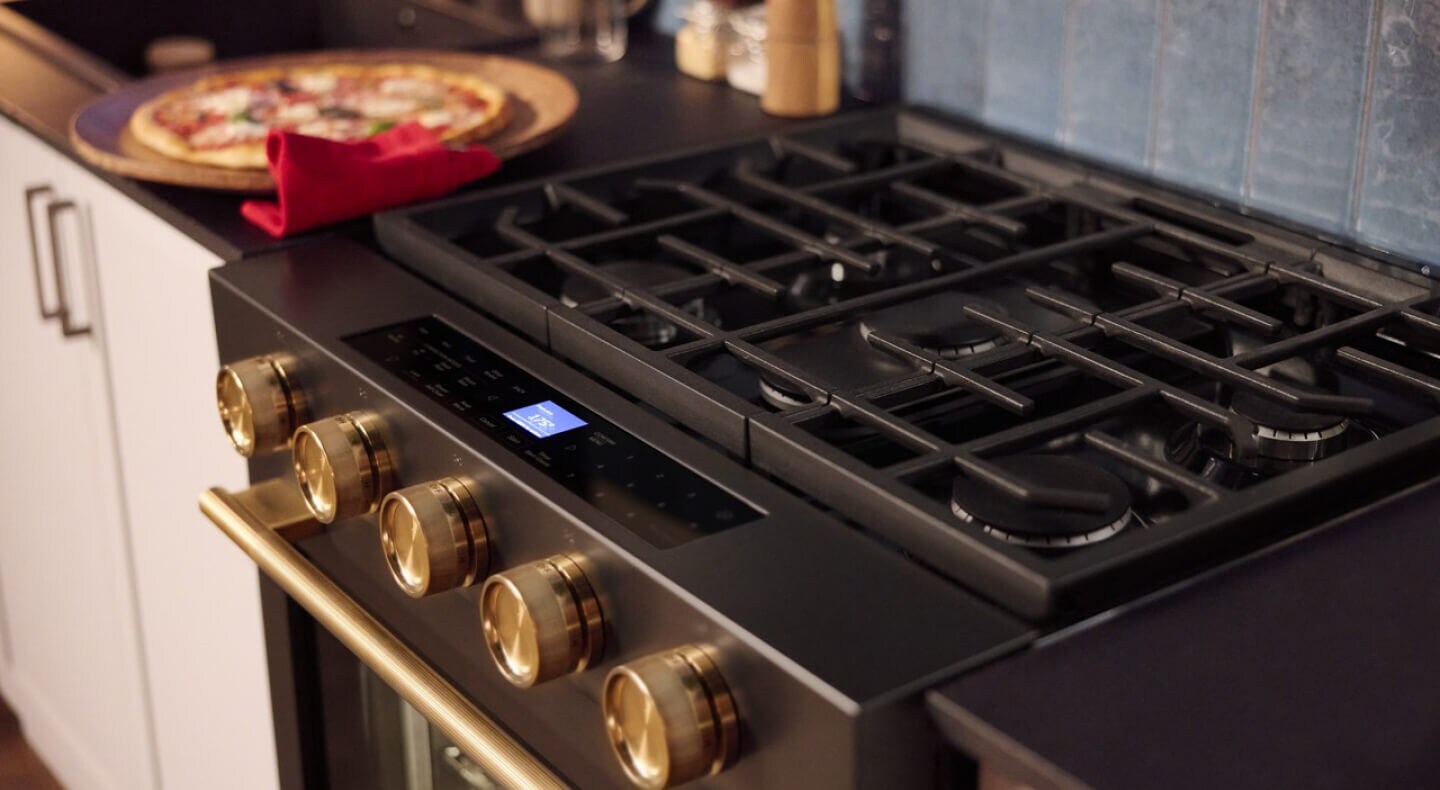

A gas stove is a cooking appliance fueled by combustible gas — most commonly natural gas or propane — that produces a direct, open flame as the heat source. A gas range pairs a multi-burner cooktop surface with an enclosed oven cavity below, combining the full spectrum of everyday cooking into a single appliance. Here’s a closer look at the two main components of a gas stove:

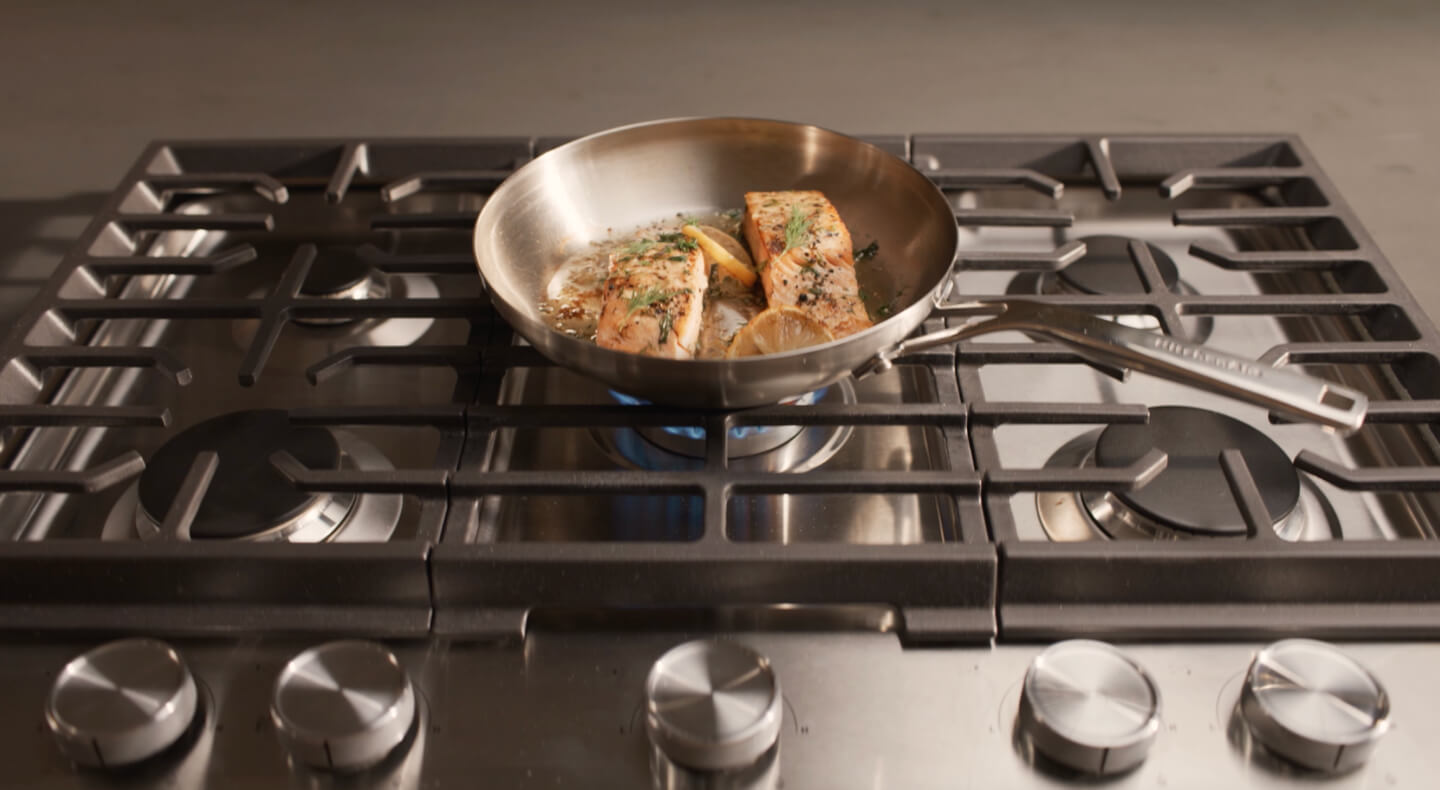

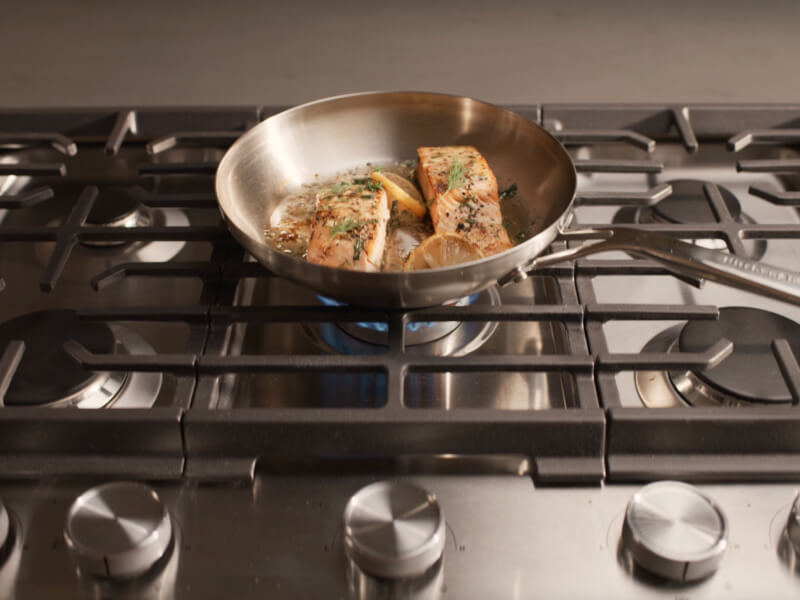

Cooking Surface: The cooktop ignites on demand, putting a responsive, visible flame to work the moment cooking begins. Flames appear instantly and temperatures shift in real time — the feedback between hand and heat is immediate, giving every cook direct, tactile command over the cooking process.

Oven: Within the oven cavity, a principal burner lives at the base while a secondary broil burner sits above, near the ceiling. Together, these two heat sources make it possible to bake from below, brown from above, and cycle heat throughout the space to hold a steady temperature over the course of a long roast or a delicate batch of macarons.

What are the different types of gas stoves?

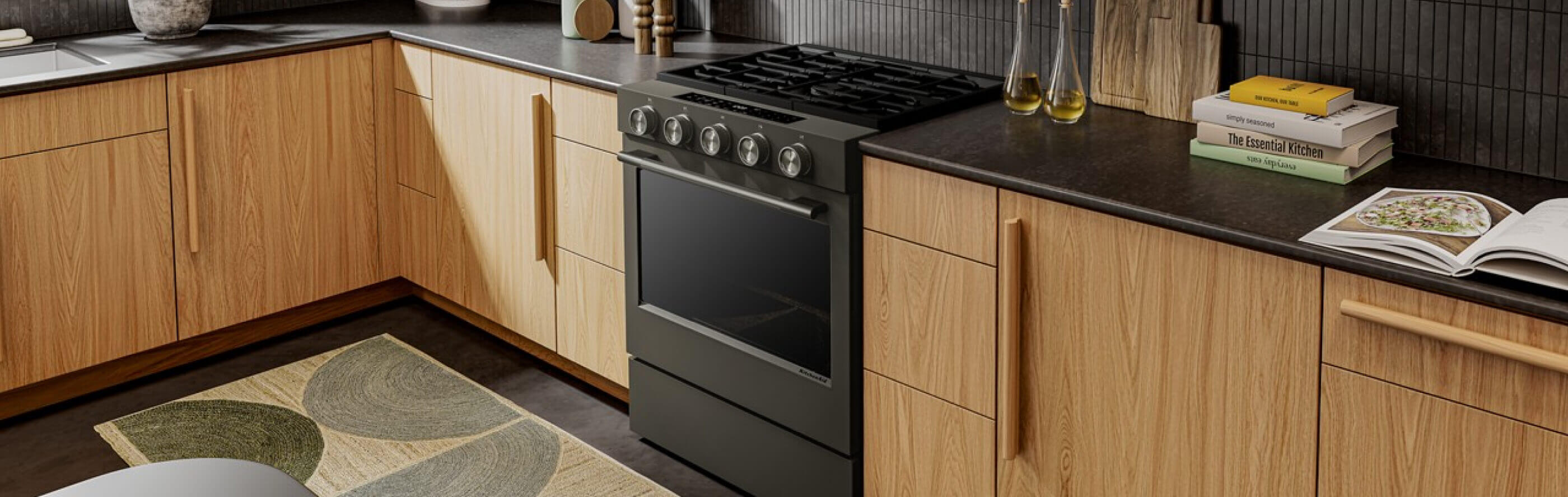

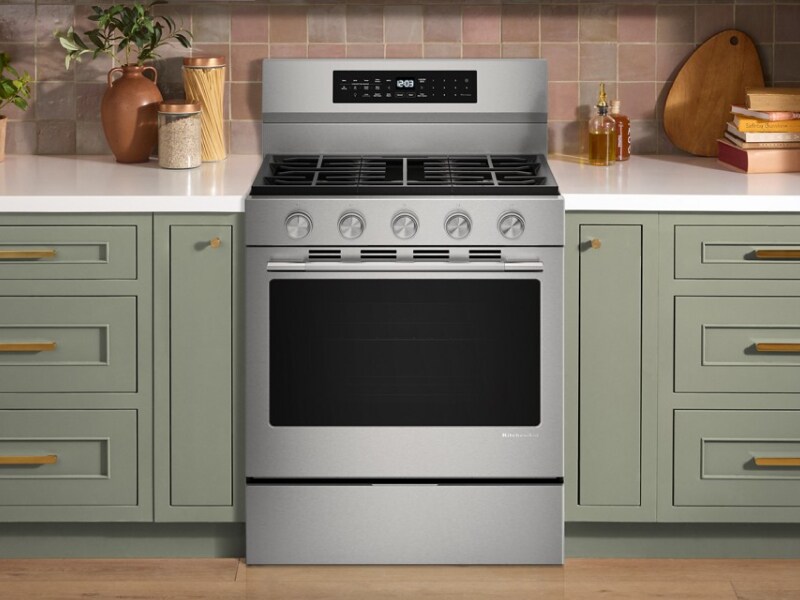

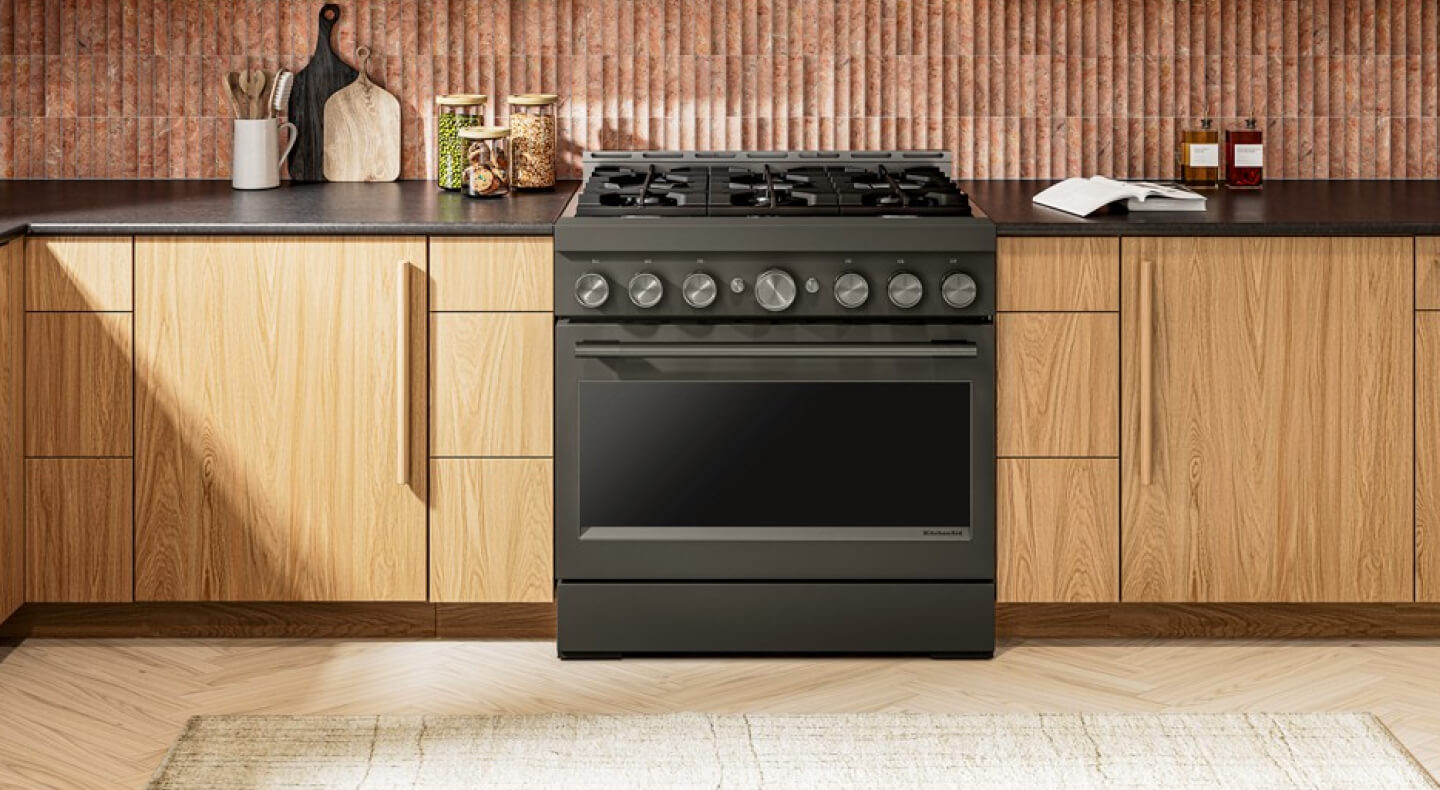

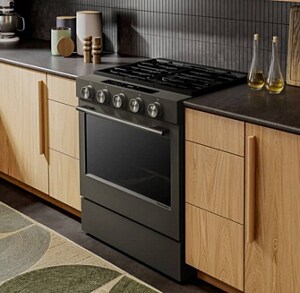

Gas stoves are available in a wide variety of configurations and styles. You can choose between freestanding or slide-in installation styles to seamlessly integrate into your kitchen’s layout. You can also find them in standard and commercial-style designs for a traditional or more professional look. Within these styles, you can further customize your cooking experience by choosing between a spacious single oven or a versatile double oven configuration.

Because cooking over an open flame requires good airflow, pairing a gas range with a range hood or comparable ventilation system is an important step toward helping maintain fresh, comfortable indoor air in the kitchen. If you want to skip the range hood, opt for a downdraft stove with ventilation capabilities built right in.

What Type of Gas Do Gas Stoves Use?

Two fuel sources power the vast majority of gas stoves: natural gas, delivered through a municipal supply line, and liquid propane (LP), stored on-site in a dedicated tank. Most new ranges arrive from the factory set up for natural gas, since that's the default connection in most residential kitchens. Homes with a propane supply require an LP conversion kit, a component that's either included with the range or sold separately. The conversion itself should always be carried out by a qualified professional.

Clarifying which fuel type is available at home before selecting a range helps make the installation process clear and straightforward, and means the first meal on a new gas range can happen on day one, not after an unexpected service call.

Shop KitchenAid^® Gas Stoves

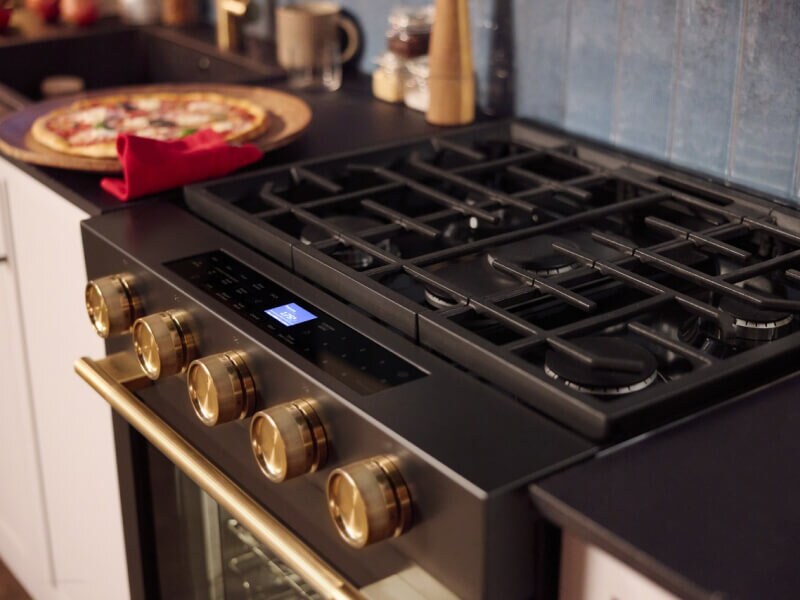

The Parts of a Gas Stove

Getting familiar with the individual parts of a gas stove makes it easier to cook with intention, and help keep the appliance in good condition. A gas range or stove brings together several distinct components, each one contributing something essential to the cooking experience. While parts can vary by model, here are the key parts of a gas stove you will typically find:

1. Burners

The heart of the cooktop, burners channel gas outward to feed the flame and determine the intensity of the heat. Select KitchenAid brand gas ranges feature surface burners spanning from 5,000 BTUs for a gentle simmer up to 18,000 BTUs for a swift, powerful boil. Select KitchenAid^® Commercial-Style Gas Ranges go even further with Ultra Power^™ Dual-Flame Burners reaching 20,000 BTUs—giving you precise control of powerful highs, steady lows and the wide range of temperatures in between.

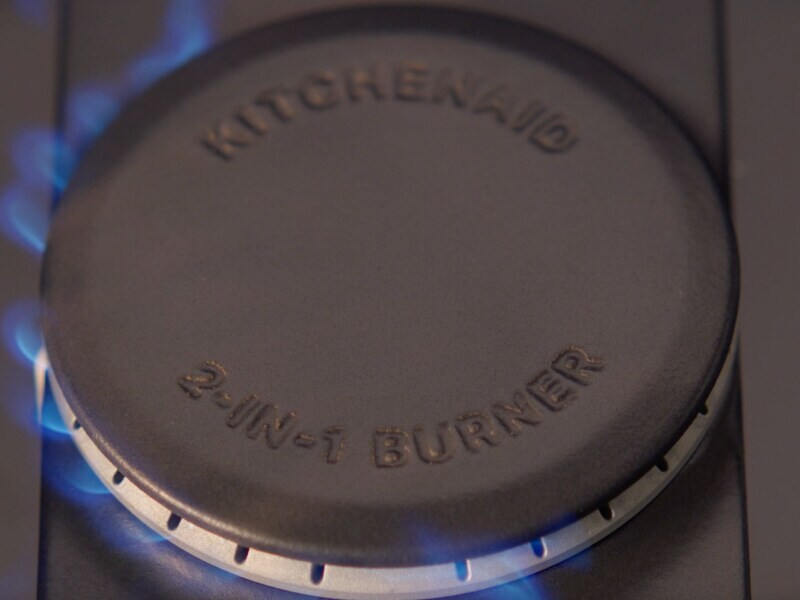

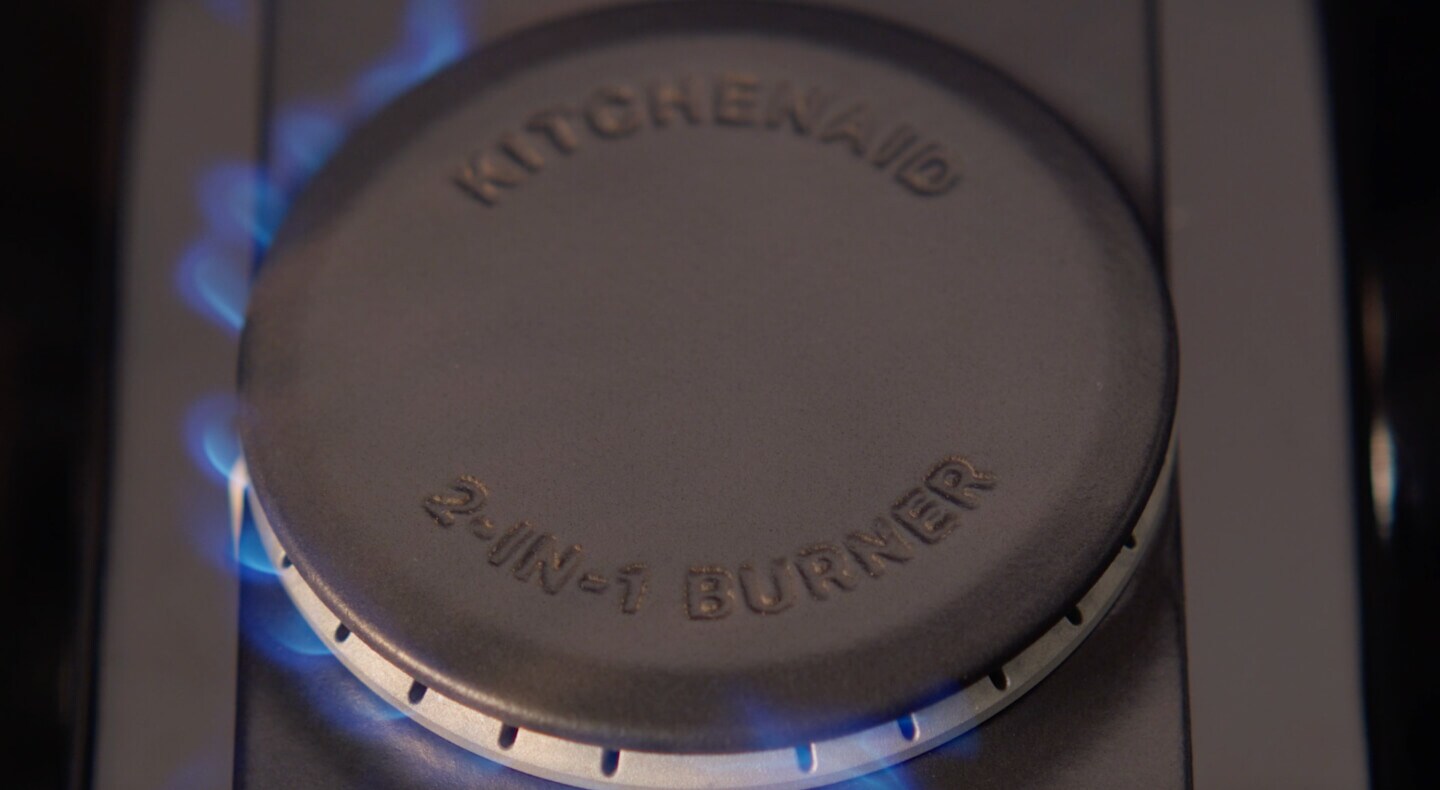

2. Burner caps

Seated directly atop the burners, these removable ceramic or metal covers shape and spread the flame into an even ring across the bottom of cookware. A clean, properly positioned burner cap is one of the quietest contributors to consistent cooking results — and typically an easy element to maintain.

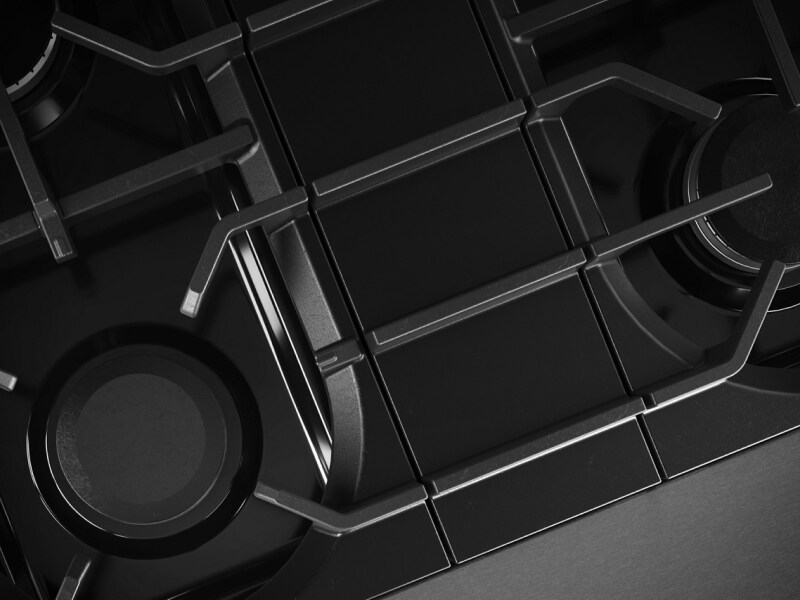

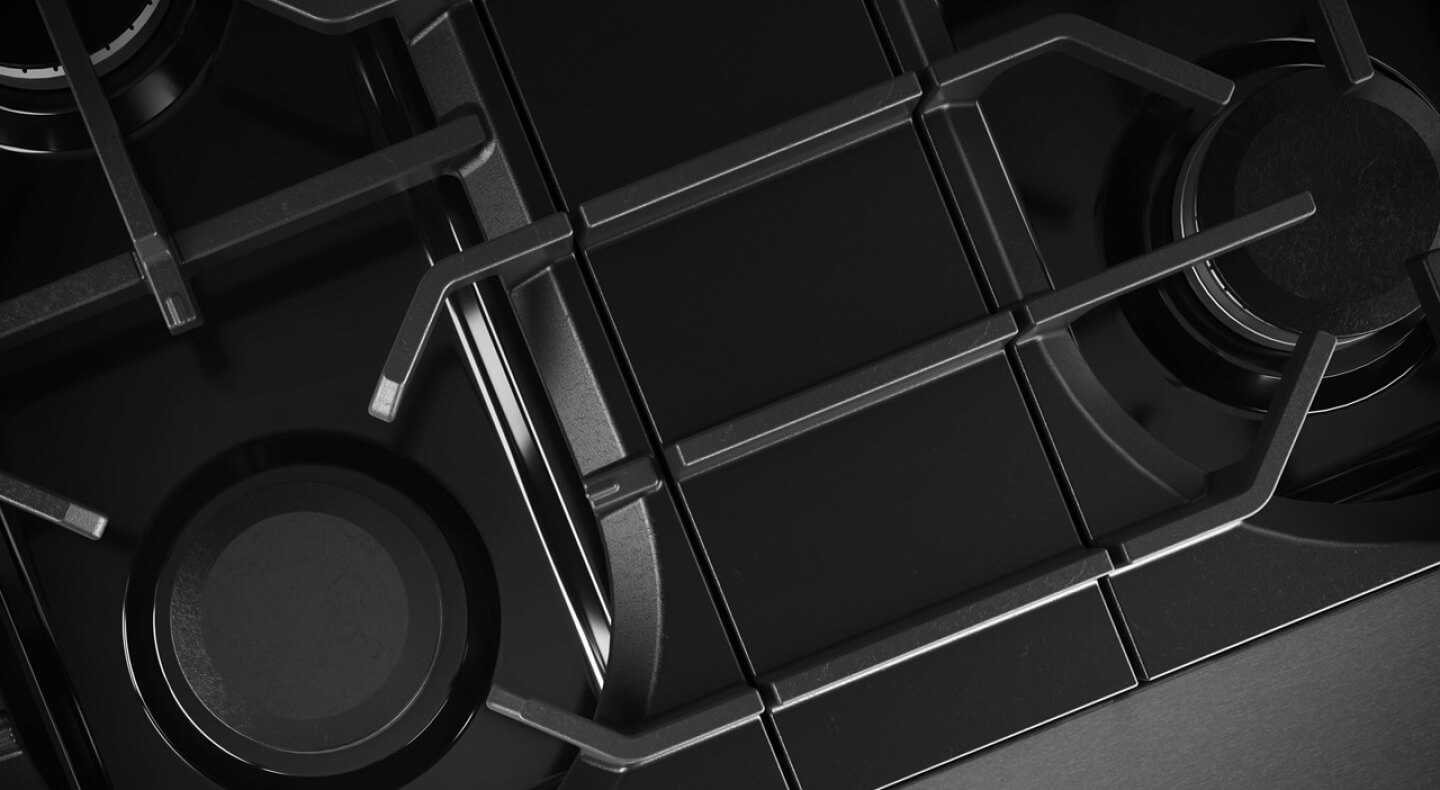

3. Grates

The grid-patterned supports that elevate pots and pans above the flame are called grates, and are often made of cast iron. Select KitchenAid^® Gas Ranges feature Edge-to-Edge Cast-Iron Grates that subtly integrate with your countertop, allowing you to move pots and pans easily from your counter to the cooking surface—an especially welcome feature when you’re midway through a recipe.

4. Knobs

Knobs are the physical controls for igniting burners and dialing in exactly the right flame level. They translate intention directly into heat—an especially satisfying quality when the cooking calls for something as finessed as a slowly reduced sauce or a quickly seared piece of fish.

5. Oven cavity

The oven cavity is the enclosed baking and roasting chamber below the cooktop, fitted with rack positions to control proximity to the heat source. Select KitchenAid brand models include a baking drawer beneath the oven, which allows you to keep warm, slow cook or bake at a different temperature and keep dishes warm.

6. Control panel

The control panel is the electronic interface for your oven settings including programming oven temperatures, selecting cook modes, and managing timers.

How Do Gas Stove Igniters Work?

That familiar series of rapid clicks when the knob turns is one of the most recognizable sounds in the kitchen—but the quick, elegant chain of events behind it is worth understanding. Knowing how gas stove igniters work demystifies the process and makes troubleshooting easier when something doesn't quite go to plan.

Cooktop ignition is nearly instantaneous the moment the knob is engaged. Oven ignition follows the same underlying sequence but unfolds inside the enclosed cavity, after which the oven works through a preheat cycle before reaching the target temperature. Here's how the spark comes to life on the cooktop, in three stages:

1. A signal is sent:

Rotating the burner knob to the "Lite" position dispatches a charge toward a component called the spark module — a small but essential piece of hardware tucked inside the appliance body.

2. The voltage climbs:

The spark module functions as an electrical amplifier, rapidly stepping up the incoming charge to a voltage strong enough to arc across an open gap without any physical contact between components.

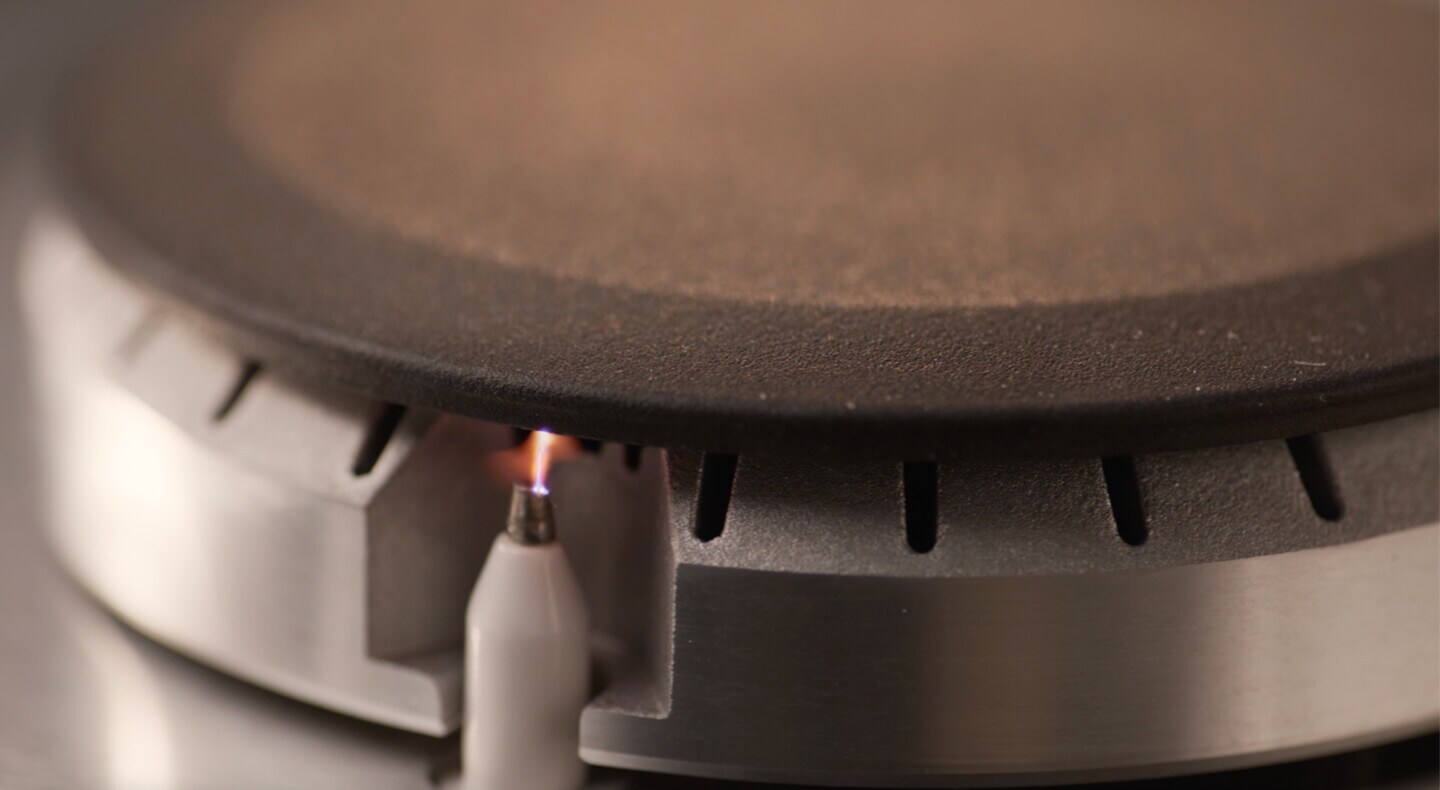

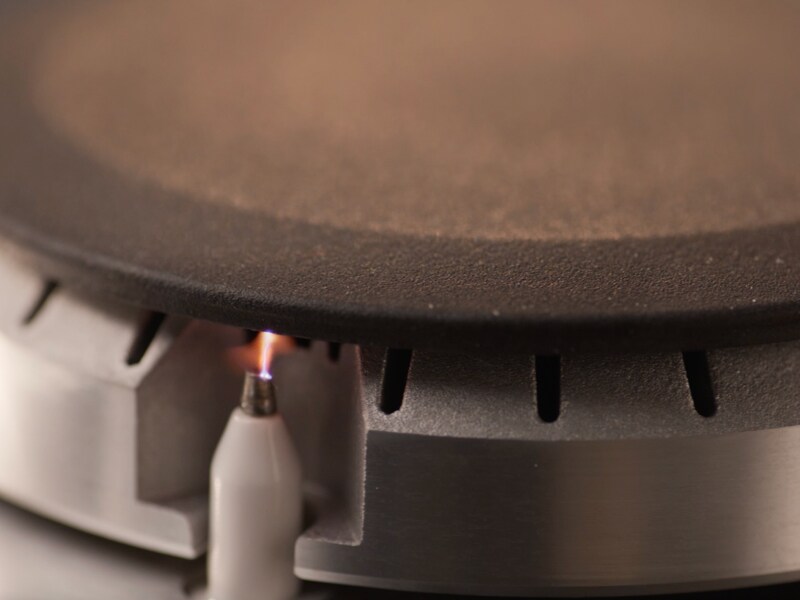

3. The igniter fires:

That amplified charge travels to a ceramic igniter tip positioned beside the burner, where it leaps the small air gap to the metal burner cap in a visible flash. This arc is the blue spark — and the source of the rhythmic clicking sound, which signals the moment of ignition.

When escaping gas reaches the igniter's arc, it catches and burns. Rotating the knob further past the "Lite" position ends the electrical cycle, quieting the clicking as the flame settles into a clean, steady burn. Burner BTU output then determines how powerfully and quickly heat is delivered to the cookware above.

Inside the oven, the ignition sequence is similar in nature but adapted for an enclosed environment. On select models, the oven igniter heats to a red-hot temperature and opens the gas valve before the incoming gas ignites against it. On other models, a high-voltage spark performs the same function. Both approaches are designed to help deliver reliable, repeatable heat for every bake.

How Does a Gas Oven Work?

The gentle, almost rhythmic character of a gas oven—the way it breathes heat into the cavity—starts with a simple sequence of ignition. When you set the dial, a thermostat signals a valve to open, releasing natural gas or propane. An electronic igniter then sparks or glows to light this gas, creating the flame that drives the cooking energy throughout the cavity.

Two distinct burners share this work. The lower bake burner provides the primary heat, warming the air that surrounds the food from beneath. The upper broil burner delivers focused, top-down radiant heat, which is ideal for developing a caramelized crust on a gratin, crisping the skin of a whole roasted bird, or finishing a dish with direct heat in the final minutes.

As the oven climbs to your target temperature during the preheat phase, that rhythmic character truly takes over. To hold the cavity steady, the oven flame doesn't burn continuously at full intensity. Instead, the thermostat constantly monitors the heat, causing the burners to cycle—quietly shutting off and reigniting as needed. This constant modulation is what helps maintain a precise temperature, making the gas oven such a trusted environment for baking and roasting.

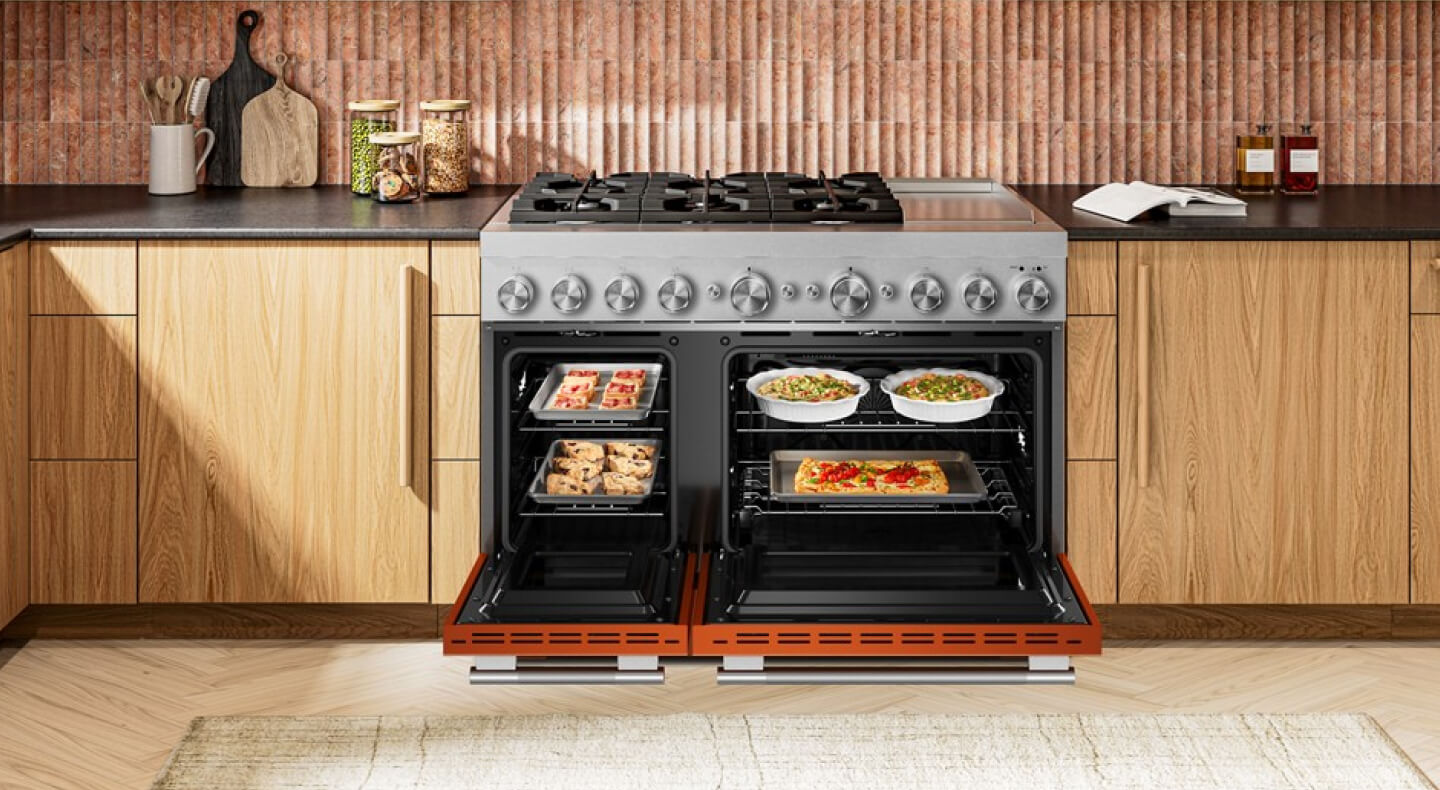

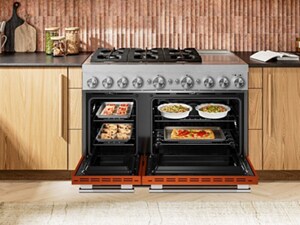

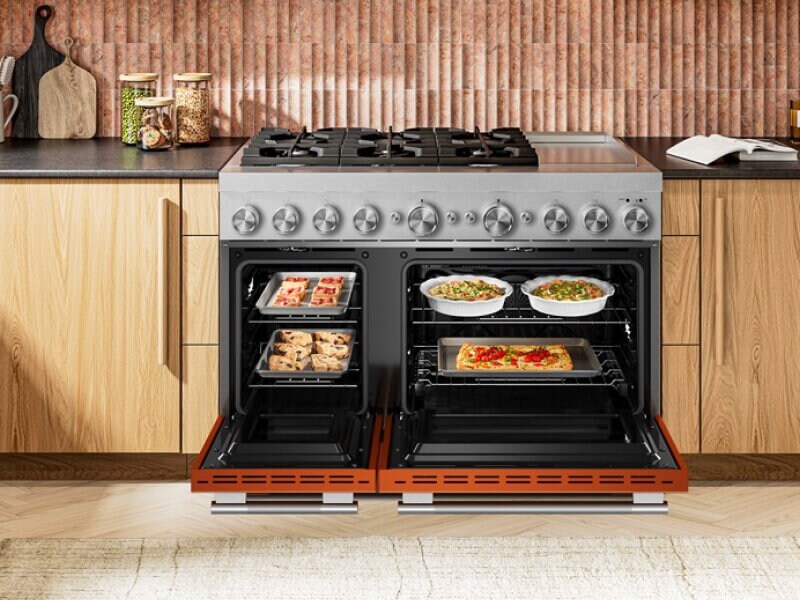

KitchenAid brand offers gas stoves in both single and double oven configurations to perfectly match your cooking style. A single oven model provides a large, uninterrupted cavity ideal for tackling oversized holiday roasts, while a double oven range gives you the flexibility of two separate temperature zones, so you can cook your main dish in one, and your sides in another.

How do gas convection ovens work?

While a traditional oven relies on heating elements at the top and bottom to produce radiant heat, a convection oven introduces a more active dynamic. A built-in fan circulates the hot air throughout the oven cavity, creating a steady airflow around the food.

A standard convection system uses this fan to move heat around, but a "true convection" oven takes it a step further. True convection features a third heating element located right at the back of the oven with the fan. This means the fan isn't just creating better airflow—it is actively blowing fresh, hot air directly into the mix.

This active circulation helps remove excess moisture from the surface of your food. By moving heated air throughout the cavity, the system helps maintain optimal and consistent temperatures. This encourages beautifully even browning, caramelized roasted vegetables, and baked goods with a golden-brown crust and fluffy insides—while sometimes even cooking your dishes faster.

Select KitchenAid^® Ranges feature Even-Heat^™ True Convection, which features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures combined with airflow for crisp, flaky baked goods, juicy, well-browned roasts and caramelized vegetables.

Shop KitchenAid^® Gas Stoves with Convection

What Color Should the Flame Be on a Gas Stove?

The color of a gas stove's flame is one of the most direct, immediate pieces of feedback the appliance can offer. Developing the habit of glancing at the burner before settling into a recipe is a small practice with meaningful payoff.

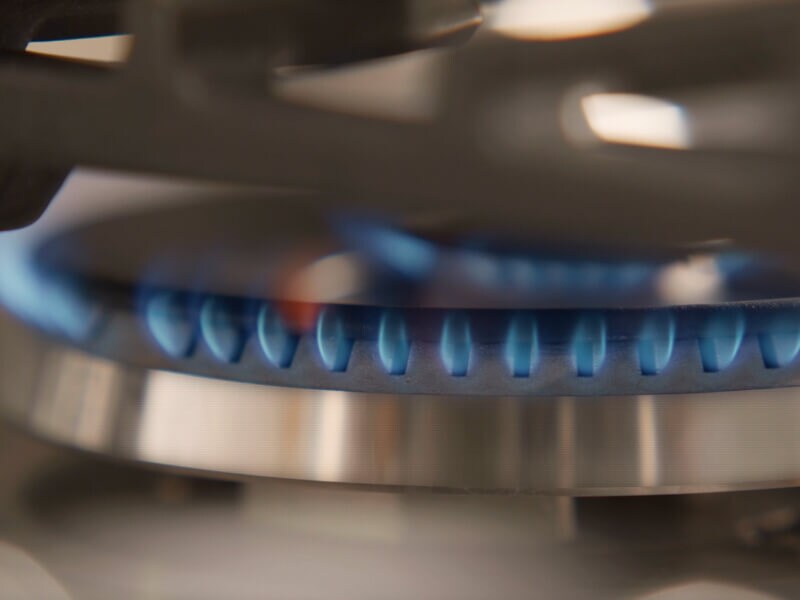

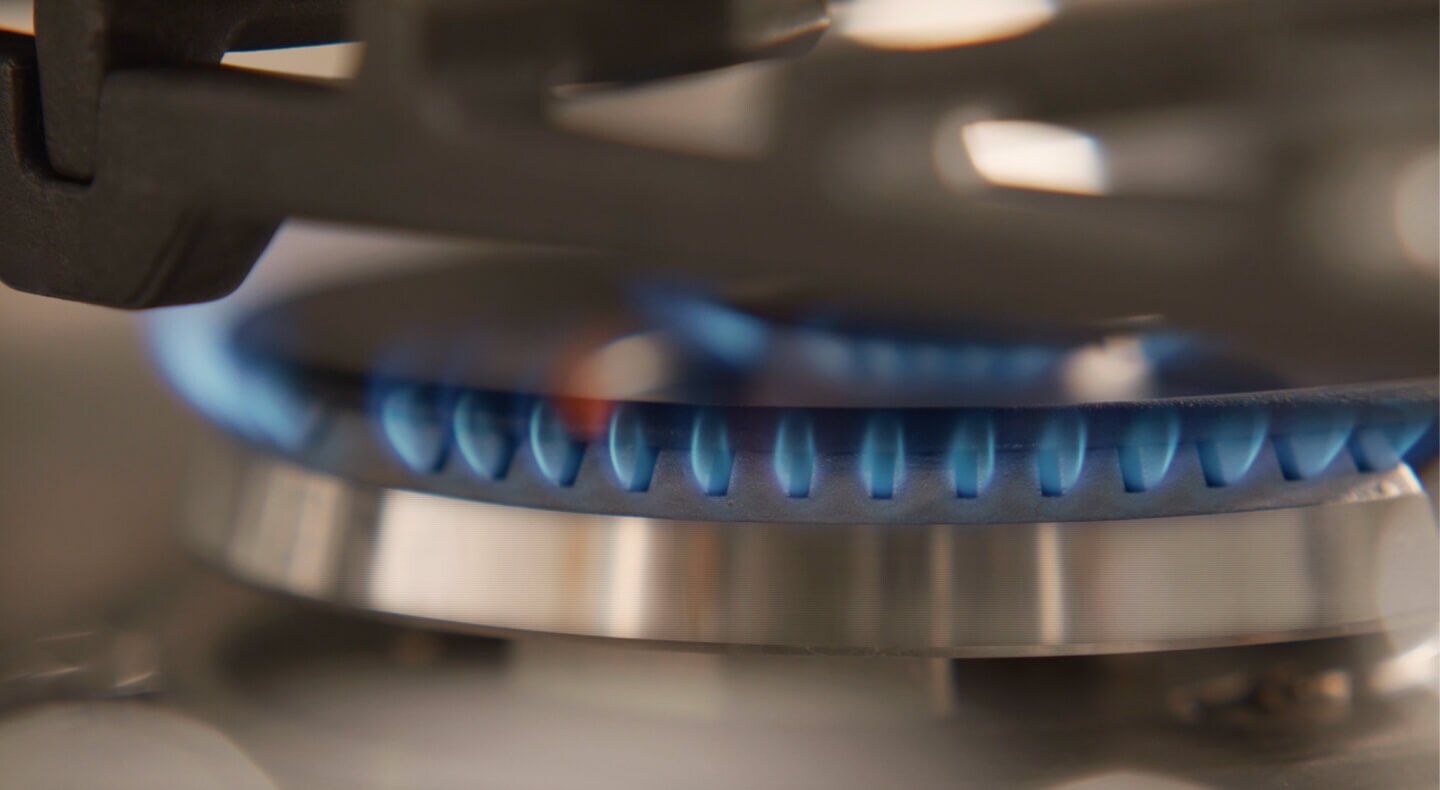

A steady blue flame is the target. It indicates complete combustion — gas and oxygen mixing at the right ratio — and means the burner is producing clean, efficient, optimally distributed heat. A well-maintained gas range with clean burners should reliably produce this color under normal operating conditions.

A blue and orange flame on a gas stove, or a flame that tips toward yellow, is a signal worth paying attention to. When combustion is incomplete, typically because of an imbalance in the gas-to-oxygen mixture, the flame takes on warm, flickering tones rather than holding its clean blue character. Beyond producing less consistent heat, an orange or yellow flame may deposit carbonized residue on the underside of cookware over time. If this flame color becomes a recurring pattern rather than an occasional flicker, cleaning the burner ports thoroughly or scheduling a professional maintenance visit may help discover the issue and restore the burner to its best performance.

Gas stove flame color is one of those details that, once known, becomes second nature to notice — and one of the simplest ways to help keep cooking results at their peak.

Do Gas Stoves Use Electricity?

Yes, gas stoves use electricity, even though the fuel doing all the cooking is gas. The electrical system isn't providing heat, but it powers several systems that the appliance genuinely cannot operate without. Here's a breakdown of what runs on electricity in a gas range:

• Ignition systems: Both the cooktop spark igniters and the oven igniter require electricity to generate the arc or glow that lights the gas. Without power, neither system can activate.

• Electronic control panels: Digital temperature displays, touchpad controls, mode selectors, and programmed timers all rely on a live electrical connection to function.

• Interior oven lighting: The bulb that illuminates the oven cavity so cooking progress can be monitored through the door is electrically powered.

• Convection fan motors: On ranges with convection, the fan driving heated air circulation throughout the oven cavity is an electric component.

Essentially, natural gas supplies the BTUs that do the cooking while electricity supplies the intelligence and ignition that make the whole system usable. Both connections are essential.

Can I Use My Gas Stove During a Power Outage?

Whether a gas stove remains usable during a power outage depends on the specific model. As a general rule, a gas oven is not usable during a power outage, because the ignition system, which lights the oven’s flame, requires electricity, and without it, the oven cannot operate safely.

A gas cooktop is a different story on select models. Some allow the surface burners to be lit manually during a power interruption, though this varies by model and may be prevented by certain appliance safety features. Always consult the owner's manual before attempting to operate any part of the appliance manually during a power outage.

Why Is My Gas Stove Clicking But Not Lighting?

If your gas burners are clicking without catching a flame, a few simple checks can help get you back to creating in the kitchen. Start by ensuring your cooktop is connected to the gas supply and that a control lockout feature hasn't been accidentally engaged. If you've recently cleaned up after a beautifully messy meal, residual moisture or a small clog in the burner ports might be interrupting the spark—allowing the area to dry completely or gently clearing the ports with a straight pin often does the trick. Finally, make sure your knob is turned precisely to the ignite position, and if you are using a downdraft vent, try lowering the fan speed so the breeze doesn't pull the spark away from the gas. Always refer to your owner’s manual for detailed troubleshooting and consult a professional if you’re still stuck.

Ignite Your Inspiration

Understanding the mechanics of your gas stove does more than just answer a few technical questions—it gives you the freedom to cook with greater intention and confidence. Whether you’re dialing in the perfect simmer for a delicate reduction or relying on the rhythmic heat of the oven for a beautiful roast, knowing how your appliance works transforms it from a mere tool into a true partner in the kitchen. With this foundation in place, you are ready to explore new techniques, push your culinary boundaries, and bring your most ambitious recipes to life.
