Overview

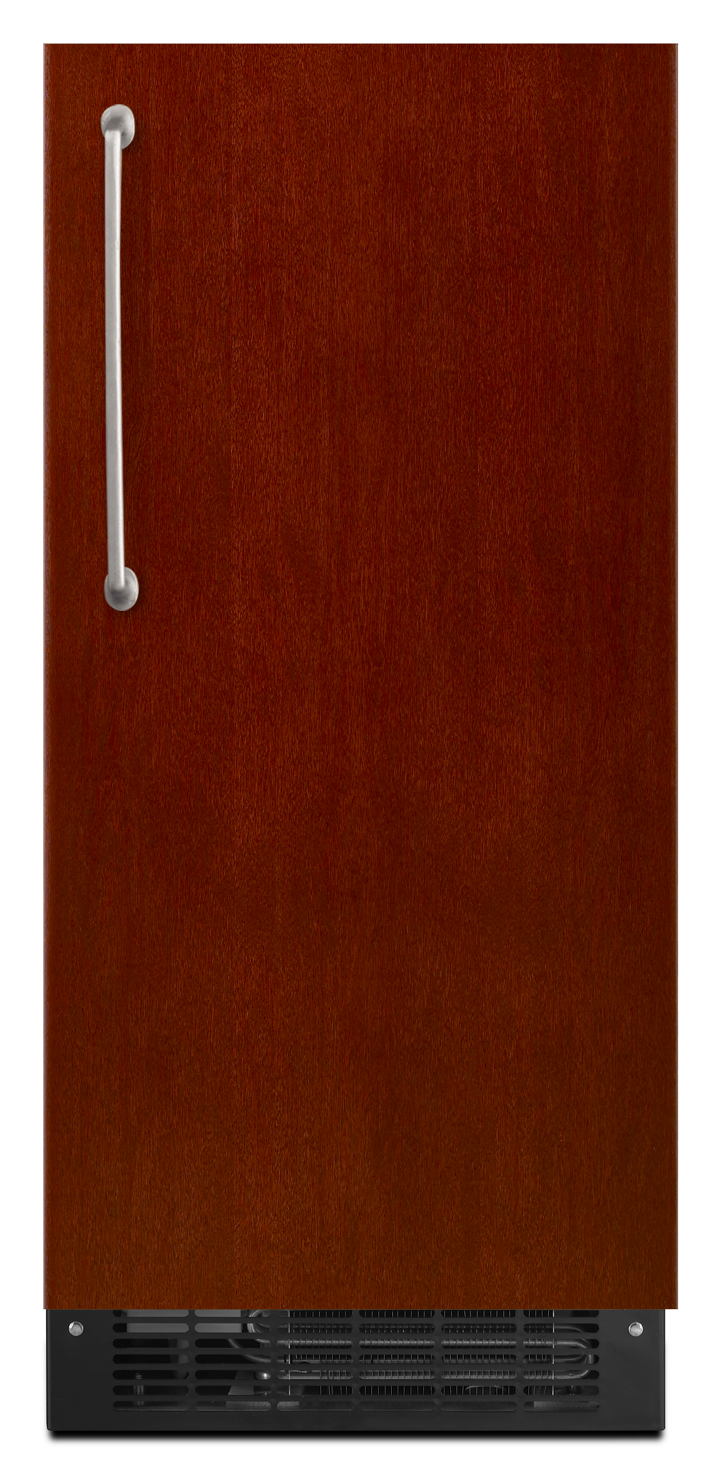

KitchenAid® 15'' Automatic Ice Maker

Enjoy an ample supply of clear, uniformly shaped ice cubes ideal for a variety of everyday applications. This 15-inch ice maker accepts an overlay-style front panel (requires custom panel and handle, not included) that adds an elegant finishing touch to your kitchen or bar area. Fully Flush Installation blends with surrounding cabinetry for a refined built-in look.

Features

Fully Flush Installation with Articulating Hinge

allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.

Self Cleaning Cycle

Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.

PrintShield™ Finish

resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

Filter-Ready

provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.

Additional Features

Clear Ice Technology

provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.

Built-In Drain Pump System

Allows this ice maker to be installed nearly anywhere in the home within 100 feet of an under-sink drain line, so you can keep a continuous supply of clear ice in your kitchen or entertaining space

Holds 25 Pounds of Ice

ensures a generous supply of fresh ice is conveniently at your fingertips.

Max Ice

Reversible Door

offers flexible installation options by allowing hinge installation on either side of the door.

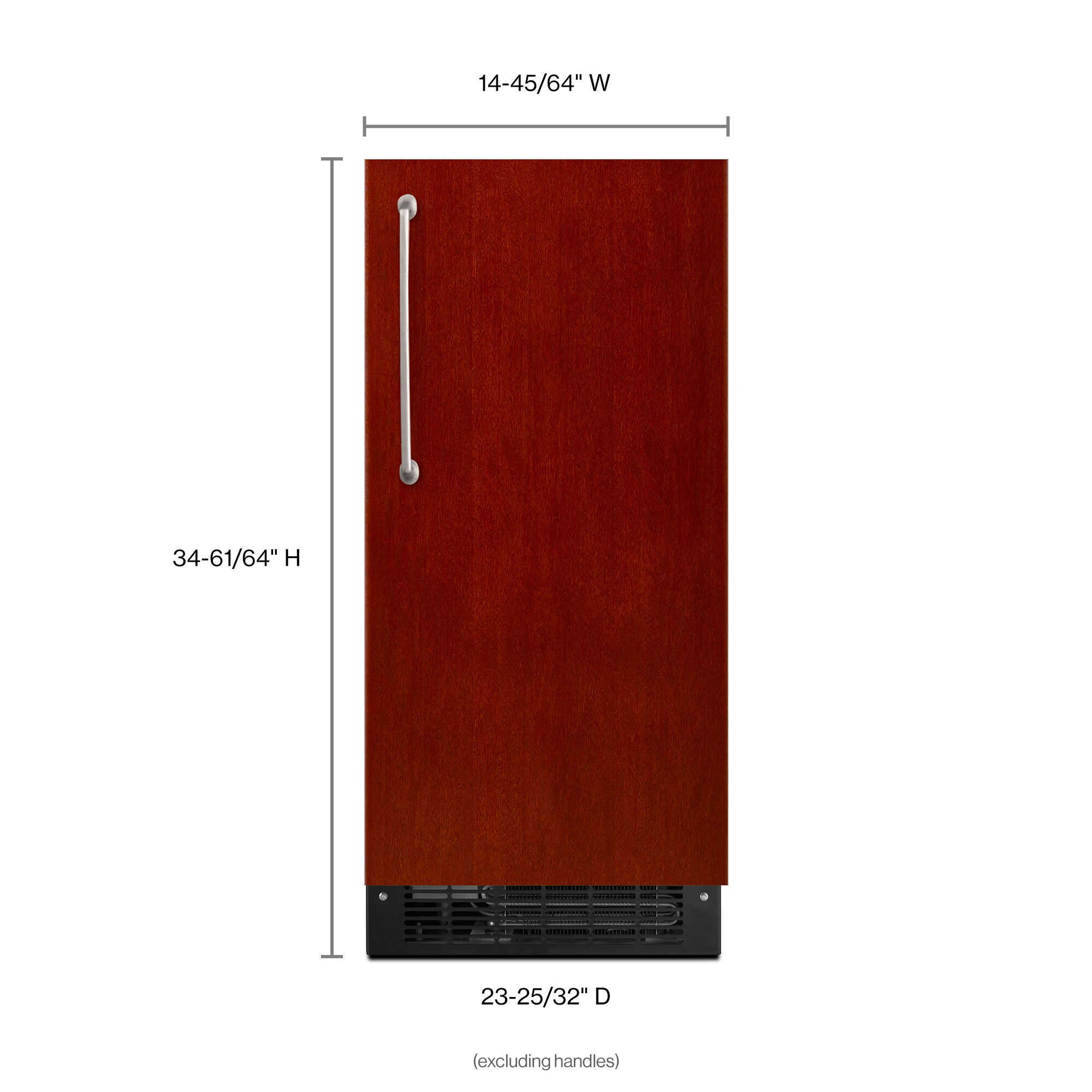

Specifications

Height:
34-19/20”
inches
34-19/20 in
Width:
14-7/100”
inches
14-7/100 in
Depth:
26-13/50”
inches
26-13/50 in
Download Specs Sheet
Download Dimension Guide

Certifications

ADA Compliant

No

Prop 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

UL

Yes

Controls

Ambient Temperature Range

55F to 110F

Control Location

Interior Up Front

Control Type

Electronic Touch

Exterior Details

Cabinet Finish

Textured

Cabinet Material

Prepainted Steel

Door Opening Direction

Right

Handle Location

Horizontal

Reversible Door

Yes

Dimensions

Cutout Depth

25 in

Cutout Height

34-1/2 in

Cutout Width

15 in

Depth

26-13/50 in

Gross Weight

107 lbs

Height

34-19/20 in

Height To Top Of Cabinet

33-5/8 in

Height To Top Of Door Hinge

34-63/1000 in

Net Weight

96-1/2 lbs

Width

14-7/100 in

Filter Details

Water Filter Indicator/Reset

Yes

Water Filter Location

Interior

Water Filter Part Number

F2WC9I1

Icemaker Details

Ice Maker On/Off

Yes

Details

Drain Connection

Rear Access 5/8in. OD

Drain Pump

Pump Included

Ice Capacity Storage

25 lbs

Ice Maker On/Off

Yes

Stainless Steel Cutting Grid

3/4in. x 3/4in. Cubes

Water Inlet Connection

1/4in. OD PEX Tubing

Freezer Details

Defrost Type

Automatic Defrost

Refrigerator Details

Liner Color

White

Interior Details

Interior Light

LED

Electrical

Amps

15

Volts

115
