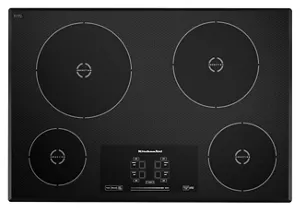

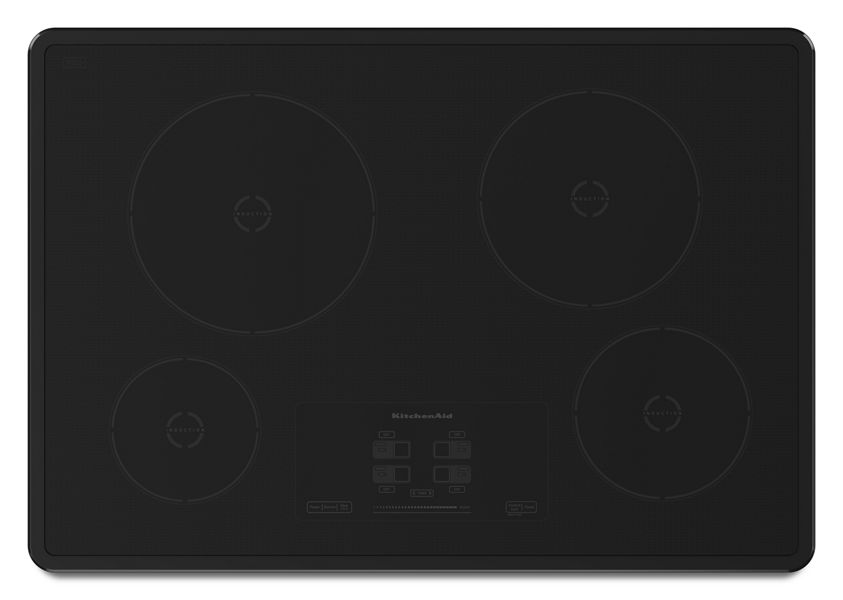

30-Inch 4 Element Induction Cooktop, Architect® Series II
Model:
KICU500XBL
Model:
KICU500XBL
Model: KICU500XBL
Model: KICU500XBL
30-Inch 4 Element Induction Cooktop, Architect® Series II
KICU500XBL
Model: KICU500XBL
30-Inch 4 Element Induction Cooktop, Architect® Series II
-
Point your Phone Camera at a flat surfaceTry a different space if you cannot view the product
-
Moving the product in your spaceUse one finger to move product
-
Scale to see product detailUse two fingers to pinch, scale, and rotate product
-
Tap twice to resetReturn to original scale by double tapping with one finger on the product
Appliance Color
Black
Black with Matching Hardware
About Hardware Accessory Kits
How it works?
Personalize your hardware with an accessory kit - a curated palette of mixed metals designed to compliment KitchenAid® exterior finish options.
Your appliance will come with pre-installed matching hardware. Hardware accessory kits ship separately and can be installed with ease - no additional tools needed (allen wrench included).
Browse finishes, color combinations, and find tips when you explore personalized kits.
Installation tips & guides
Delivery information
Take in consideration that delivery times might be different for the appliance and for the custom kit and they will be shipped separately.*
*Dates and cost will be shown at Checkout
Key Features
Features
4-Element Cooktop
Provides four independent cooking surface areas.
Additional Features
9 Heat Level Settings
Provide the versatility to select the power level needed to handle everything from searing to sautéing.
Performance Boost
Allows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling
Touch-Activated Controls
Offer an intuitive, easy-to-use touch screen experience.
Simmer Function
Automatically selects a low power level to help maintain a constant simmer without boiling over.
Melt and Hold
Uses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.
Pan Size Detection
recognizes the size and placement of cookware to generate heat directly within the pan. Display will alert you if you turn the cooktop on without a pan on the selected element or if your pan is not compatible with induction cooking.
Certifications
ADA Compliant
No
Prop 65
UL
Yes
Cooktop Details
Cooktop Selections
Control Lock, Melt, Power Boost, Power On Indicator Light, Simmer, Timer
Cooktop Surface Color
Black
Cooktop Surface Material
Ceramic Glass
Griddle Included
N/A
Heating Element On Indicator Light
Yes
Hot Surface Indicator Light
Yes
Installs Over Built-In Oven
No
Dimensions
Common Size
30 in
Cutout Depth
19-313/1000 in
Cutout Width
29-1/2 in
Depth
21-5/16 in
Gross Weight
47 lbs
Height
2-3/8 in
Net Weight
0 lbs
Width
30-13/16 in
Exterior Details
Knob Color
NA
Element/Burner Details
Automatic Pan Detection
Yes
Cooktop Element Style
Induction
Cooktop Type
Standard
Left Front Element-Burner Power
1800W/1400W
Left Front Element-Burner Size
6in.
Left Front Element-Burner Type
Power Boost
Left Rear Element-Burner Power
3200W/2300W
Left Rear Element-Burner Size
10in.
Left Rear Element-Burner Type
Power Boost
Number of Cooking Element-Burners
4
Right Front Element-Burner Power
1800W/1400W
Right Front Element-Burner Size
7in.
Right Front Element-Burner Type
Power Boost
Right Rear Element-Burner Power
3200W/2300W
Right Rear Element-Burner Size
9in.
Right Rear Element-Burner Type
Power Boost
Controls
Control Location
Front
Control Type
Tap Touch
Ventilation Details
Downdraft Vent
No
Details
Digital Display
Yes
Fuel Type
Electric Induction
Electrical
Amps
40
Hz
60
Power Cord Included
No
Volts
240
Additional services
Select these at checkout- If We Can’t Fix It, We Replace It with a Brand New One
- Protection planBreakdown Protection If Your Appliance Stops Working
- No Out of Pocket Repair Costs
- Serviced by our Network of Factory Certified Technicians
- Factory Certified Parts
Qty:
YOUR EMAIL ADDRESS IS SUCCESSFULLY SUBMITTED!
We will send you an email when this product is back in stock. Thank you!
You can adjust the subscription frequency in your cart. Skip refills or cancel anytime. Learn More
- Savings applied to your first order and every refill. Discount applied in cart.
- Choose delivery frequency in your cart. You'll only be billed when your filter ships.
- Hassle-free, we'll send you a reminder before each delivery. Skip refills or cancel any time.
- Cannot be combined with promo codes.
I agree to the Subscription Terms and authorize KitchenAid to automatically charge my default payment card at then-current prices at the frequency below. I acknowledge that my subscription will auto-renew until I cancel via the Subscriptions section of My Account before the refill order date.
WISH LIST LOGIN
To view or manage your wish list, you must have an account.<br/>Would you like to sign-in or create an account?
Error
There is an issue with your express checkout. Please add this product to cart and proceed through checkout normally
My review for 30-Inch 4 Element Induction Cooktop, Architect® Series II
WHY BUY WITH KITCHENAID?
Price Match Promise
Price matching is limited to identical products that are in stock at the retailer whose price is being matched at the time the price match is requested. Price matching for products already purchased can be made within 7 days of purchase OR if the product has not yet been delivered. We will match the pre-tax price including installation and parts. Only new products. Excludes extended service plans, refurbished or open box, bundle offers, financing offers, promotional codes, clearance products, and advertised pricing based on misprint or error.
Price matching is limited to identical products that are in stock at the retailer whose price is being matched at the time the price match is requested.
Free Returns on Major Appliances
If something isn’t right, we’re here to help. Request a return within 15 days for products purchased through KitchenAid.com that are in new condition.
Learn MoreWhirlpool Corp 25 Years with Habitat
In our 25 year relationship with Habitat for Humanity International, $150 million in funding and 250,000 appliances have been donated and nearly 1M people impacted.
Learn MoreOverview
This 30-inch cooktop features induction technology that uses electromagnetic energy to generate instant heat directly to your cookware without spreading the heat across the entire cooking surface. This superior responsiveness is available on four elements that can reach nine heat levels letting you do everything from boiling to simmering much faster than on a gas or electric cooktop.
Features
4-Element Cooktop
Provides four independent cooking surface areas.
Additional Features
9 Heat Level Settings
Provide the versatility to select the power level needed to handle everything from searing to sautéing.
Performance Boost
Allows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling
Touch-Activated Controls
Offer an intuitive, easy-to-use touch screen experience.
Simmer Function
Automatically selects a low power level to help maintain a constant simmer without boiling over.
Melt and Hold
Uses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.
Pan Size Detection
recognizes the size and placement of cookware to generate heat directly within the pan. Display will alert you if you turn the cooktop on without a pan on the selected element or if your pan is not compatible with induction cooking.
Specifications
Certifications
ADA Compliant
No
Prop 65
UL
Yes
Cooktop Details
Cooktop Selections
Control Lock, Melt, Power Boost, Power On Indicator Light, Simmer, Timer
Cooktop Surface Color
Black
Cooktop Surface Material
Ceramic Glass
Griddle Included
N/A
Heating Element On Indicator Light
Yes
Hot Surface Indicator Light
Yes
Installs Over Built-In Oven
No
Dimensions
Common Size
30 in
Cutout Depth
19-313/1000 in
Cutout Width
29-1/2 in
Depth
21-5/16 in
Gross Weight
47 lbs
Height
2-3/8 in
Net Weight
0 lbs
Width
30-13/16 in
Exterior Details
Knob Color
NA
Element/Burner Details
Automatic Pan Detection
Yes
Cooktop Element Style
Induction
Cooktop Type
Standard
Left Front Element-Burner Power
1800W/1400W
Left Front Element-Burner Size
6in.
Left Front Element-Burner Type
Power Boost
Left Rear Element-Burner Power
3200W/2300W
Left Rear Element-Burner Size
10in.
Left Rear Element-Burner Type
Power Boost
Number of Cooking Element-Burners
4
Right Front Element-Burner Power
1800W/1400W
Right Front Element-Burner Size
7in.
Right Front Element-Burner Type
Power Boost
Right Rear Element-Burner Power
3200W/2300W
Right Rear Element-Burner Size
9in.
Right Rear Element-Burner Type
Power Boost
Controls
Control Location
Front
Control Type
Tap Touch
Ventilation Details
Downdraft Vent
No
Details
Digital Display
Yes
Fuel Type
Electric Induction
Electrical
Amps
40
Hz
60
Power Cord Included
No
Volts
240
