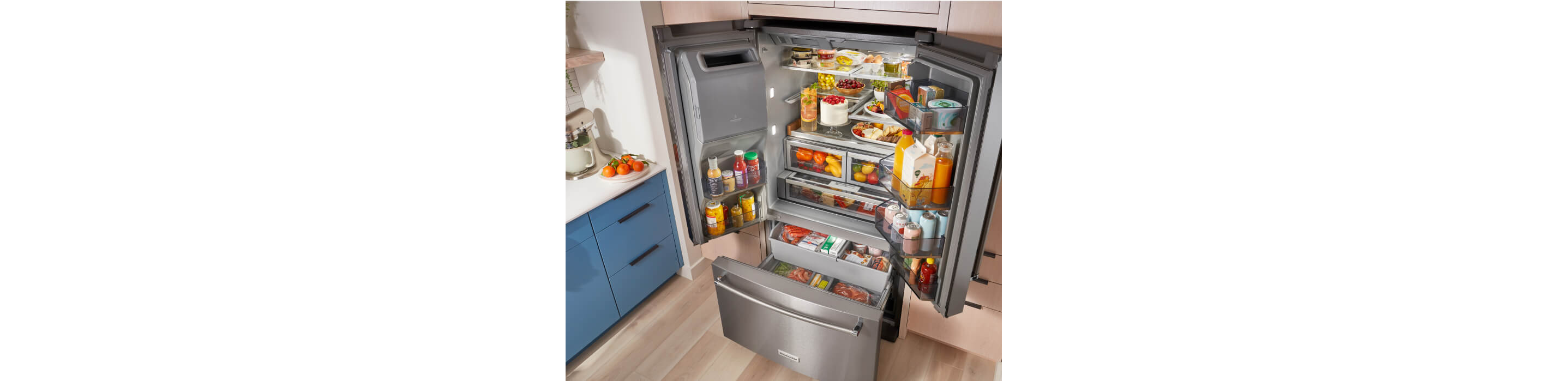

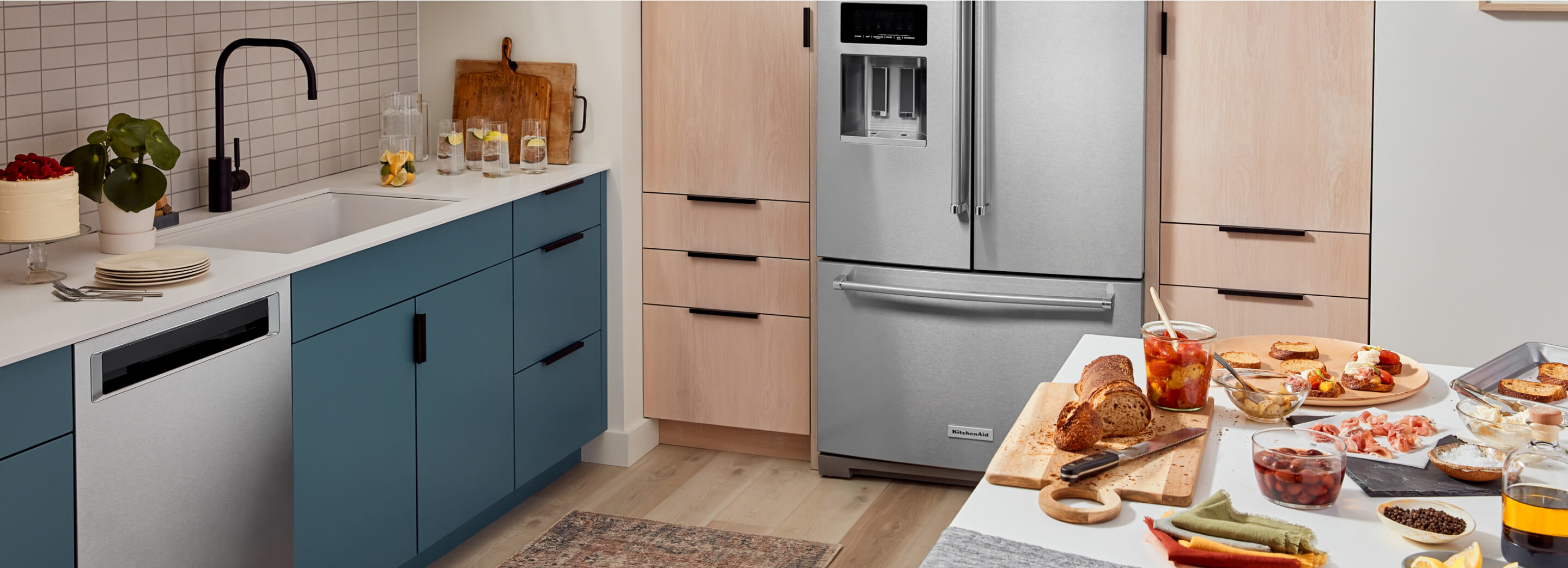

36" KitchenAid® French Door Bottom Mount Refrigerator installed in kitchen.

Quick start guide

36" FRENCH DOOR BOTTOM MOUNT REFRIGERATOR

KRFF577KPS

Select different Model

top features

KitchenAid® French Door Bottom Mount Refrigerator Under-Shelf Prep Zone holding charcuterie board.

SLIDING STORAGE TRAY

Learn More
KitchenAid® French Door Bottom Mount Refrigerator FreshChill™ Temperature Controlled Drawer holding meats and cheeses.

FRESHCHILL™ TEMPERATURE CONTROLLED DRAWER

Learn More
The top shelf of a KitchenAid® French Door Bottom Mount Refrigerator filled with fresh fruit and herbs.

EXTENDFRESH™ TEMPERATURE MANAGEMENT SYSTEM

Learn More

how to get started

KitchenAid® French Door Bottom Mount Refrigerator actively being loaded.

LOADING THE REFRIGERATOR

Learn More
A fully loaded KitchenAid® French Door Bottom Mount Refrigerator with the doors and drawers open.

COOLING ON/OFF

Learn More
A person engaging with the touchscreen controls on the KitchenAid® French Door Bottom Mount Refrigerator.

BASIC CONTROLS

Learn More
An illuminated Max Cool button on the KitchenAid® French Door Bottom Mount Refrigerator.

MAX COOL

Learn More
A person filling water from an external dispenser of the KitchenAid® French Door Bottom Mount Refrigerator.

MEASURED WATER FILL

Learn More

MAINTAIN YOUR REFRIGERATOR

Countertop with everydrop® water filter 2.

ChangE the water filter

Learn More
External water dispenser illuminated on the KitchenAid® French Door Bottom Mount Refrigerator.

DISPENSER LIGHT

Learn More
FreshFlow™ Water filter holder in the interior of the KitchenAid® French Door Bottom Mount Refrigerator.

CHANGE THE FRESHFLOW™ AIR FILTER

Learn More
Dispenser Lock is illuminated on the control panel of the KitchenAid® French Door Bottom Mount Refrigerator.

DISPENSER LOCK

Learn More
A person using a soft cloth to wipe the exterior of the KitchenAid® French Door Bottom Mount Refrigerator.

CLEAN THE EXTERIOR

Learn More
A woman at a sink with sponge washing a glass part of the KitchenAid® French Door Bottom Mount Refrigerator.

CLEAN THE INTERIOR

Learn More

need additional help?

Use the quick links below for fast, easy access to KitchenAid® Service & Support.

Note pad and paper icon.
REGISTER YOUR PRODUCT
An open book icon.
MANUALS & GUIDES
A text bubble icon.
SERVICE & SUPPORT
A calendar icon with a wrench inside of it.
SCHEDULE SERVICE
Gear icons.
SHOP ACCESSORIES

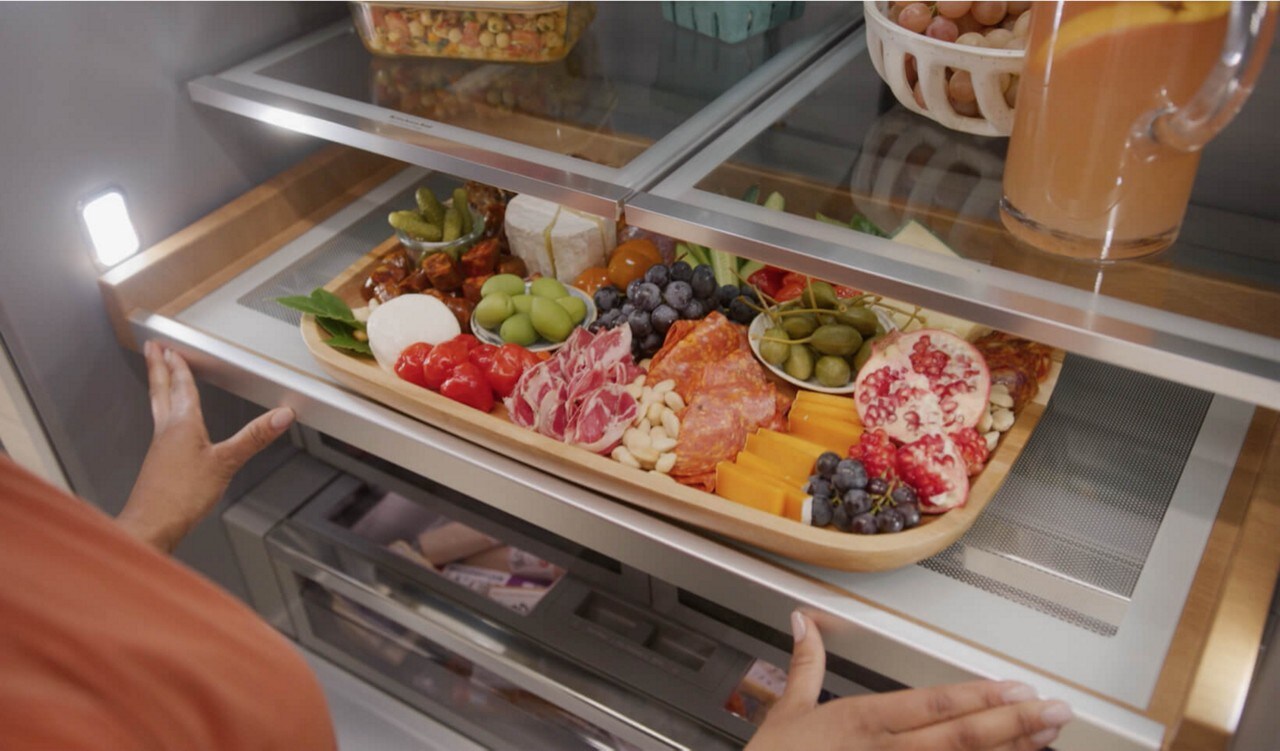

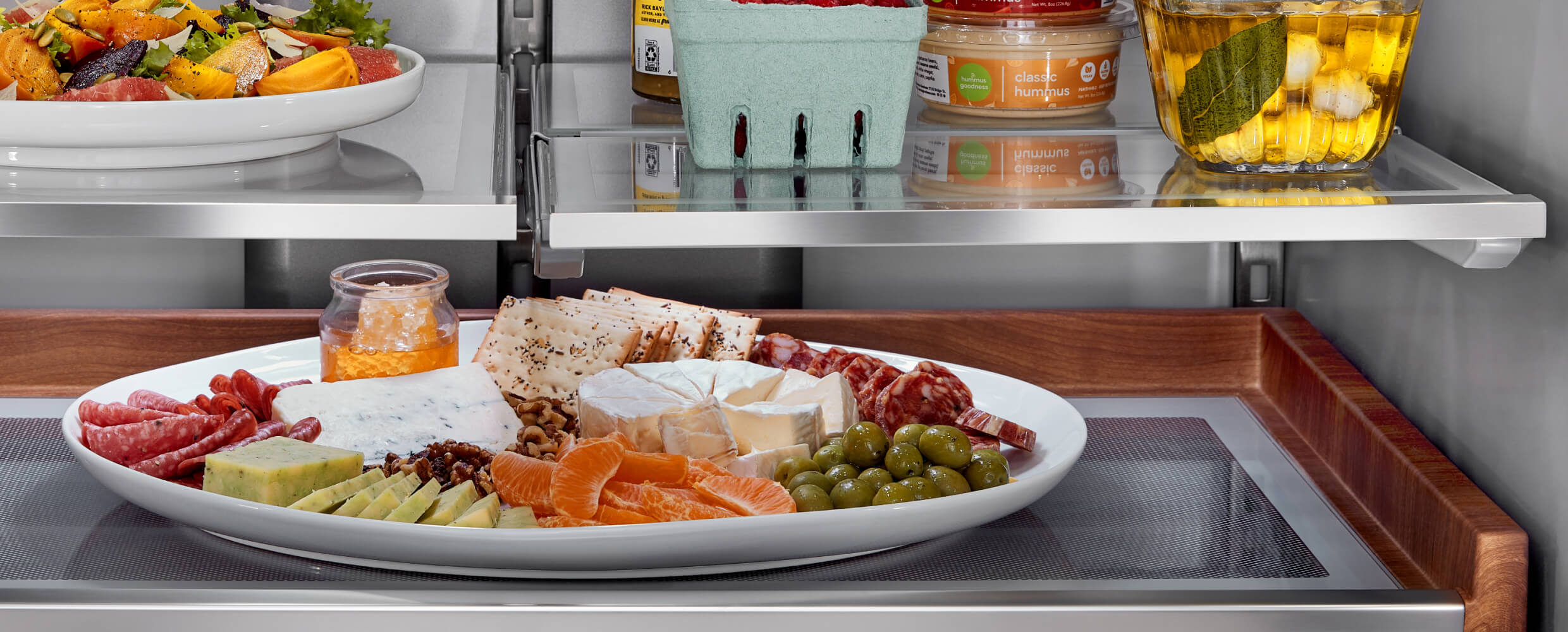

A charcuterie board on the Premium Wood-Look Finish Sliding Storage Tray. A charcuterie board on the Premium Wood-Look Finish Sliding Storage Tray.
video-poster

PREMIUM WOOD-LOOK FINISH SLIDING STORAGE TRAY

KEEPS PLATTERS AND INGREDIENTS READY TO SERVE

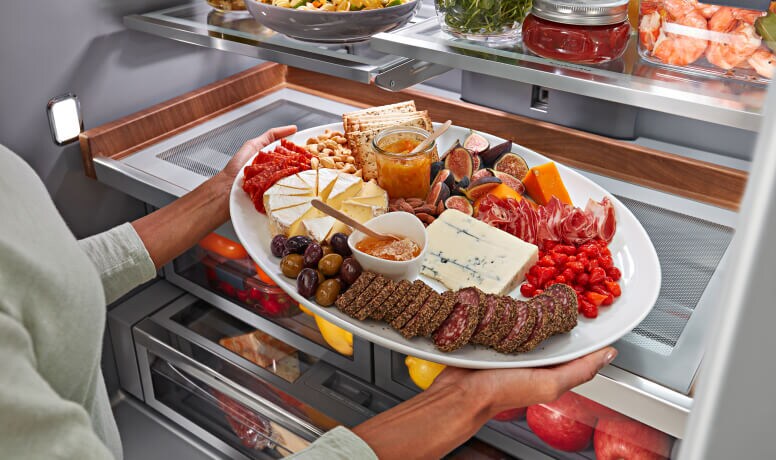

A person placing a charcuterie board on the Premium Wood-Look Finish Sliding Storage Tray. A person placing a charcuterie board on the Premium Wood-Look Finish Sliding Storage Tray.

EASILY WIPES CLEAN

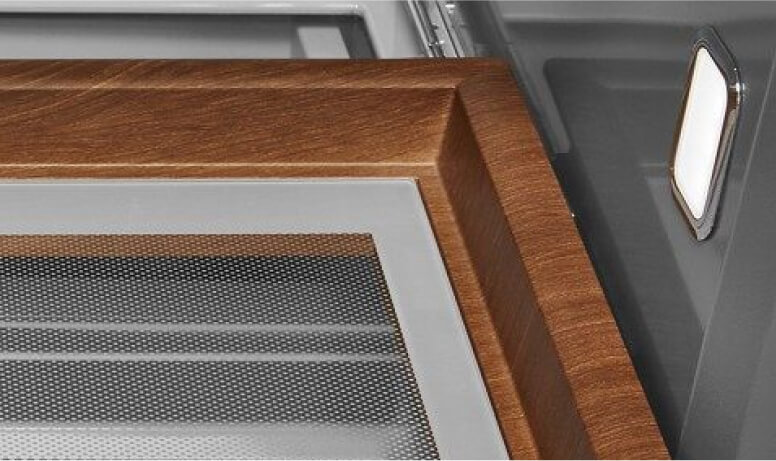

The detailed corner of the Premium Wood-Look Finish Sliding Storage Tray. The detailed corner of the Premium Wood-Look Finish Sliding Storage Tray.

®/™ ©2023 KitchenAid. All rights reserved.

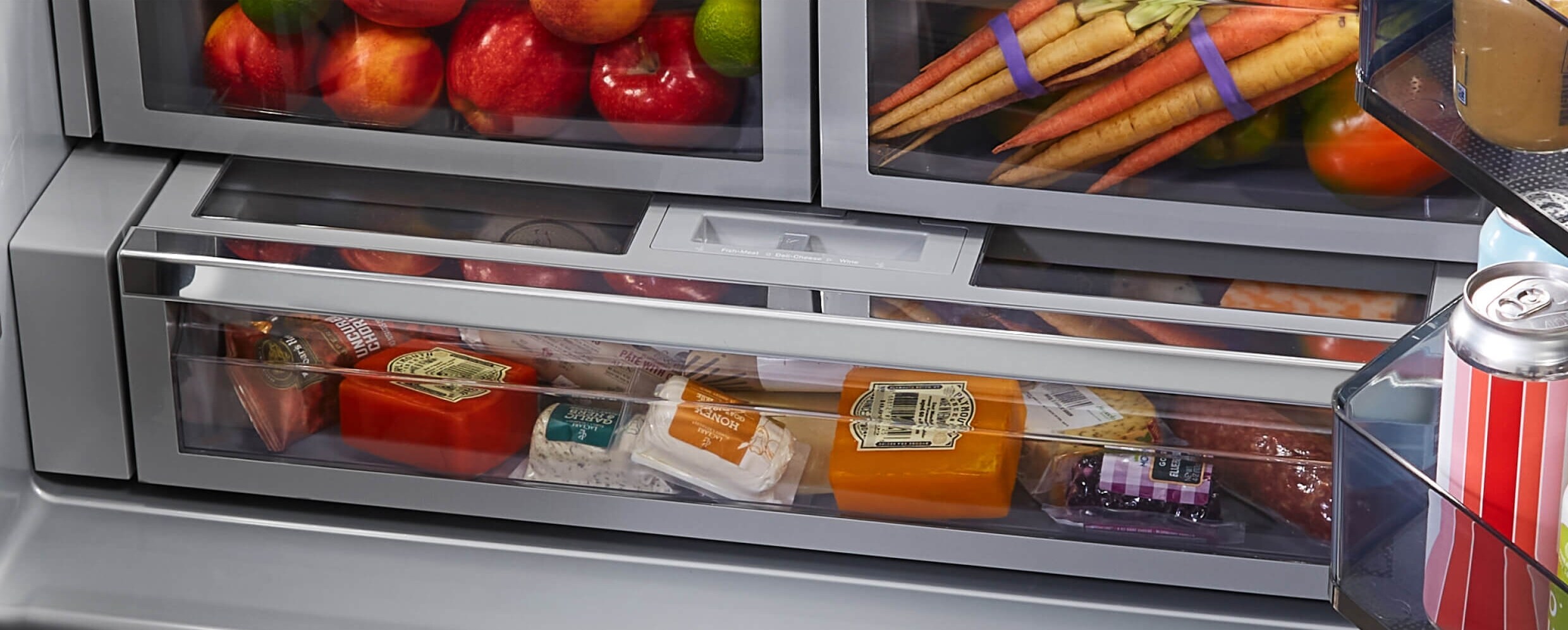

The FreshChill™ Temperature Controlled Drawer in the KitchenAid® French Door Bottom Mount Refrigerator. The FreshChill™ Temperature Controlled Drawer in the KitchenAid® French Door Bottom Mount Refrigerator.
video-poster

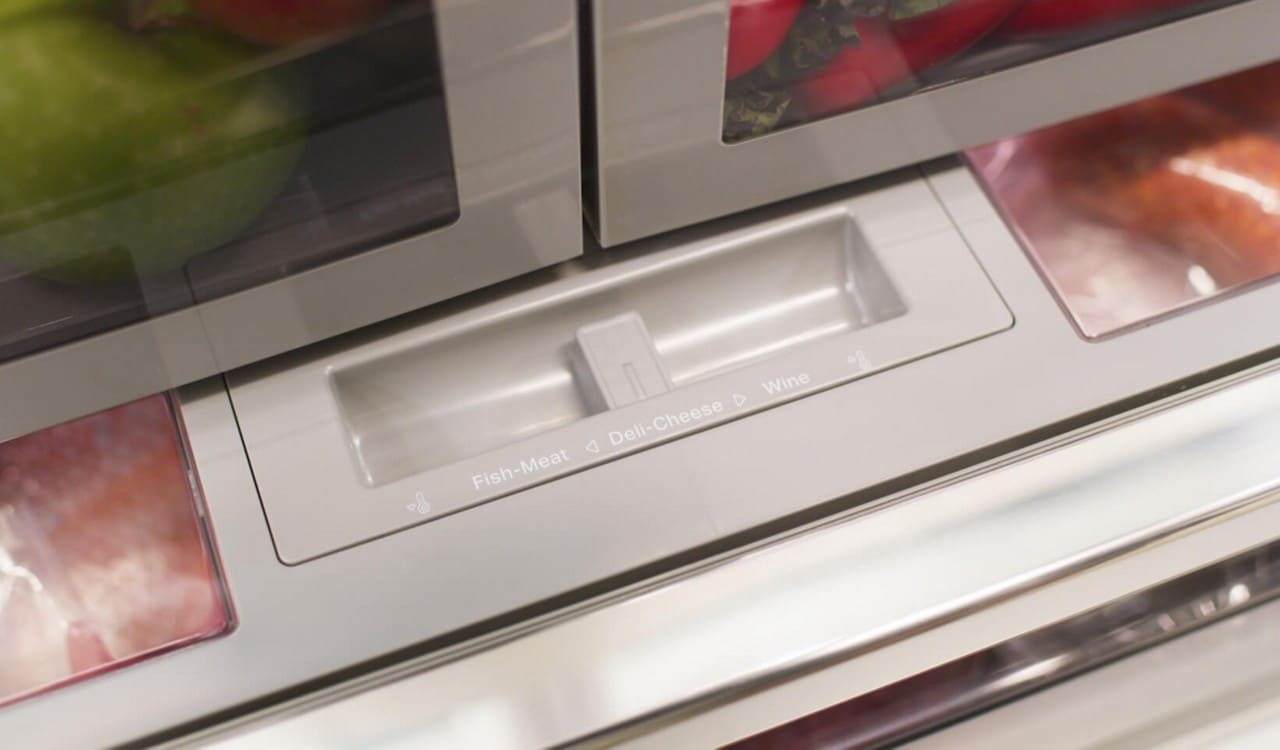

FreshChill™ Temperature Controlled Drawer

CUSTOM SETTINGS FOR FISH & MEAT, DELI & CHEESE AND WINE

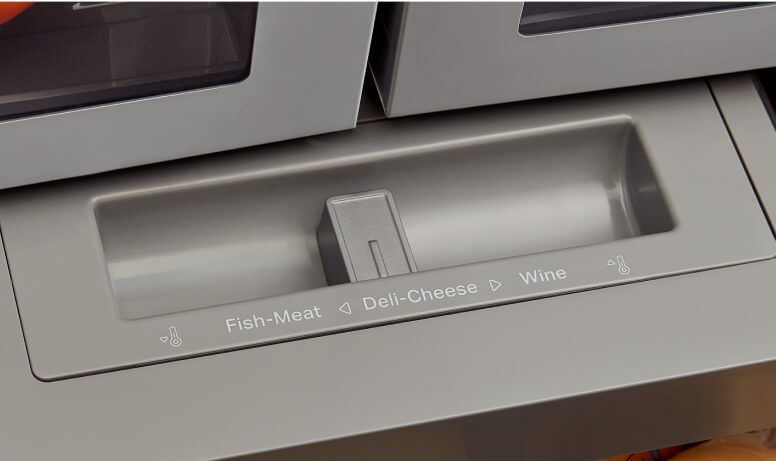

The controls and settings on the FreshChill™ Temperature Controlled Drawer. The controls and settings on the FreshChill™ Temperature Controlled Drawer.

®/™ ©2023 KitchenAid. All rights reserved.

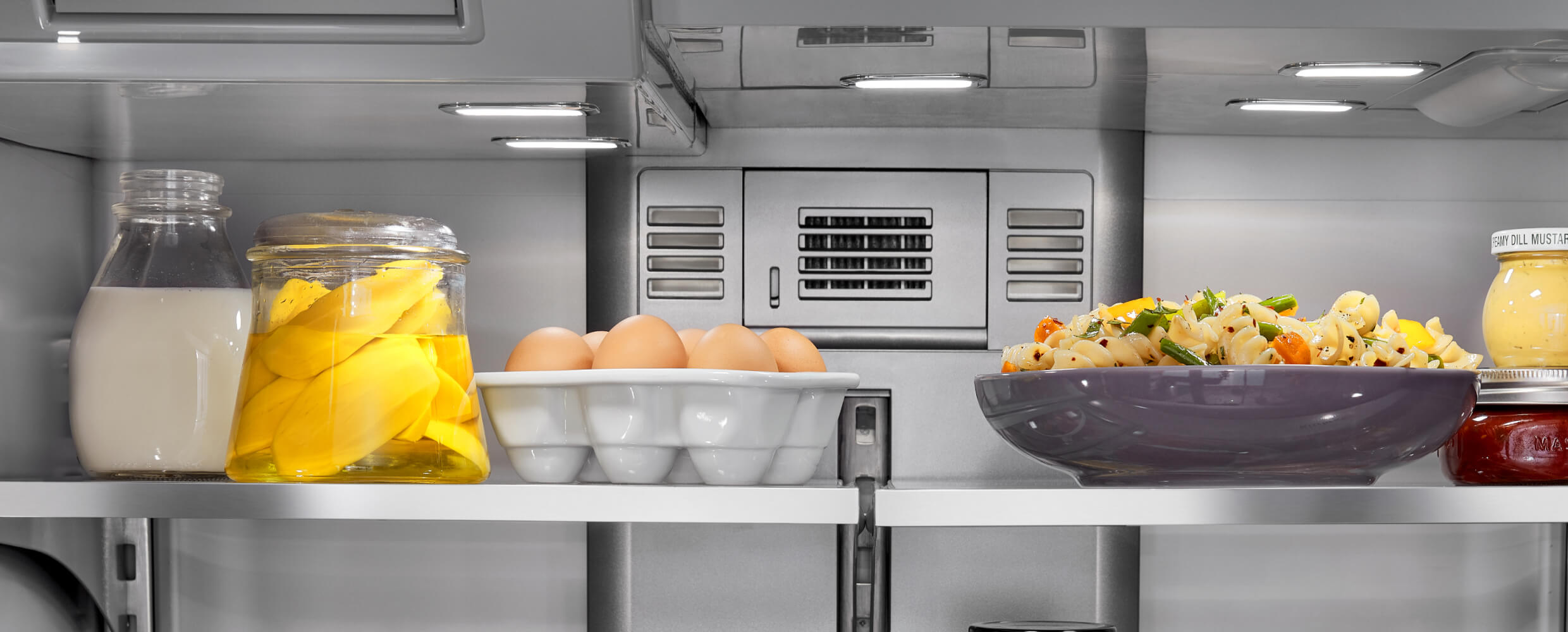

The top shelf of the KitchenAid® French Door Bottom Mount Refrigerator filled with different fresh foods, eggs and milk. The top shelf of the KitchenAid® French Door Bottom Mount Refrigerator filled with different fresh foods, eggs and milk.

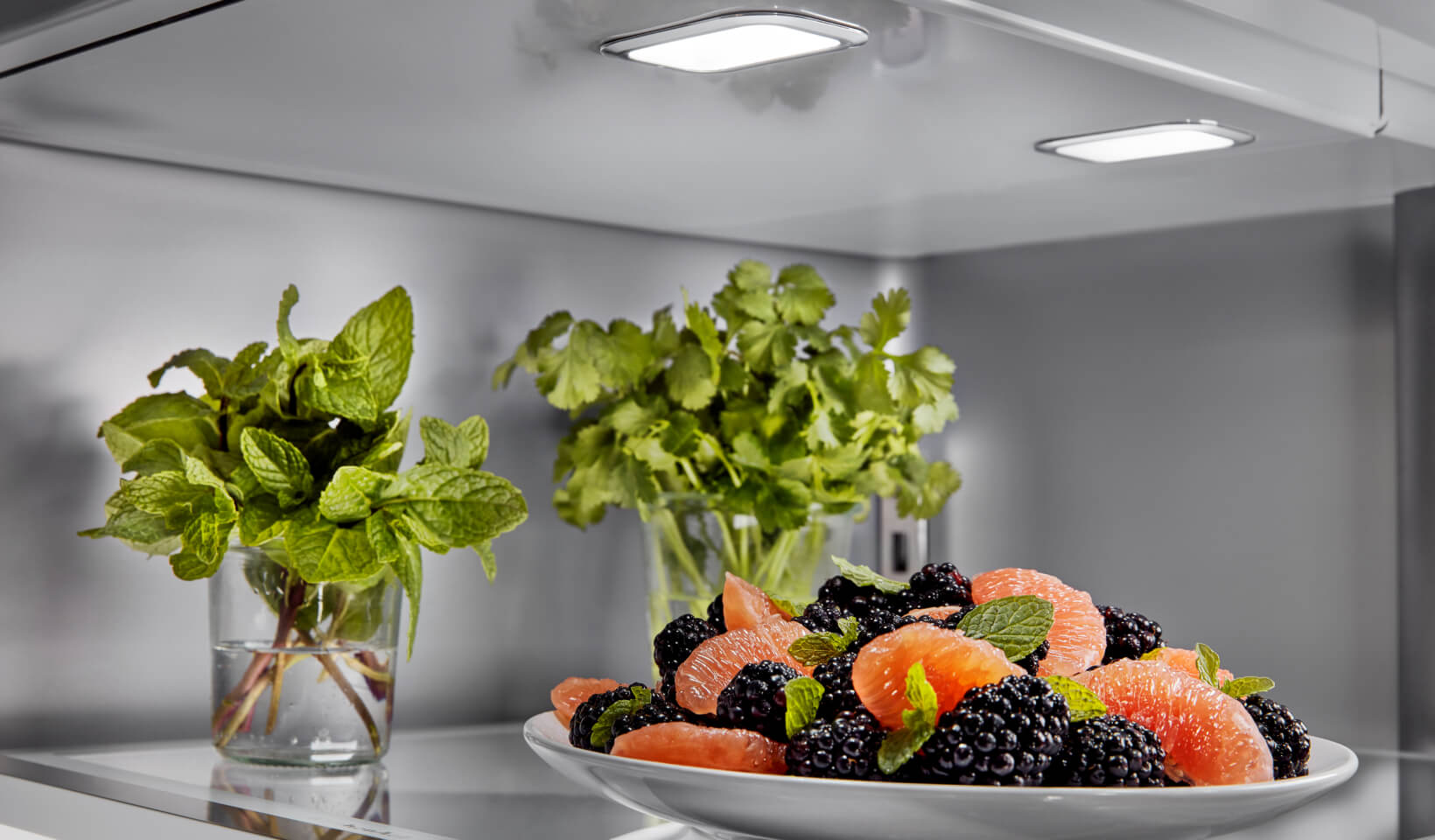

The top shelf of a KitchenAid® French Door Bottom Mount Refrigerator filled with fresh fruit and herbs. The top shelf of a KitchenAid® French Door Bottom Mount Refrigerator filled with fresh fruit and herbs.

EXTENDFRESH™ TEMPERATURE MANAGEMENT SYSTEM

SENSORS CONTINUOUSLY MONITOR AIRFLOW BETWEEN REFRIGERATOR AND FREEZER AND ADJUST TEMPERATURES ACCORDINGLY

A fully loaded KitchenAid® French Door Bottom Mount Refrigerator with the doors and drawers open. A fully loaded KitchenAid® French Door Bottom Mount Refrigerator with the doors and drawers open.

HELP KEEP INGREDIENTS FRESH AND TEMPERATURES IDEAL

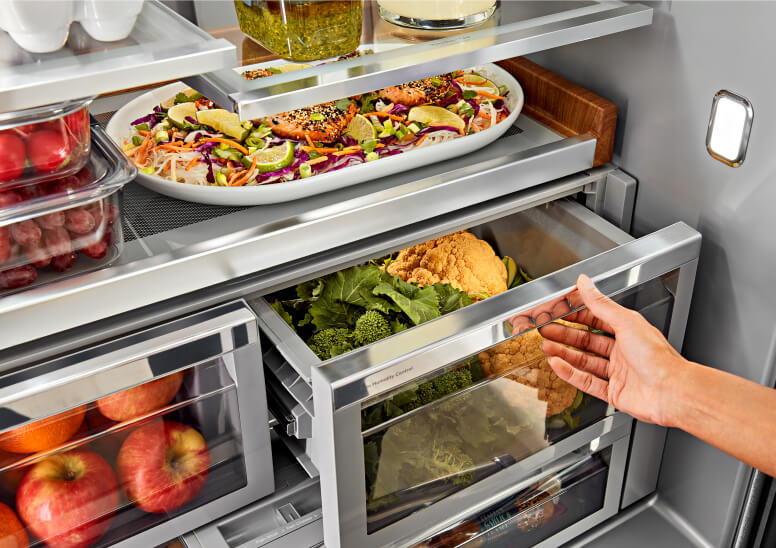

A person opening a fully stocked produce drawer in the KitchenAid® French Door Bottom Mount Refrigerator. A person opening a fully stocked produce drawer in the KitchenAid® French Door Bottom Mount Refrigerator.

®/™ ©2023 KitchenAid. All rights reserved.

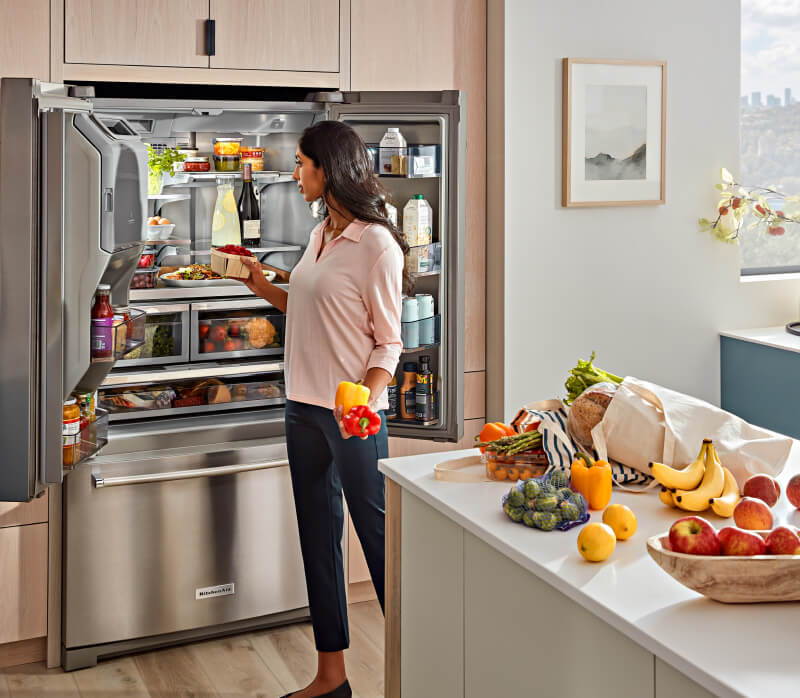

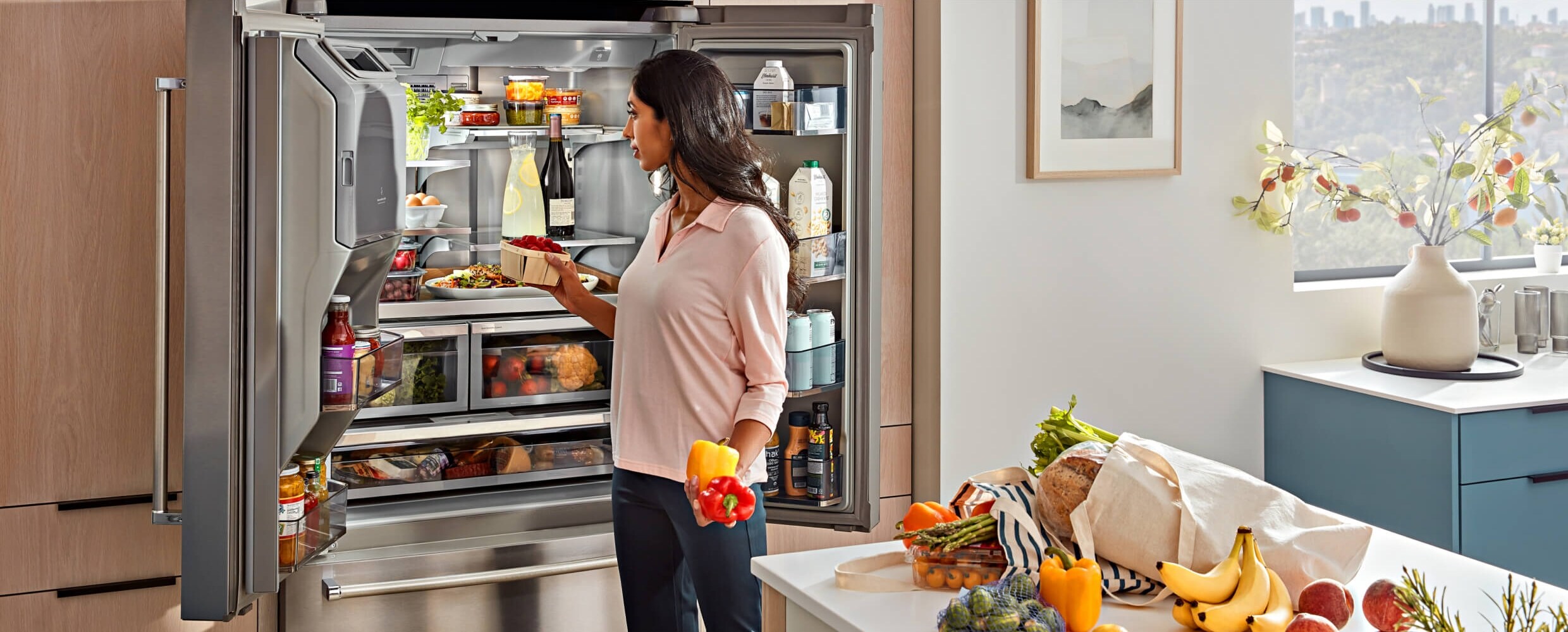

KitchenAid® French Door Bottom Mount Refrigerator actively being loaded. KitchenAid® French Door Bottom Mount Refrigerator actively being loaded.

LOADING THE REFRIGERATOR

COOL FOR 24 HOURS
BEFORE ADDING FOOD

Ensure REFRIGERATOR temperature is set to 37°F (3°C)

Ensure FREEZER temperature is set to 0°F (-18°C)

®/™ ©2023 KitchenAid. All rights reserved.

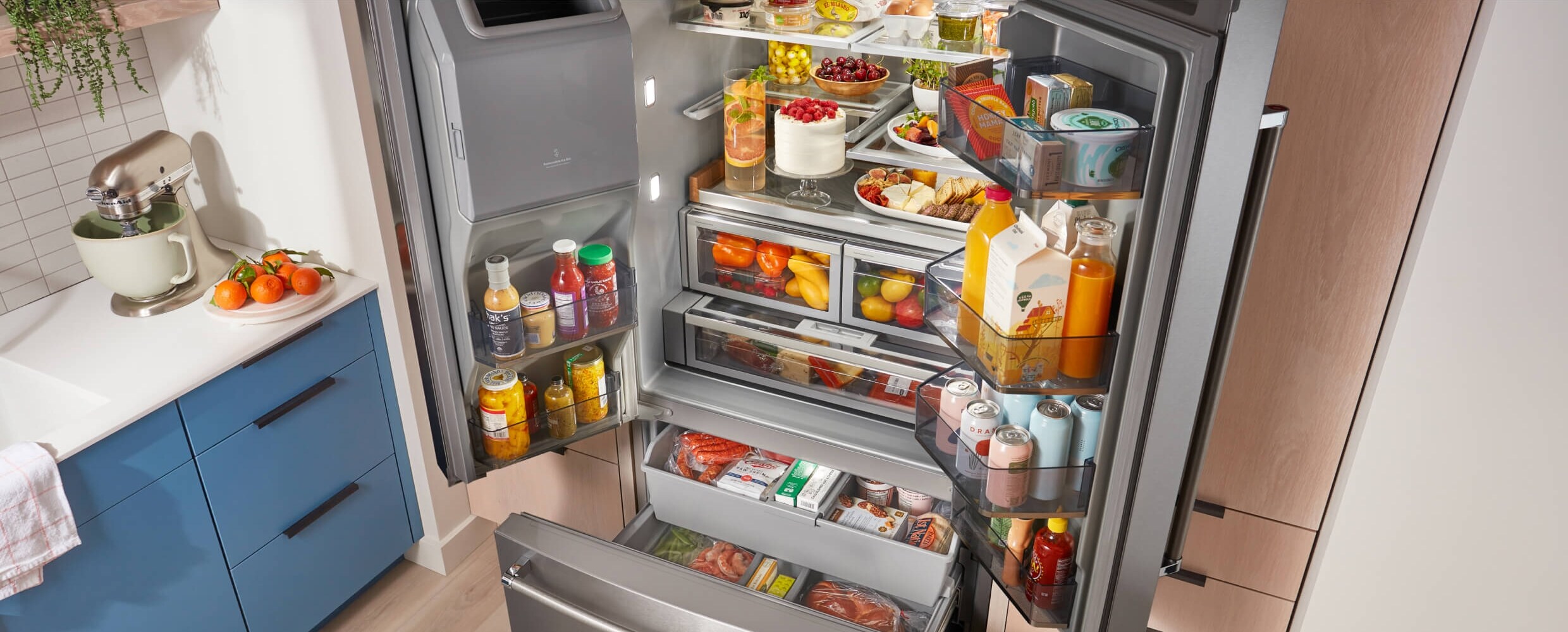

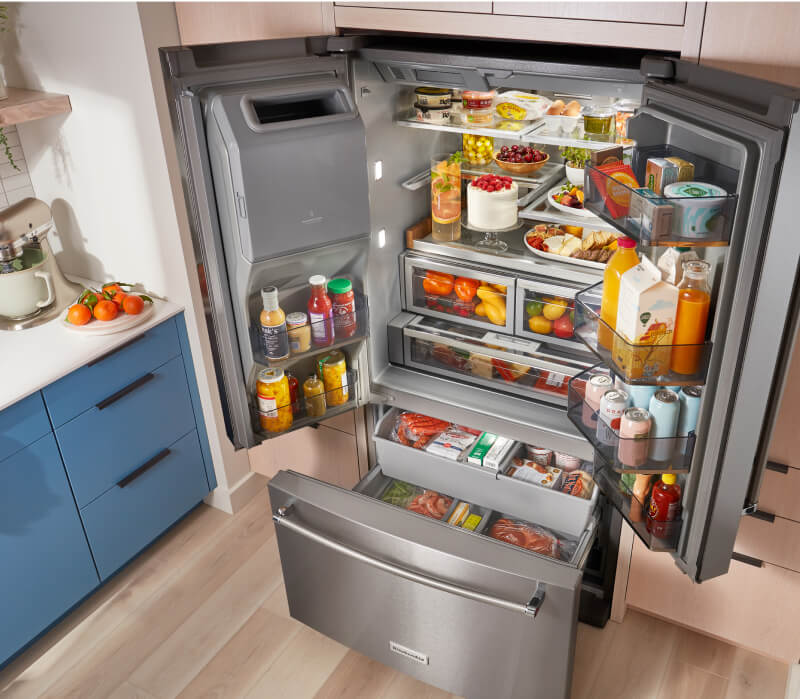

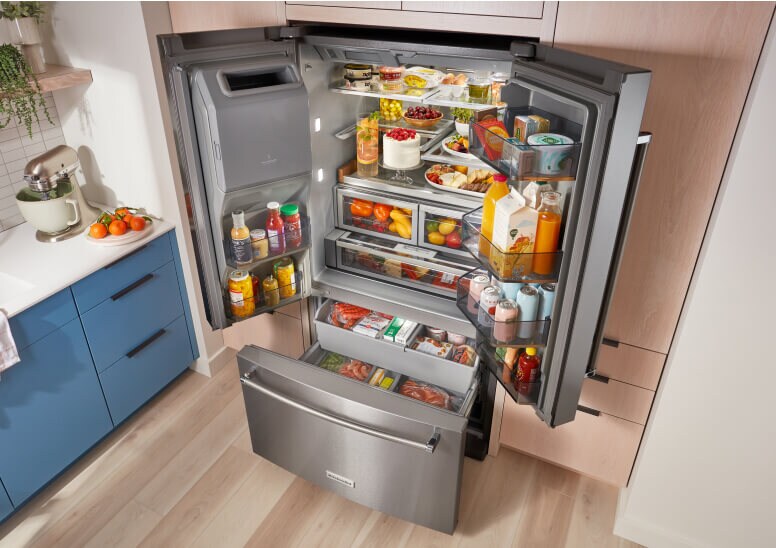

A fully loaded KitchenAid® French Door Bottom Mount Refrigerator with the doors and drawers open. A fully loaded KitchenAid® French Door Bottom Mount Refrigerator with the doors and drawers open.

COOLING ON/OFF

COOLING OFF

Press and hold both LOCK and MEASURED FILL for 3 seconds

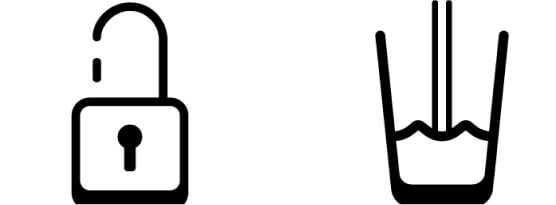

A lock icon and measured water fill icon. A lock icon and measured water fill icon.

COOLING ON

Press and hold both LOCK and MEASURED FILL for 3 seconds

A lock icon and measured water fill icon. A lock icon and measured water fill icon.

®/™ ©2023 KitchenAid. All rights reserved.

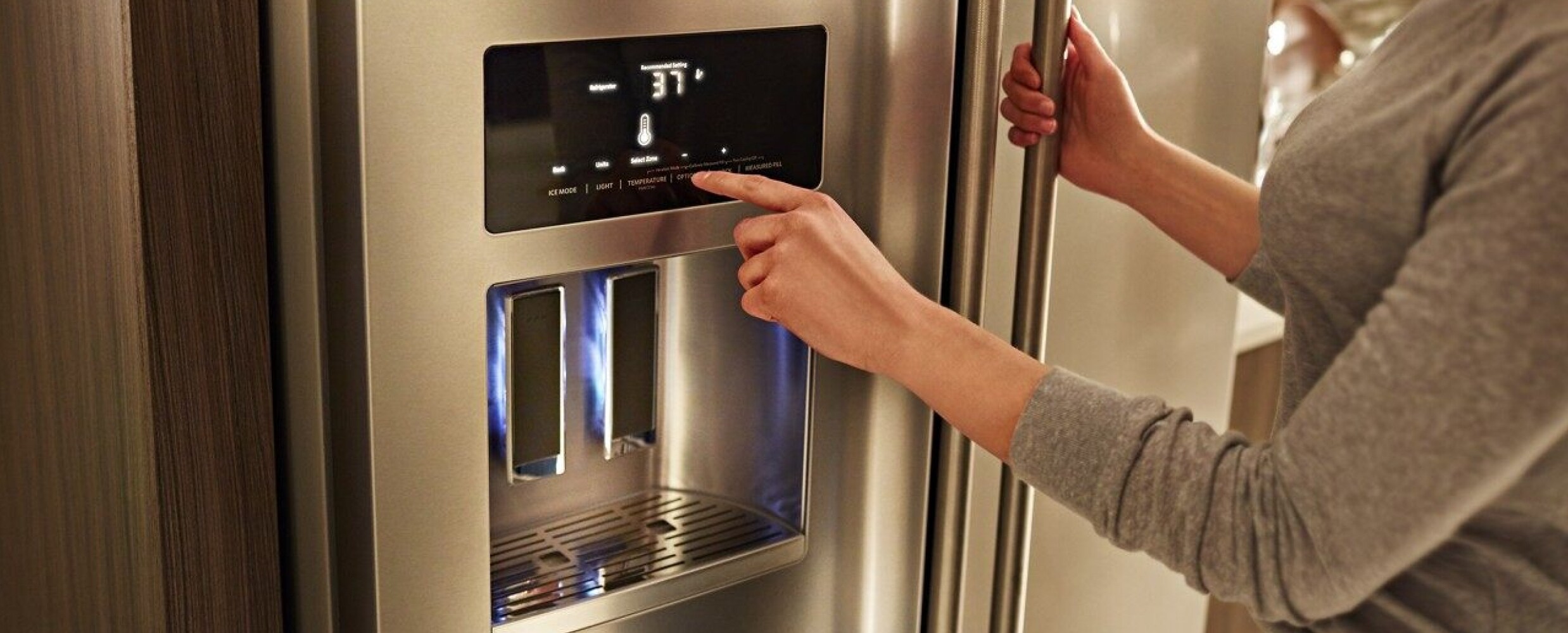

A person engaging with the touchscreen controls on the KitchenAid® French Door Bottom Mount Refrigerator. A person engaging with the touchscreen controls on the KitchenAid® French Door Bottom Mount Refrigerator.
video-poster

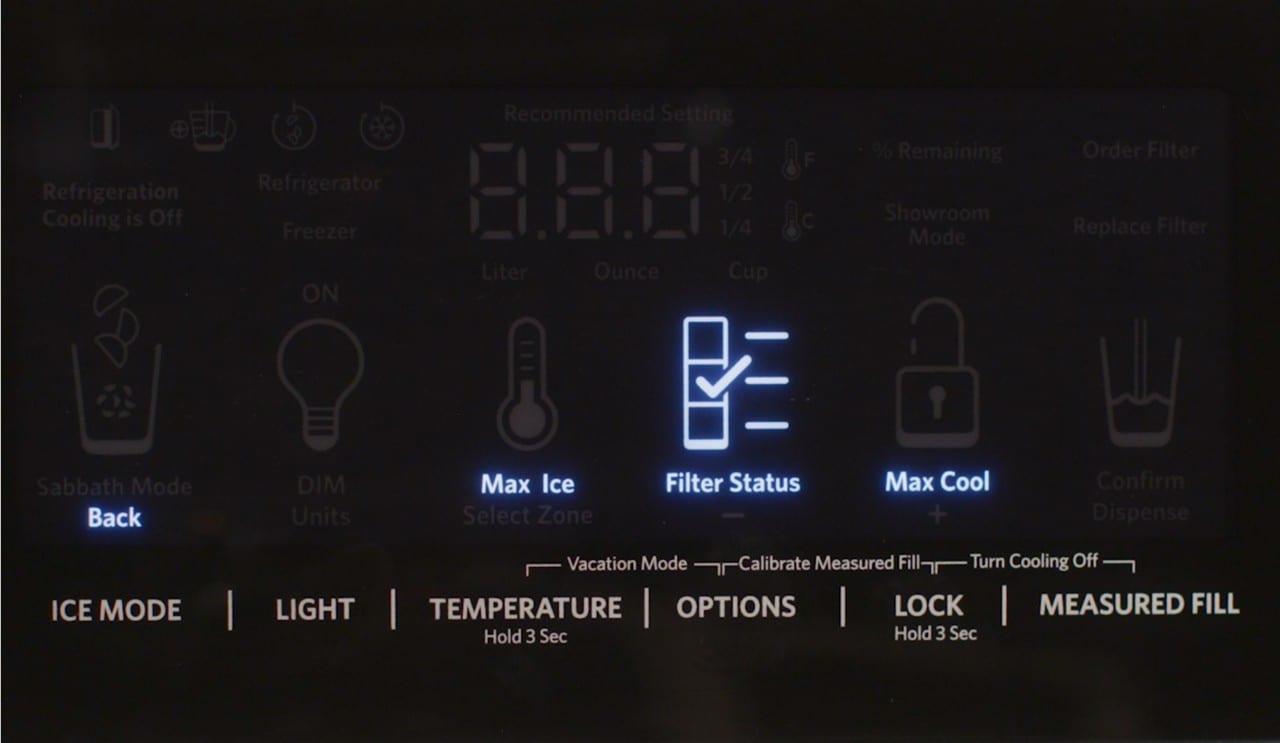

BASIC CONTROLS

All OPTIONS functions are off by default

OPEN OPTIONS MENU

Press the OPTIONS button to open the Options menu and select among the MAX ICE, FILTER STATUS and MAX COOL features

Press ICE/WATER under BACK for Home screen

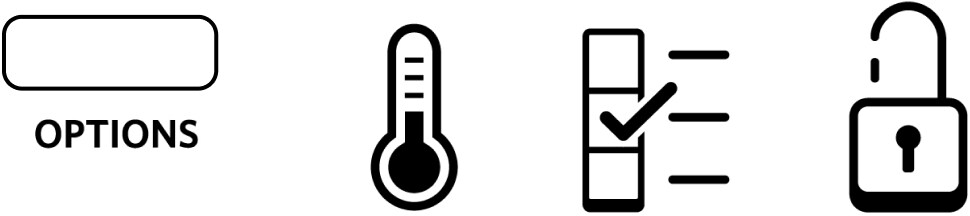

An options icon, temperature gauge icon, filter status icon and lock icon. An options icon, temperature gauge icon, filter status icon and lock icon.

SET CELSIUS / FAHRENHEIT

Press and hold TEMPERATURE for 3 seconds for menu

Press LIGHT to switch between Celsius and Fahrenheit

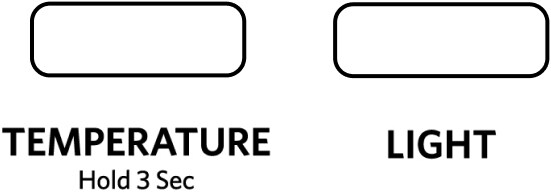

A line drawing of the Temperature Control and the Light Control. A line drawing of the Temperature Control and the Light Control.

CHANGE TEMPERATURE

Press and hold TEMPERATURE for 3 seconds

Press TEMPERATURE to toggle between Fridge and Freezer

A line drawing of the Temperature Control. A line drawing of the Temperature Control.

®/™ ©2023 KitchenAid. All rights reserved.

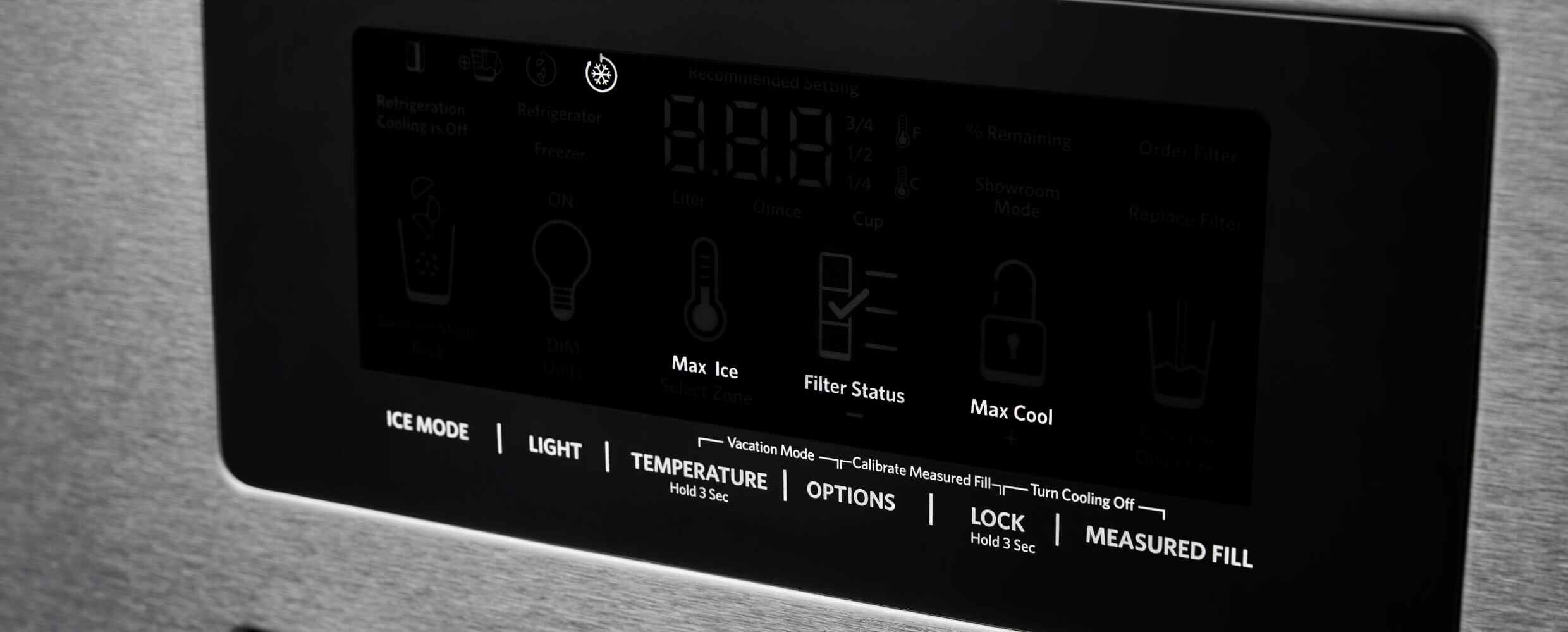

An illuminated Max Cool button on the KitchenAid® French Door Bottom Mount Refrigerator An illuminated Max Cool button on the KitchenAid® French Door Bottom Mount Refrigerator

MAX COOL

Helps chill recently loaded groceries by setting the refrigerator compartment
to the lowest temperature level for up to 24 hours

TURN ON MAX COOL

Press OPTIONS for menu, then press LOCK under Max Cool

A line drawing of the Options Control and the Lock Control. A line drawing of the Options Control and the Lock Control.

MANUALLY TURN OFF MAX COOL

Press OPTIONS then press LOCK under Max Cool again

A line drawing of the Options Control and the Lock Control. A line drawing of the Options Control and the Lock Control.

®/™ ©2023 KitchenAid. All rights reserved.

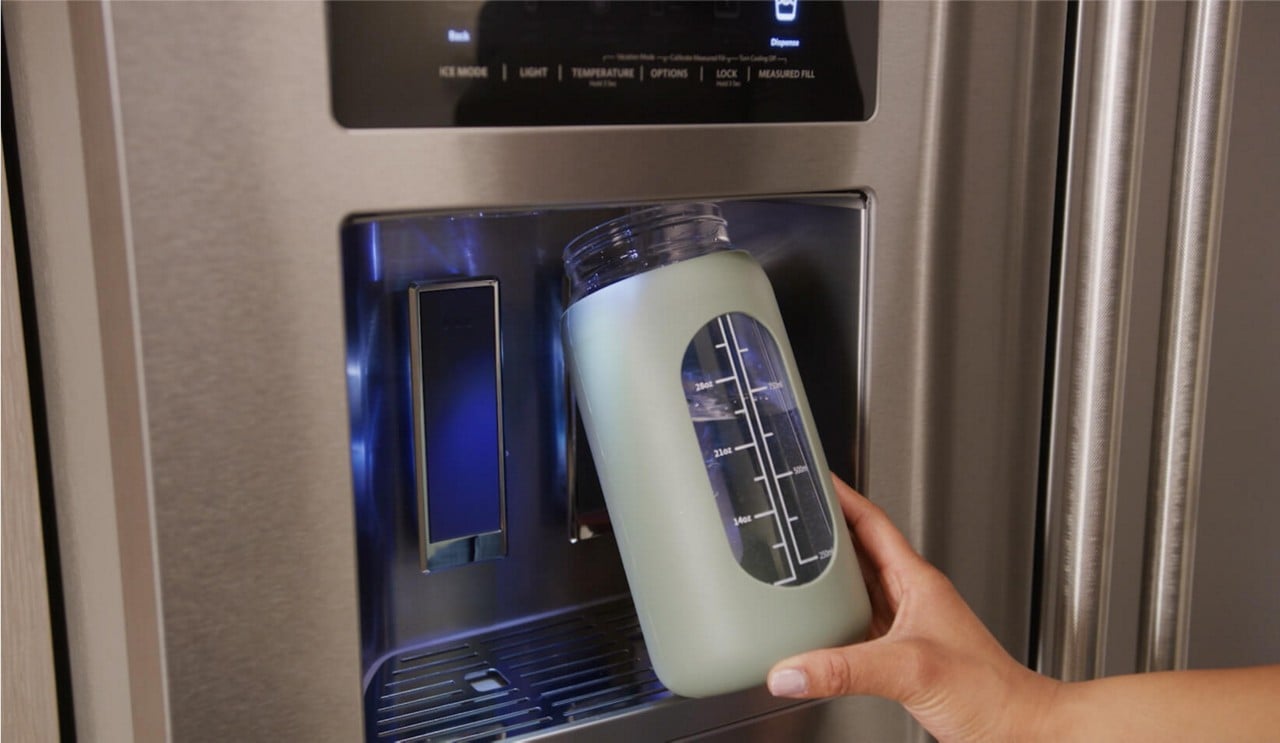

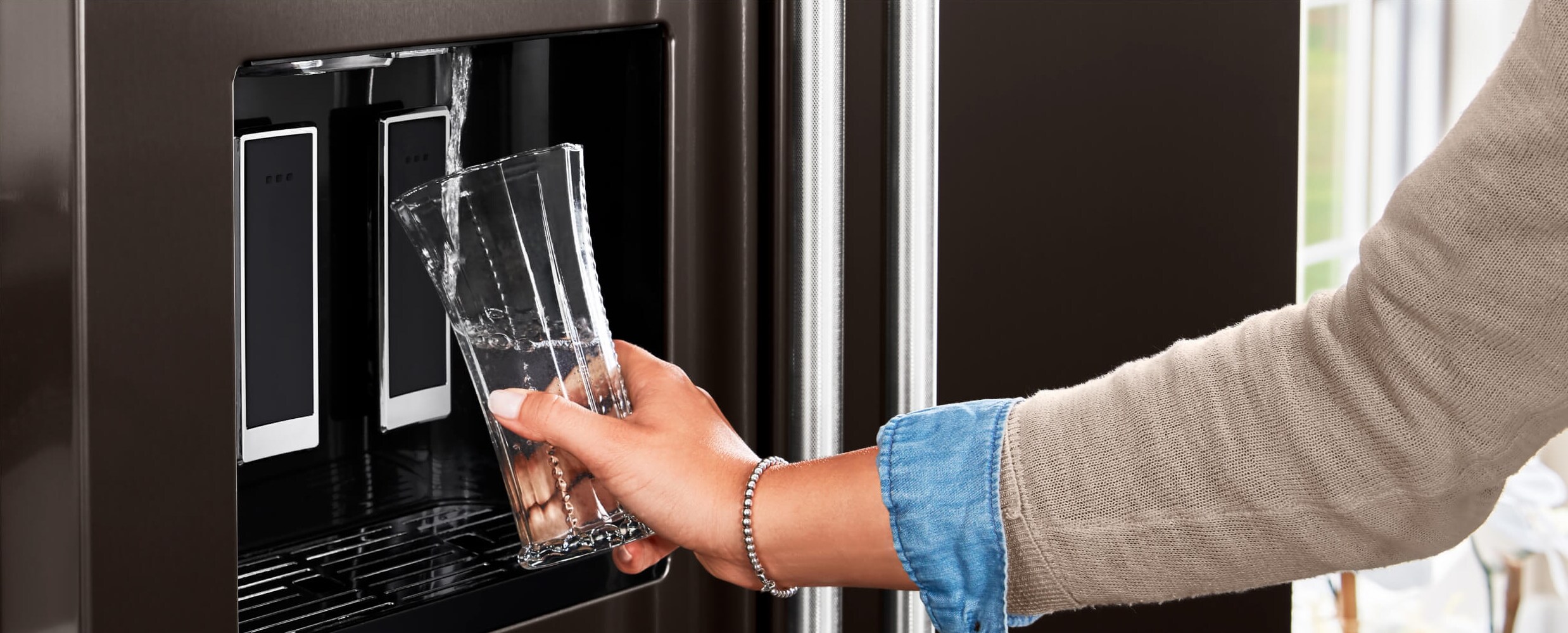

A person filling water from an external dispenser of the KitchenAid® French Door Bottom Mount Refrigerator. A person filling water from an external dispenser of the KitchenAid® French Door Bottom Mount Refrigerator.
video-poster

MEASURED WATER FILL

Dispenses the exact amount of filtered water needed for recipes

PRESS MEASURED FILL

The Measured Water Fill button on the refrigerator controls. The Measured Water Fill button on the refrigerator controls.

SELECT UNITS USING BACK, “-” OR “+” FOR AMOUNT

The 'back', 'minus' and 'plus' buttons on the refrigerator controls. The 'back', 'minus' and 'plus' buttons on the refrigerator controls.

PRESS DISPENSE

A measured water fill icon. A measured water fill icon.

TO EXIT MENU PRESS BACK

The 'back' button on the refrigerator controls. The 'back' button on the refrigerator controls.

®/™ ©2023 KitchenAid. All rights reserved.

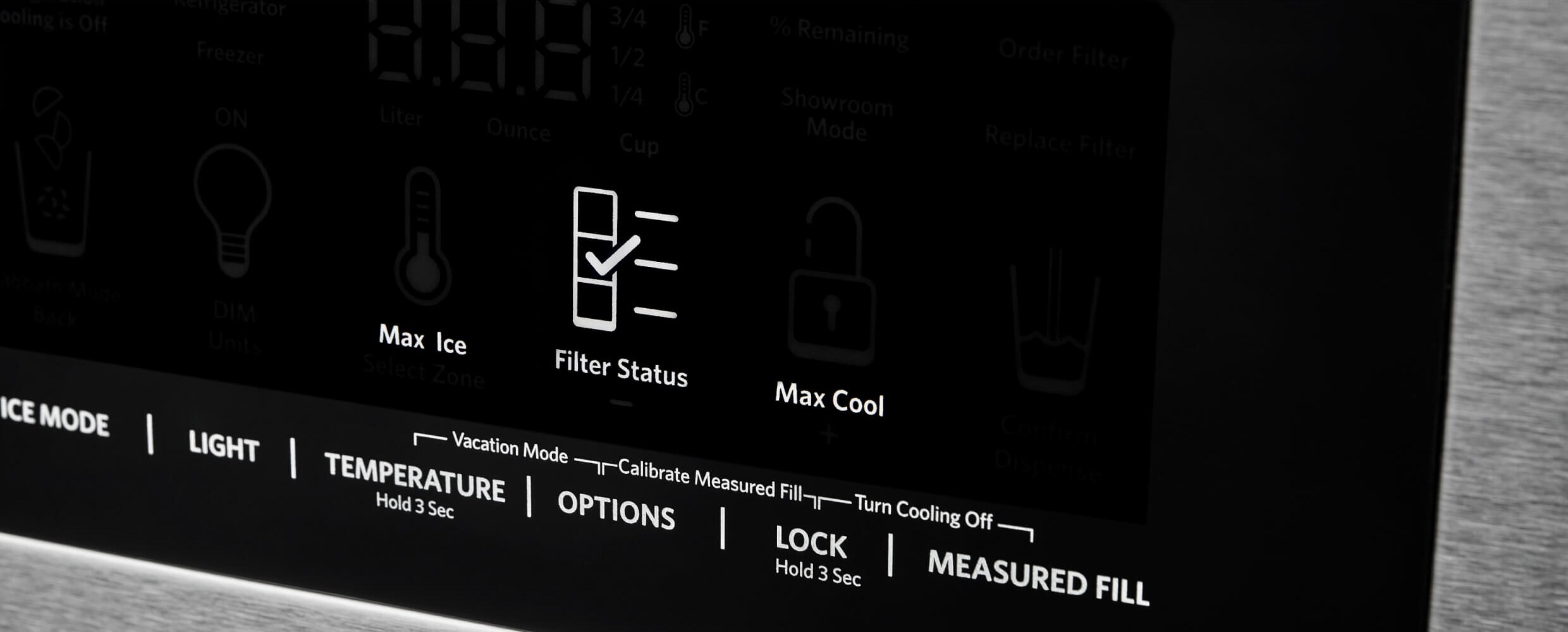

An illuminated Filter Status button on the KitchenAid® French Door Bottom Mount Refrigerator. An illuminated Filter Status button on the KitchenAid® French Door Bottom Mount Refrigerator.
video-poster

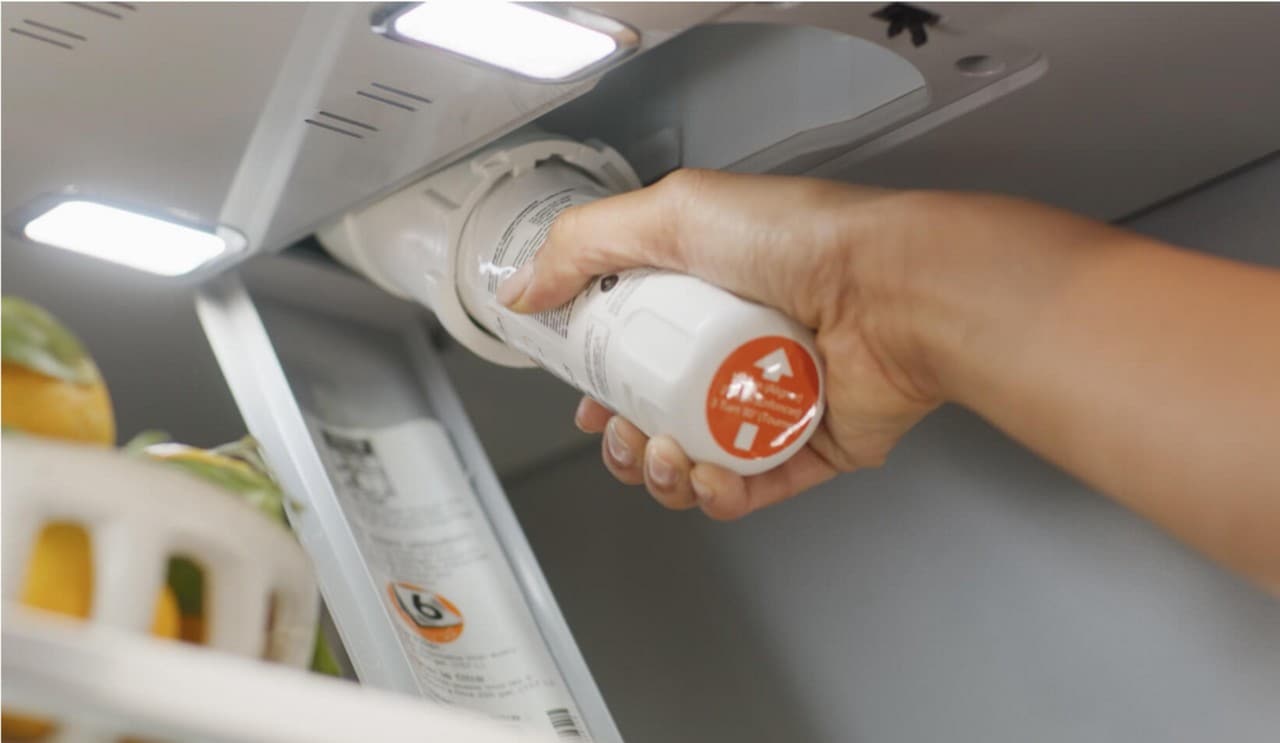

CHANGE THE WATER FILTER

Replace the water filter every 6 months, or when your control panel shows the REPLACE FILTER icon

WHAT YOU’LL NEED

• KitchenAid™ water filter (KAD2RXD1) or everydrop® water filter (EDR2RXD1)
• Dishcloth for drips

Shop water filters

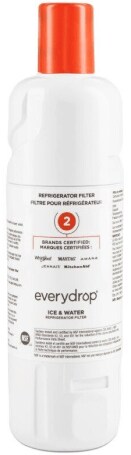

A bottle of an everydrop® ice and water filter. A bottle of an everydrop® ice and water filter.

LOCATION OF FILTER

Top right of refrigerator section

WATER FILTER STATUS LIGHTS

Press OPTIONS on the control panel to launch the Options menu

Press OPTIONS again to see percentage of filter life remaining

Press BACK, to return to the Normal screen

Yellow light means it’s time to order a new water filter (KAD2RXD1)
Red light means it’s time to replace it

The Option button on the refrigerator controls. The Option button on the refrigerator controls.

CHANGE WATER FILTER (KITCHENAID™ FILTER KAD2RXD1)

Push on front of filter compartment to pop it open

Turn filter counterclockwise and pull straight out

Align new filter with notches on compartment

Gently insert and turn clockwise until it stops turning

To close, raise front of compartment door until it clicks

The '% Remaining' indicator on the refrigerator controls. The '% Remaining' indicator on the refrigerator controls.

RESET FILTER RESET LIGHT

Water filter status tracking automatically resets when filter compartment door is closed

®/™ ©2023 KitchenAid. All rights reserved.

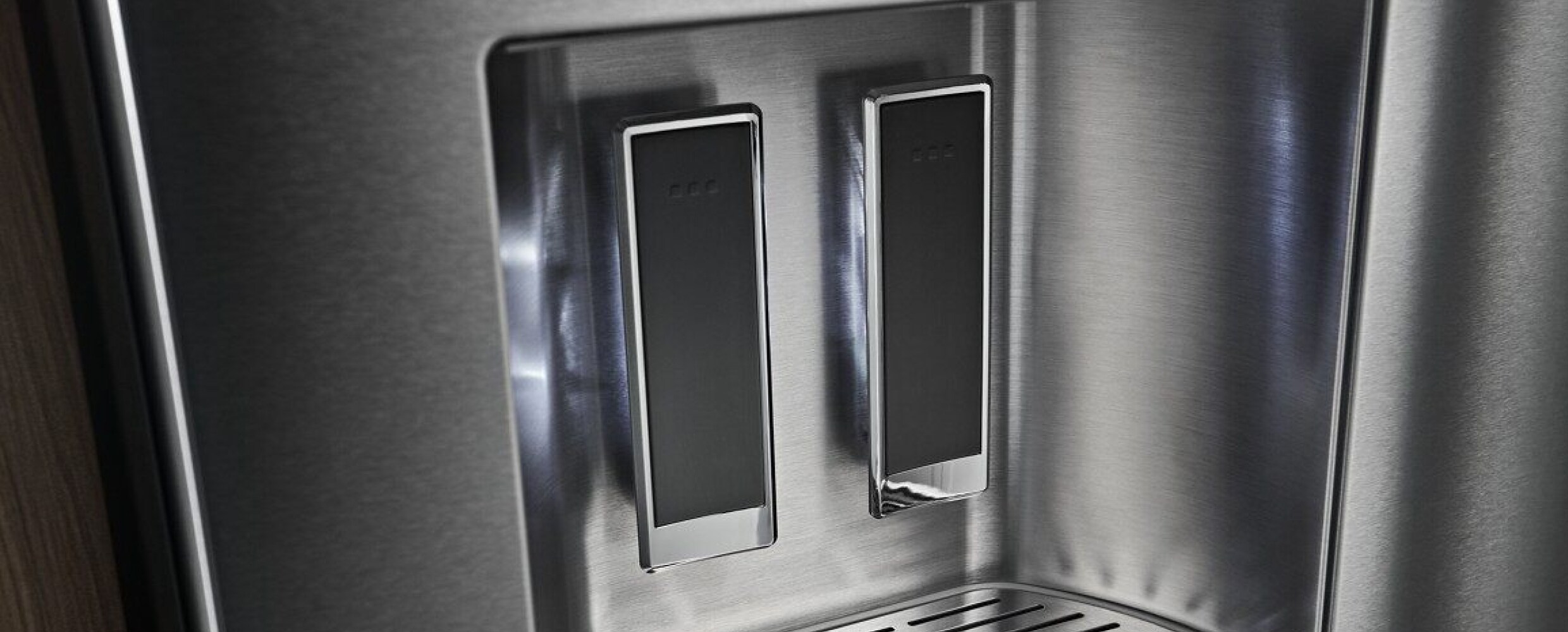

External water dispenser illuminated on the KitchenAid® French Door Bottom Mount Refrigerator. External water dispenser illuminated on the KitchenAid® French Door Bottom Mount Refrigerator.

DISPENSER LIGHT

Dispenser lights are LEDs that cannot be changed. If dispenser lights aren't working, see online “Troubleshooting” for more information.

USING THE DISPENSER TURNS ON LIGHTS AUTOMATICALLY.

OR, PRESS LIGHT TO TOGGLE THROUGH:
OFF (DEFAULT)
ON
DIM: LIT AT 50% BRIGHTNESS

The Option button on the refrigerator controls. The Option button on the refrigerator controls.

®/™ ©2023 KitchenAid. All rights reserved.

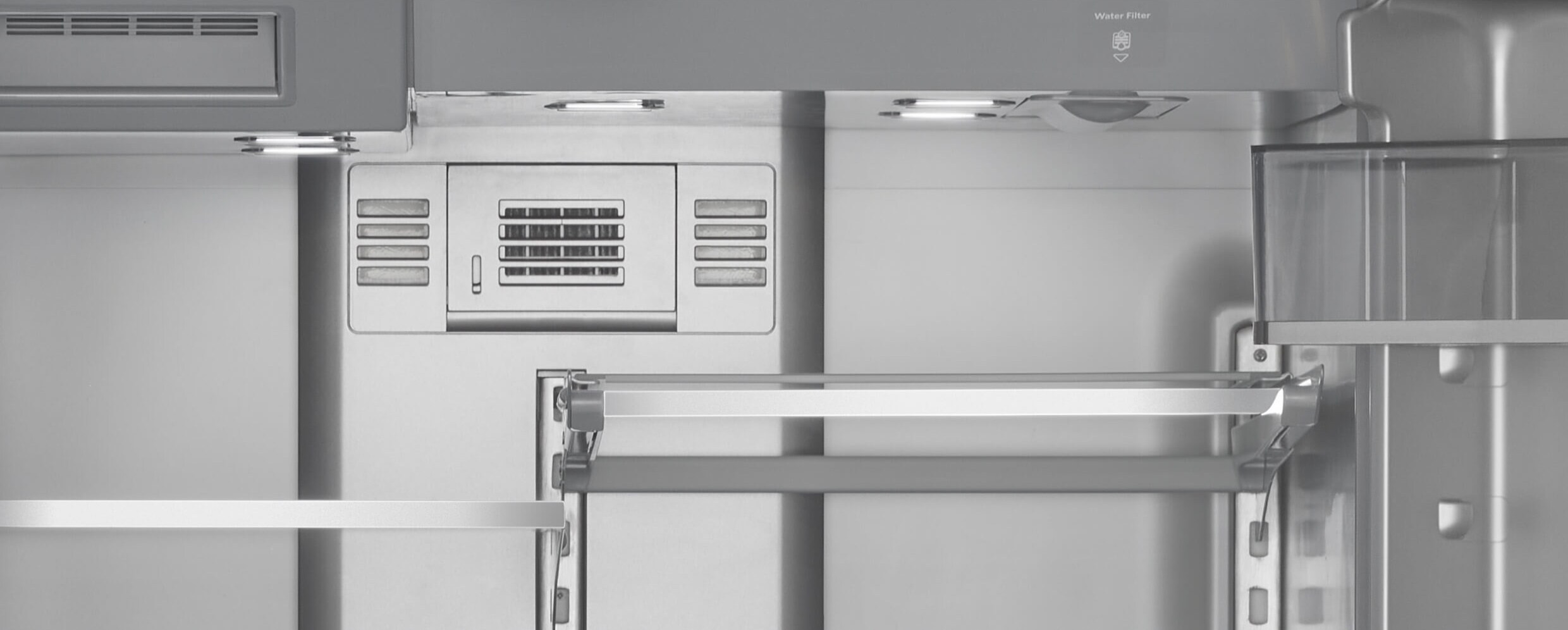

FreshFlow™ Water filter holder in the interior of the KitchenAid® French Door Bottom Mount Refrigerator. FreshFlow™ Water filter holder in the interior of the KitchenAid® French Door Bottom Mount Refrigerator.
video-poster

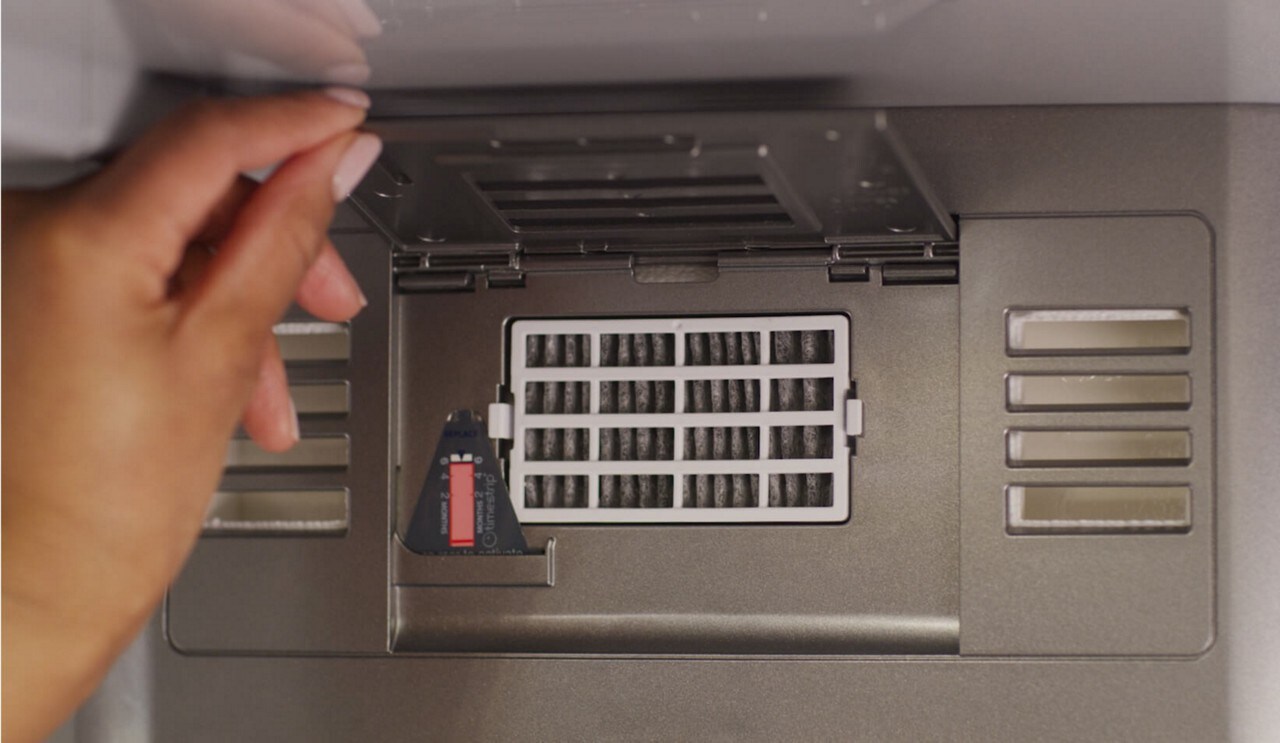

CHANGE THE FRESHFLOW™ AIR FILTER

The FreshFlow™ Air Filter reduces common food odors and is 15 times more powerful than baking soda

Replace it every 6 months

WHAT YOU’LL NEED

• New FreshFlow™ Air Filter (W10311524)

SHOP FRESHFLOW™ FILTERS

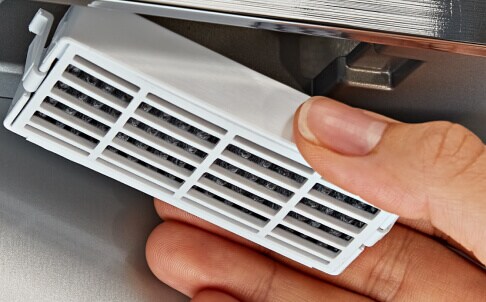

SQUEEZE SIDES OF EXPIRED FRESHFLOW™ AIR FILTER TO PULL OUT

Removing expired FreshFlow™ Air Filter Removing expired FreshFlow™ Air Filter

DISCARD EXPIRED FILTER

Throwing away expired FreshFlow™ Air Filter Throwing away expired FreshFlow™ Air Filter

SNAP NEW FRESHFLOW™ AIR FILTER INTO PLACE

Placing new FreshFlow™ Air Filter Placing new FreshFlow™ Air Filter

®/™ ©2023 KitchenAid. All rights reserved.

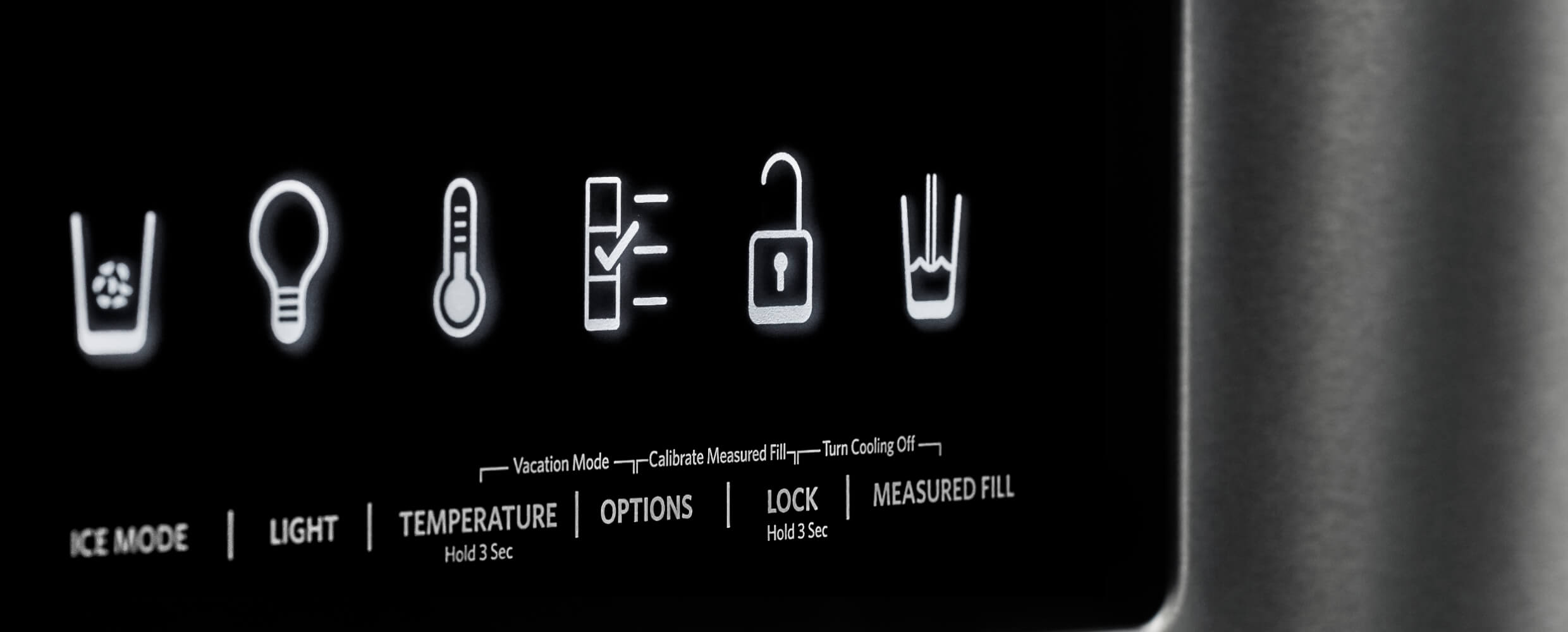

Dispenser Lock is illuminated on the control panel of the KitchenAid® French Door Bottom Mount Refrigerator. Dispenser Lock is illuminated on the control panel of the KitchenAid® French Door Bottom Mount Refrigerator.

DISPENSER LOCK

Turns off your control panel for easy cleaning

TURN CONTROL LOCK ON

Press and hold LOCK for 3 seconds

The Lock button on the refrigerator controls. The Lock button on the refrigerator controls.

TURN CONTROL LOCK OFF

Press and hold LOCK for 3 seconds

The Lock button on the refrigerator controls. The Lock button on the refrigerator controls.

®/™ ©2023 KitchenAid. All rights reserved.

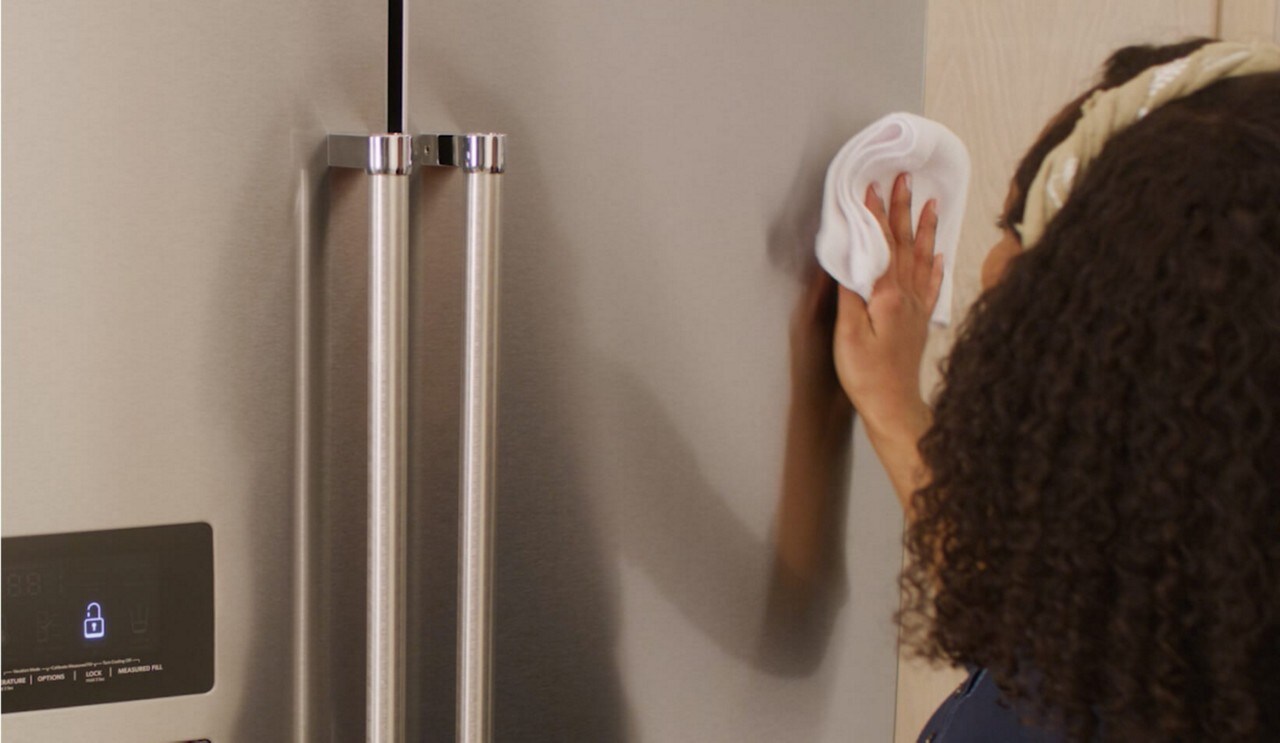

A person using a soft cloth to wipe the exterior of the KitchenAid® French Door Bottom Mount Refrigerator. A person using a soft cloth to wipe the exterior of the KitchenAid® French Door Bottom Mount Refrigerator.

SELECT EXTERIOR FINISH

video-poster--ss

WHAT YOU’LL NEED

• Soft cloth & affresh® Stainless Steel cleaner
OR
• Sponge & mild detergent in warm water

AVOID: Harsh chemicals, abrasive materials and cleaners with chlorine

SHOP AFFRESH® STAINLESS STEEL CLEANING SPRAY

PRESS AND HOLD THE LOCK BUTTON FOR 3 SECONDS TO TURN THE DISPENSER OFF

A lock icon. A lock icon.

USE APPROVED CLEANER OF CHOICE AND WIPE IN DIRECTION OF THE GRAIN

Rinsing a sponge Rinsing a sponge

DRY THOROUGHLY WITH SOFT CLOTH

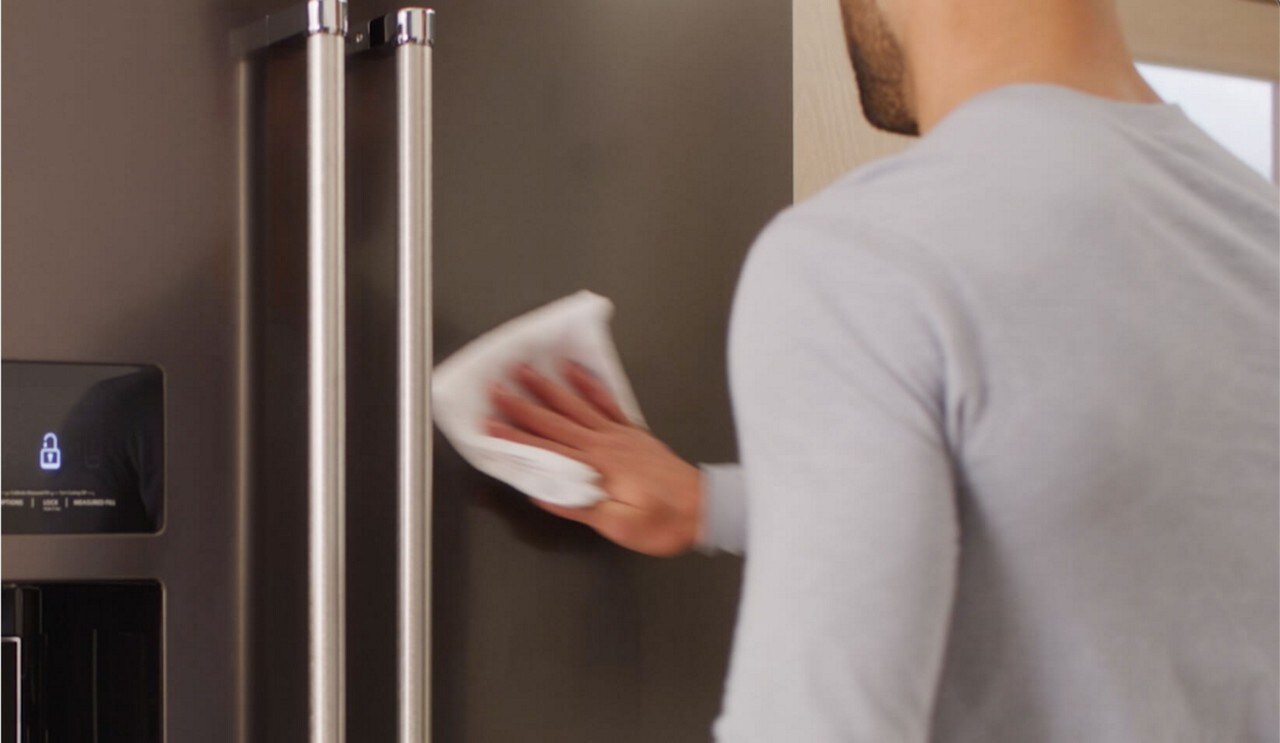

A person using a soft cloth to wipe the exterior of the KitchenAid® French Door Bottom Mount Refrigerator. A person using a soft cloth to wipe the exterior of the KitchenAid® French Door Bottom Mount Refrigerator.
video-poster--bs

WHAT YOU’LL NEED

• Clean sponge or soft cloth
• Mild detergent in warm water

AVOID: Harsh chemicals, abrasive materials and cleaners with chlorine

PRESS AND HOLD THE LOCK BUTTON FOR 3 SECONDS TO TURN THE DISPENSER OFF

A lock icon. A lock icon.

HAND WASH WITH SPONGE OR CLOTH AND MILD DETERGENT IN WARM WATER

Rinsing a sponge Rinsing a sponge

DRY THOROUGHLY WITH SOFT CLOTH

A person using a soft cloth to wipe the exterior of the KitchenAid® French Door Bottom Mount Refrigerator. A person using a soft cloth to wipe the exterior of the KitchenAid® French Door Bottom Mount Refrigerator.

®/™ ©2023 KitchenAid. All rights reserved.

A maker rinsing the bins and shelves of their KitchenAid® Refrigerator. A maker rinsing the bins and shelves of their KitchenAid® Refrigerator.

CLEAN THE INTERIOR

WHAT YOU’LL NEED

• Clean sponge or soft cloth
• Mild detergent in warm water
• Baking soda

TURN POWER OFF

Unplug the unit

TAKE OUT ALL REMOVABLE PARTS

• Shelves
• Door bins
• Sliding storage tray
• Drawers
• Ice Bin

Be careful not to bump any of the glass materials while cold or they may shatter

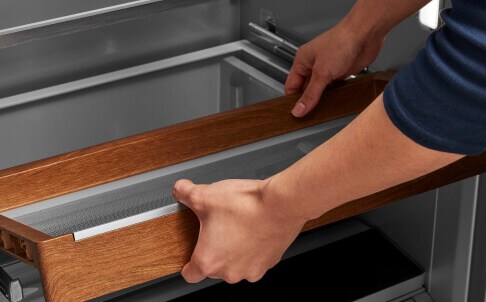

Removing Sliding Storage Tray Removing Sliding Storage Tray

WAIT UNTIL INTERIOR PARTS ARE AT ROOM TEMPERATURE

68º Fahrenheit 68º Fahrenheit

HAND WASH WITH SPONGE OR CLOTH AND MILD DETERGENT IN WARM WATER

Washing glass shelf with warm water Washing glass shelf with warm water

RINSE AND DRY INTERIOR PARTS

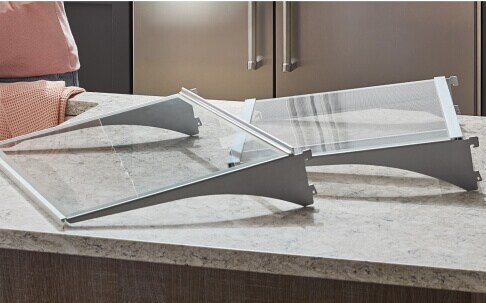

Parts laying out to dry on counter Parts laying out to dry on counter

HAND WASH FRIDGE INTERIOR WITH WARM WATER & BAKING SODA MIXTURE

2 tbs baking soda to 1 qt of water

Rinsing a sponge Rinsing a sponge

REPLACE INTERIOR PARTS

Replacing Sliding Storage Tray Replacing Sliding Storage Tray

TURN POWER ON

Plug unit back in
