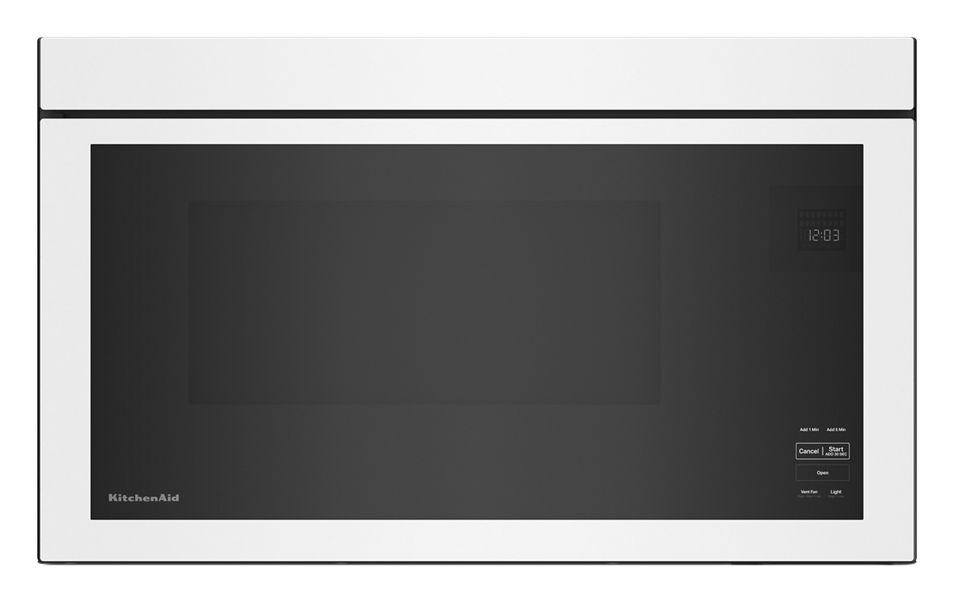

Over-The-Range Microwave with Flush Built-In Design

Model: KMMF330PWH

Model: KMMF330PWH

Appliance Color

White

White with Matching Hardware

Additional Hardware Kit
Personalize your appliance with optional handle and knob accessory kits.
Already have the appliance? Shop Compatible Hardware Kits

Key Features

Offers

OR

Temporarily out of stock
Provide your ZIP Code to check availability in your area.
Credit Card icon PayPal icon ApplePay icon Affirm icon

Earliest Estimated Standard Delivery (FREE) :

Order in the next: Hrs Mins Secs

Select date at Checkout | Deliver to

Earliest Estimated Standard Delivery (FREE) :

Earliest Estimated Express Delivery () :

Order in the next: Hrs Mins Secs

Select date at Checkout | Deliver to

Additional services

Select these at checkout
Delivery Services Learn More
Protection Plan (Optional)
Whirlpool Appliance Care service plans are provided by Domestic & General USA Services LLC. However, in Florida and Washington it is Domestic & General USA Inc. 866-333-3134, 122 South Michigan Avenue, Suite 1390, Chicago, IL 60603. Whirlpool Corporation and Domestic & General are independent corporations and not part of the same group. Domestic & General’s use of Whirlpool Corporation’s trademarks is with permission. The plans are service contracts and not insurance. Protection Plan Benefits include:
  • If We Can’t Fix It, We Replace It with a Brand New One
  • Protection planBreakdown Protection If Your Appliance Stops Working
  • No Out of Pocket Repair Costs
  • Serviced by our Network of Factory Certified Technicians
  • Factory Certified Parts
Flexible Appliance Protection Plans, offered by Domestic & General Terms and Conditions
Limited Standard Warranty - Included,
Compatible Accessories
Frequently bought together
15" Flush Installation Microwave Bump Out Mounting Kit
15" Flush Installation Microwave Bump Out Mounting Kit
Microwave Hood Combination Grease Filter for Models GMH3204XVQ/GMH6185XVQ
Microwave Hood Combination Grease Filter for Models GMH3204XVQ/GMH6185XVQ

Overview

Over-The-Range Microwave with Flush Built-In Design

KitchenAid® Over-The-Range Microwave with Flush Built-In Design fits evenly with cabinets to give your kitchen a seamless look and feel, with a turntable-free interior that can heat multiple items at a time.*

*when installed in standard cabinet depth of 12 ¾”.

Features

Turntable-free design

Skip the cramming and crowding—a turntable-free design allows corner-to-corner cooking so you can prepare multiple dishes at once for more cooking and quick cleanup.

Sensor Functions

Additional Features

Built-in Design*

Fits evenly with your cabinets to give your kitchen a seamless look.*

1.1 Cu. Ft. Capacity

Provides room to heat multiple dishes at once, complementing your oven as an additional cooking space.

Steam Clean

Uses the power of steam and added water to help release spills so they can be easily wiped away.

3-Speed 400 CFM Motor Class* Ventilation System *Peak Performance varies based on installation. Resources available at AHAM.org

Powerful 400 CFM motor helps clear the air of smoke, grease and odors from the cooktop below. Choose low, medium or high speed to match your cooking needs.

Grease Filters

Help remove the grease of high-heat cooking.

Cookshield Finish

Makes it easy to wipe the interior of the microwave clean with a soft, damp cloth.

Wattage - 1000

Get quick cooking with 1000-watt cooking power

LED Light

Brightens up your cooking space and illuminates the cooktop below.

Keep Warm Function

Uses low heat to keep food at serving temperature, allowing you to focus on other steps in your creative process or finish one dish while another rests.

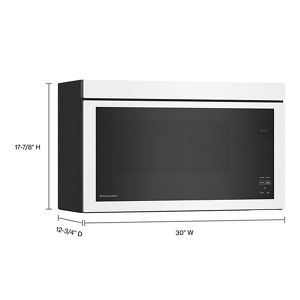

Specifications

Height:
17-7/8 inches
17-7/8 in
Width:
30 inches
30 in
Depth:
12-3/4 inches
12-3/4 in
Download Specs Sheet
Download Dimension Guide

Certifications

Prop 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

UL

Yes

Microwave Details

Door Release

Touch to Open

Grill

No

Microwave Interior Light

LED

Sensor Cooking

Yes

Ventilation Details

Blower Type

Centrifugal

CFM Motor Class

400

Duct Direction

Vertical or Horizontal

Duct Outlet Size

3.25 W x 10 H in

Duct Type

Rectangular

Fan Speed Indicator

Yes

Filters

Charcoal Recirculating Filter

Night Light

Yes

Vent Fan Location

Back

Ventilation Type

Updraft

Venting

Exterior or Recirculating

Dimensions

Cutout Depth Max

13 in

Cutout Depth Min

12-3/4 in

Depth

12-3/4 in

Depth Closed Excluding Handles

12-3/4 in

Depth Closed Including Handles

12-3/4 in

Depth Excluding Doors

12-3/4 in

Depth With Door Open 90 Degree

41-1/2 in

Gross Weight

64-3/5 lbs

Height

17-7/8 in

Interior Depth

11 in

Interior Height

9-1/8 in

Interior Width

18-1/8 in

Net Weight

62 lbs

Width

30 in

Controls

Control Location

Hidden

Control Type

Electronic Touch

Convenience Cooking Controls

Yes

Display Color

White

Electronic Display Type

LCD

Microwave Selections

Add 30 Seconds, Add A Minute, Auto Cook, Beverage, Cook Power, Cook Time, Cook/Start, Defrost, Dinner Plate, End of Cycle Signal, Fresh Vegetable, Frozen Entree, Keep Warm, Off/Cancel, Pizza, Popcorn, Potato, Reheat, Soften/Melt, Sound On/Off, Soup, Steam

Number of Keypads

31

Number of Power Levels

10

Number of Sensor Control Keypads

8

Number of Vent Speeds

3

One Touch Cooking

Yes

Details

Blower Type

Centrifugal

Cavity Finish

Powder Coat

Clock

Yes

Door Opening Direction

Left

Door Release

Touch to Open

Grill

No

Microwave Interior Light

LED

Microwave Type

Over-the-Range

Work Surface Light

LED

Oven Cavity Details

Convection

No

Cooking Power

1,000 w

Exterior Details

Cabinet Color

White

Door Opening Direction

Left

Handle Color

No Handle

Electrical

Power Cord Included

Yes
