36" 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood

Model: KVWC956JSS

Model: KVWC956JSS

Appliance Color

Stainless Steel

Stainless Steel with Matching Hardware

Additional Hardware Kit
Personalize your appliance with optional handle and knob accessory kits.
Already have the appliance? Shop Compatible Hardware Kits

Key Features

Offers

OR

Temporarily out of stock
Provide your ZIP Code to check availability in your area.
Credit Card icon PayPal icon ApplePay icon Affirm icon

Earliest Estimated Standard Delivery (FREE) :

Order in the next: Hrs Mins Secs

Select date at Checkout | Deliver to

Earliest Estimated Standard Delivery (FREE) :

Earliest Estimated Express Delivery () :

Order in the next: Hrs Mins Secs

Select date at Checkout | Deliver to

Additional services

Select these at checkout
Delivery Services Learn More
Protection Plan (Optional)
Whirlpool Appliance Care service plans are provided by Domestic & General USA Services LLC. However, in Florida and Washington it is Domestic & General USA Inc. 866-333-3134, 122 South Michigan Avenue, Suite 1390, Chicago, IL 60603. Whirlpool Corporation and Domestic & General are independent corporations and not part of the same group. Domestic & General’s use of Whirlpool Corporation’s trademarks is with permission. The plans are service contracts and not insurance. Protection Plan Benefits include:
  • If We Can’t Fix It, We Replace It with a Brand New One
  • Protection planBreakdown Protection If Your Appliance Stops Working
  • No Out of Pocket Repair Costs
  • Serviced by our Network of Factory Certified Technicians
  • Factory Certified Parts
Flexible Appliance Protection Plans, offered by Domestic & General Terms and Conditions
Limited Standard Warranty - Included,
Compatible Accessories
Frequently bought together
Wall Hood Chimney Extension Kit, 9ft -12 ft. - Stainless Steel
Wall Hood Chimney Extension Kit, 9ft -12 ft. - Stainless Steel

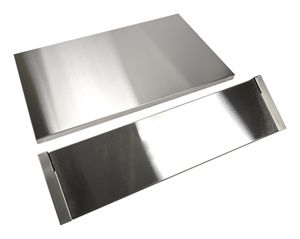

Stainless Steel Backsplash with Dual Position Shelf, measures 36" W x 22" H - for 36" Range or Cooktop
Stainless Steel Backsplash with Dual Position Shelf, measures 36" W x 22" H - for 36" Range or Cooktop

Overview

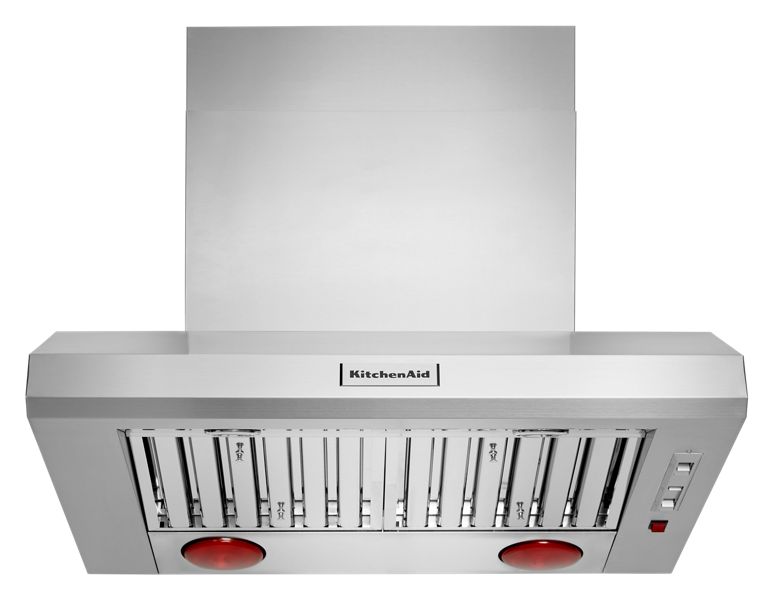

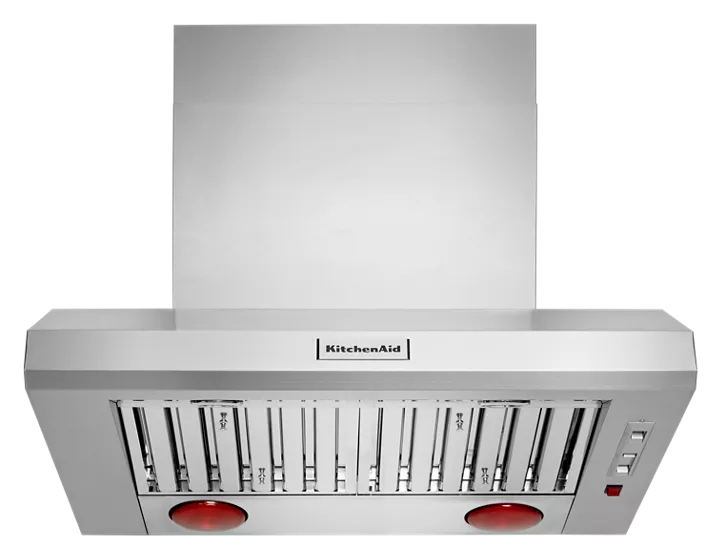

36" 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood

Equip your kitchen with a powerful 36-inch wall-mount canopy range hood designed to pair with 36-inch KitchenAid® Commercial-Style Ranges and Rangetops. A 90,000 BTU rating allows this vent hood to keep up with high-heat cooking on multiple burners. Two food warming heat lamps hold cooked items at serving temperature for up to an hour while you finish other dishes.

Features

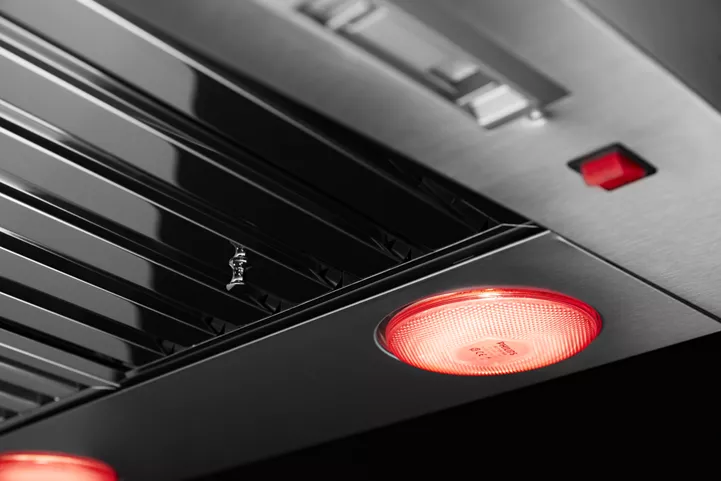

Two Food Warming Lamps

Radiate heat downwards to hold cooked items at serving temperature for up to an hour, allowing you to focus on other steps in your creative process or finish one dish while another rests.

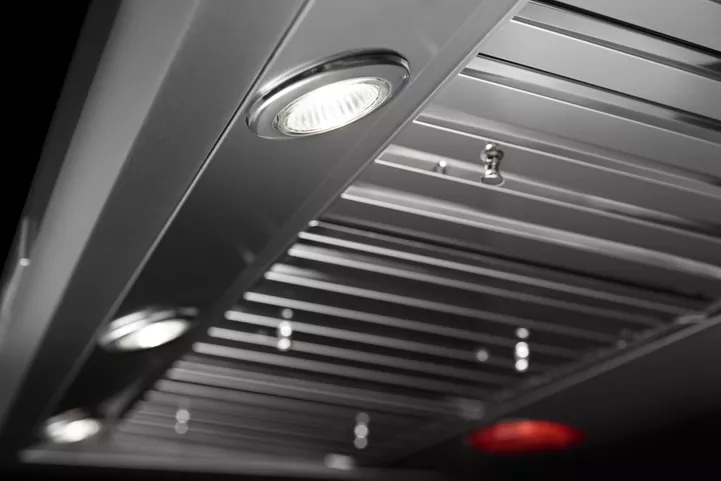

Two LED Lights with Night Light Setting

Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.

Additional Features

Three-Speed Fan

Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.

Requires a 585 or 1170 CFM Motor Class - Sold Separately

allowing you to customize a powerful ventilation system with your choice of commercial-style blowers (two blower options sold separately*).

90,000 BTU Rating

Pairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 90,000 BTU.

Automatic Turn On

Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.

Removable Stainless Steel Baffle Filters

Help capture the grease, steam and odors of high-heat cooking. The stainless steel design adds to the hood's bold commercial-style look and the filters are removable for easy cleaning with soap and water.

Specifications

Width:
36 inches
36 in
Depth:
25 inches
25 in
Download Specs Sheet
Download Dimension Guide

Certifications

Energy Star Qualified

No

Energy Star® Qualified

No

Prop 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Star K Certified

No

Dimensions

Canopy Height

7-7/8 in

Common Size

36 in

Depth

25 in

Gross Weight

80-47/100 lbs

Net Weight

47-2/5 lbs

Width

36 in

Ventilation Details

Auto Function

Auto On

Blower Motor

Blower Motor to be Purchased Separately

Duct Direction

Vertical

Duct Length

13

Duct Outlet Size

10 in

Duct Type

Round

Exhaust Vent Location

Top

Filters

Grease Filters

HVI (CFM HS Horizontal)

N/A

HVI (CFM HS Vertical)

500/920

Lighting Control Type

Slider

Maximum Motor CFM

1,170

Night Light

No

Number of Night Light Settings

1

Task Light Type

LED

Task Lighting

Yes

Vent Fan Location

Side

Venting

Exterior

Details

Blower Type

Centrifugal

Hood Type

Wall Canopy

Controls

Control Location

Hidden

Control Type

Slide Controls

Number of Vent Speeds

3

Electrical

Amps

6-53/100

Hz

60

Power Cord Included

No

Volts

120

Watts

783
