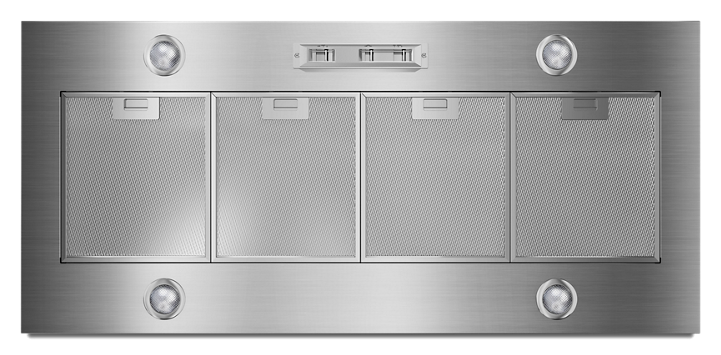

48" 585 or 1170 CFM Motor Class Custom Hood Liner
Model:
UVL6048JSS
Model:
UVL6048JSS
Model: UVL6048JSS
Model: UVL6048JSS
48" 585 or 1170 CFM Motor Class Custom Hood Liner
UVL6048JSS
Model: UVL6048JSS
48" 585 or 1170 CFM Motor Class Custom Hood Liner
Hurry! Limited Time Offer Ends Soon
OUT OF STOCK
-
Point your Phone Camera at a flat surfaceTry a different space if you cannot view the product
-
Moving the product in your spaceUse one finger to move product
-
Scale to see product detailUse two fingers to pinch, scale, and rotate product
-
Tap twice to resetReturn to original scale by double tapping with one finger on the product
Color:
Stainless Steel
Appliance Color
Stainless Steel with Matching Hardware
About Hardware Accessory Kits
How it works?
Personalize your hardware with an accessory kit - a curated palette of mixed metals designed to compliment KitchenAid® exterior finish options.
Your appliance will come with pre-installed matching hardware. Hardware accessory kits ship separately and can be installed with ease - no additional tools needed (allen wrench included).
Browse finishes, color combinations, and find tips when you explore personalized kits.
Installation tips & guides
Delivery information
Take in consideration that delivery times might be different for the appliance and for the custom kit and they will be shipped separately.*
*Dates and cost will be shown at Checkout
Key Features
Features
Three-Speed Fan
Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
Requires 585 or 1170 CFM Motor Class Blower
Allowing you to customize a powerful ventilation system with your choice of commercial-style blowers.
105,000 BTU Rating
pairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 105,000 BTU.
Four LED Lights with Night Light Setting
Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
Additional Features
Removable Filters
Use multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
KitchenAid® Custom Hood Liners
KitchenAid® Custom Hood Liners allow you to conceal ventilation within custom cabinetry or a decorative hood cover, creating a style all your own.
Certifications
Energy Star Qualified
No
Energy Star® Qualified
No
Prop 65
Star K Certified
No

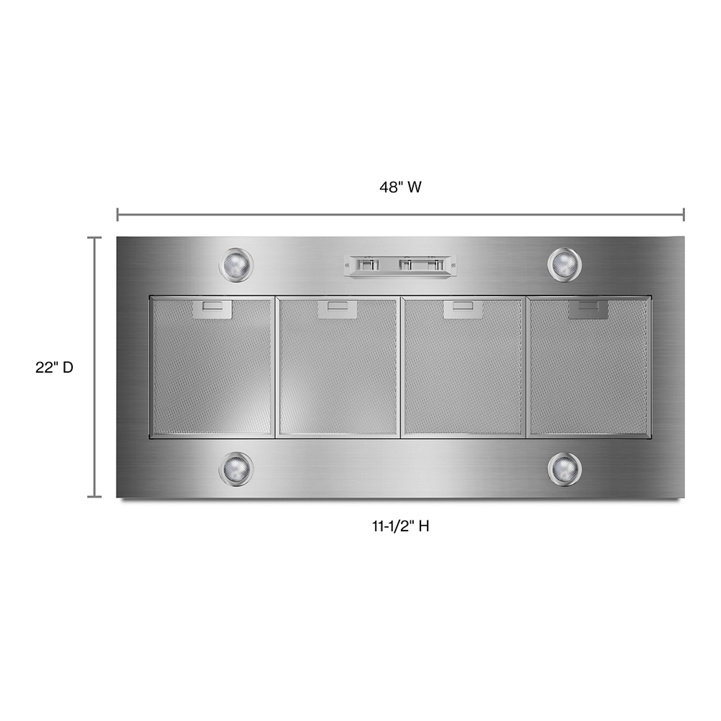

Dimensions
Canopy Height
29.21 cm, 11-1/2 in
Common Size
121.92 cm, 48 in
Depth
55.88 cm, 22 in
Gross Weight
24.00 kg, 52-91/100 lbs
Maximum Height
91.44 cm, 36 in
Minimum Height
76.20 cm, 30 in
Net Weight
15.20 kg, 33-51/100 lbs
Ventilation Details
Auto Function
No
BTU Threshold
65K/105K
Damper Included
Yes
Duct Direction
Vertical
Duct Length
13
Duct Outlet Size
25.40 cm, 10 in
Duct Type
Round
Exhaust Vent Location
Top
Filters
Grease Filters
HVI (CFM HS Horizontal)
N/A
HVI (CFM HS Vertical)
510
Lighting Control Type
Slider
Night Light
No
Number of Night Light Settings
1
Task Light Type
LED
Task Lighting
Yes
Vent Fan Location
Side
Venting
Exterior
Controls
Control Location
Hidden
Control Type
Slide Controls
Details
Blower Type
Centrifugal
Hood Type
Under Cabinet
Electrical
Amps
3-18/25
Hz
60
Power Cord Included
No
Volts
120
Watts
446
Additional services
Select these at checkout- If We Can’t Fix It, We Replace It with a Brand New One
- Protection planBreakdown Protection If Your Appliance Stops Working
- No Out of Pocket Repair Costs
- Serviced by our Network of Factory Certified Technicians
- Factory Certified Parts
Qty:
YOUR EMAIL ADDRESS IS SUCCESSFULLY SUBMITTED!
We will send you an email when this product is back in stock. Thank you!
You can adjust the subscription frequency in your cart. Skip refills or cancel anytime. Learn More
- Savings applied to your first order and every refill. Discount applied in cart.
- Choose delivery frequency in your cart. You'll only be billed when your filter ships.
- Hassle-free, we'll send you a reminder before each delivery. Skip refills or cancel any time.
- Cannot be combined with promo codes.
I agree to the Subscription Terms and authorize KitchenAid to automatically charge my default payment card at then-current prices at the frequency below. I acknowledge that my subscription will auto-renew until I cancel via the Subscriptions section of My Account before the refill order date.
WISH LIST LOGIN
To view or manage your wish list, you must have an account.<br/>Would you like to sign-in or create an account?
Error
There is an issue with your express checkout. Please add this product to cart and proceed through checkout normally
My review for 48" 585 or 1170 CFM Motor Class Custom Hood Liner
WHY BUY WITH KITCHENAID?
Price Match Promise
Price matching is limited to identical products that are in stock at the retailer whose price is being matched at the time the price match is requested. Price matching for products already purchased can be made within 7 days of purchase OR if the product has not yet been delivered. We will match the pre-tax price including installation and parts. Only new products. Excludes extended service plans, refurbished or open box, bundle offers, financing offers, promotional codes, clearance products, and advertised pricing based on misprint or error.
Price matching is limited to identical products that are in stock at the retailer whose price is being matched at the time the price match is requested.
Free Returns on Major Appliances
If something isn’t right, we’re here to help. Request a return within 15 days for products purchased through KitchenAid.com that are in new condition.
Learn MoreWhirlpool Corp 25 Years with Habitat
In our 25 year relationship with Habitat for Humanity International, $150 million in funding and 250,000 appliances have been donated and nearly 1M people impacted.
Learn MoreOverview
This 48-inch custom hood liner allows you to conceal ventilation within cabinetry or a decorative hood cover, creating a style all your own. Choose from two compatible blower motor options (sold separately) for complete customization of your ventilation system. A 65,000 BTU rating allows this hood liner to pair with 48-inch rangesor cooktops of comparable output.
Features
Three-Speed Fan
Features low, medium and high settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
Requires 585 or 1170 CFM Motor Class Blower
Allowing you to customize a powerful ventilation system with your choice of commercial-style blowers.
105,000 BTU Rating
pairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 105,000 BTU.
Four LED Lights with Night Light Setting
Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
Additional Features
Removable Filters
Use multiple layers of screening to help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
KitchenAid® Custom Hood Liners
KitchenAid® Custom Hood Liners allow you to conceal ventilation within custom cabinetry or a decorative hood cover, creating a style all your own.
Specifications
Certifications
Energy Star Qualified
No
Energy Star® Qualified
No
Prop 65
Star K Certified
No
Dimensions
Canopy Height
29.21 cm, 11-1/2 in
Common Size
121.92 cm, 48 in
Depth
55.88 cm, 22 in
Gross Weight
24.00 kg, 52-91/100 lbs
Maximum Height
91.44 cm, 36 in
Minimum Height
76.20 cm, 30 in
Net Weight
15.20 kg, 33-51/100 lbs
Ventilation Details
Auto Function
No
BTU Threshold
65K/105K
Damper Included
Yes
Duct Direction
Vertical
Duct Length
13
Duct Outlet Size
25.40 cm, 10 in
Duct Type
Round
Exhaust Vent Location
Top
Filters
Grease Filters
HVI (CFM HS Horizontal)
N/A
HVI (CFM HS Vertical)
510
Lighting Control Type
Slider
Night Light
No
Number of Night Light Settings
1
Task Light Type
LED
Task Lighting
Yes
Vent Fan Location
Side
Venting
Exterior
Controls
Control Location
Hidden
Control Type
Slide Controls
Details
Blower Type
Centrifugal
Hood Type
Under Cabinet
Electrical
Amps
3-18/25
Hz
60
Power Cord Included
No
Volts
120
Watts
446
