Overview

30'' Under-the-Cabinet, 4-Speed System

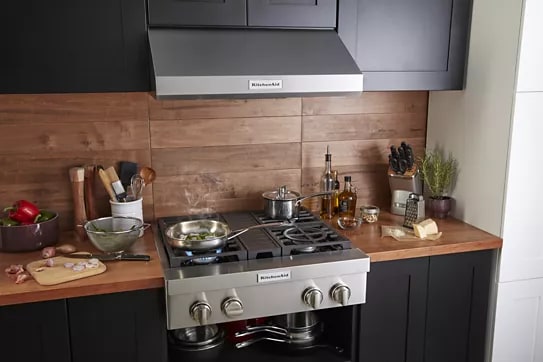

The power of a 4-speed motor adds to the precision of this under-the-cabinet ventilation system that pairs well with most 30-inch cooktops and ranges. The under-the-cabinet design allows you to hide ductwork inside cabinetry for a more built-in look.

Features

Automatic Turn On

Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.

Perimeter Ventilation

Can handle up to a 65,000 BTU total output by pulling air from the edges of the hood and speeding up the movement of the air at the center

Programmable Off Function

Can be set to automatically turn off after a period of time.

65,000 BTU Rating

Pairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.

585 CFM Motor Class Ventilation System

Equips your kitchen with the powerful ventilation necessary to match the high heat of commercial-style ranges and rangetops with comparable width and total burner outputs.

Additional Features

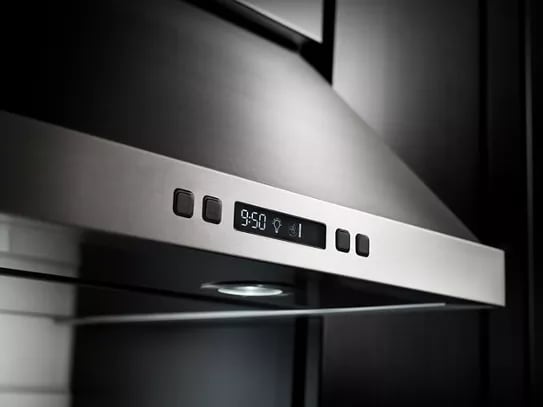

4-Speed Electronic Touch Control with LCD Display

Provides sleek, visual confirmation of your ventilation selections, settings, and filter status.

Removable Filters

help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.

Two LED Task Lights

illuminate the entire cooking surface below with natural-looking light.

Easy In-line Conversion

Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.

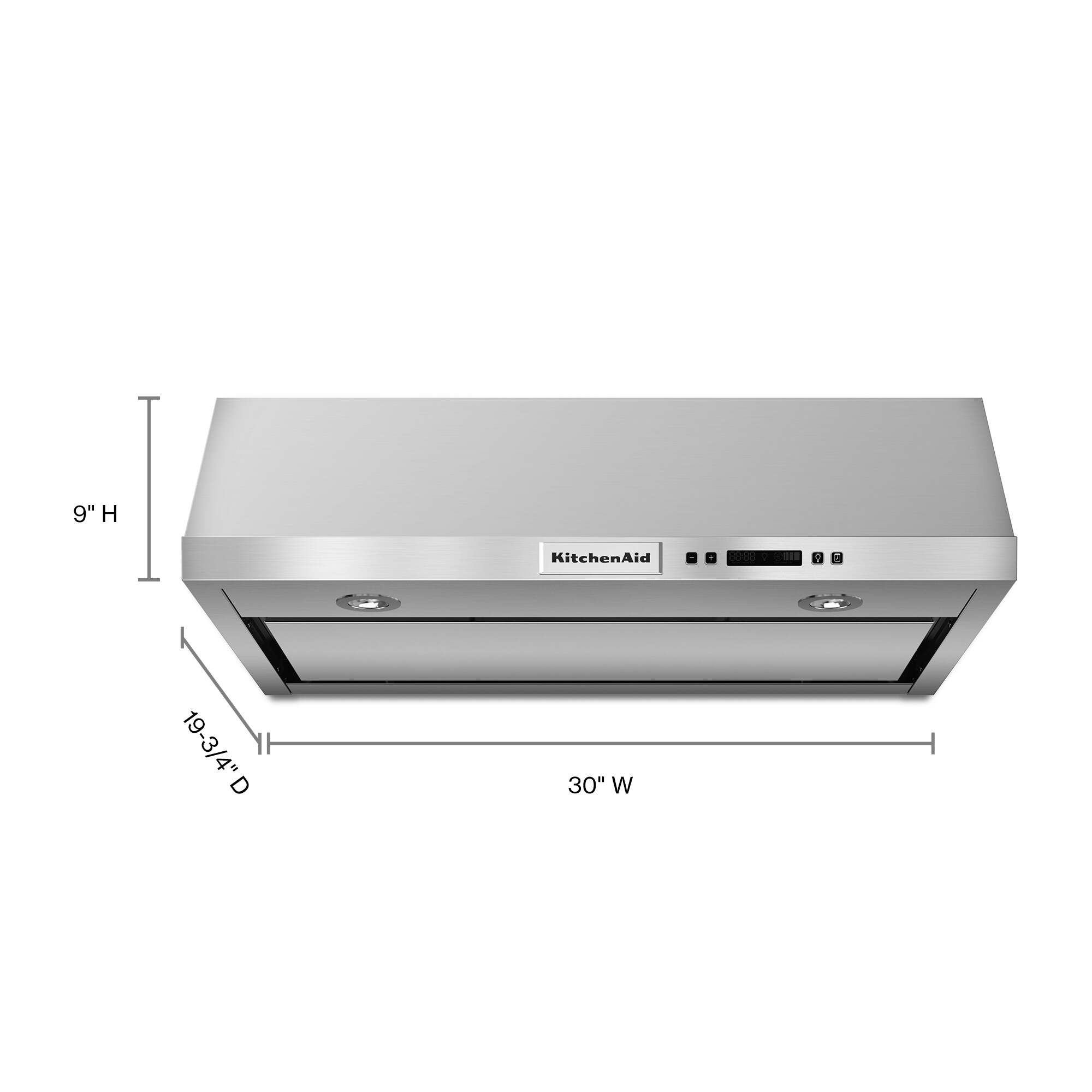

Specifications

Height:
9 inches
9 in
Width:
30 inches
30 in
Depth:
19-3/4 inches
19-3/4 in
Download Specs Sheet
Download Dimension Guide

Certifications

Prop 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Dimensions

Common Size

30 in

Depth

19-3/4 in

Gross Weight

39-9/10 lbs

Height

9 in

Net Weight

33-7/100 lbs

Width

30 in

Ventilation Details

Auto Function

Auto On

CFM Motor Class

585

Duct Direction

Vertical or Horizontal

Duct Outlet Size

6 in

Duct Type

Round

Filters

Grease Filters

Night Light

Yes

Night Light Type

N/A

Number of Night Light Settings

0

Number of Task Light Settings

1

Task Light Type

LED

Task Lighting

Yes

Venting

Exterior or Recirculating

Controls

Control Type

Electronic Touch

Number of Vent Speeds

4

Details

Blower Type

Centrifugal

Hood Type

Under-the-Cabinet

Material

Stainless Steel

Electrical

Amps

15

Volts

120
