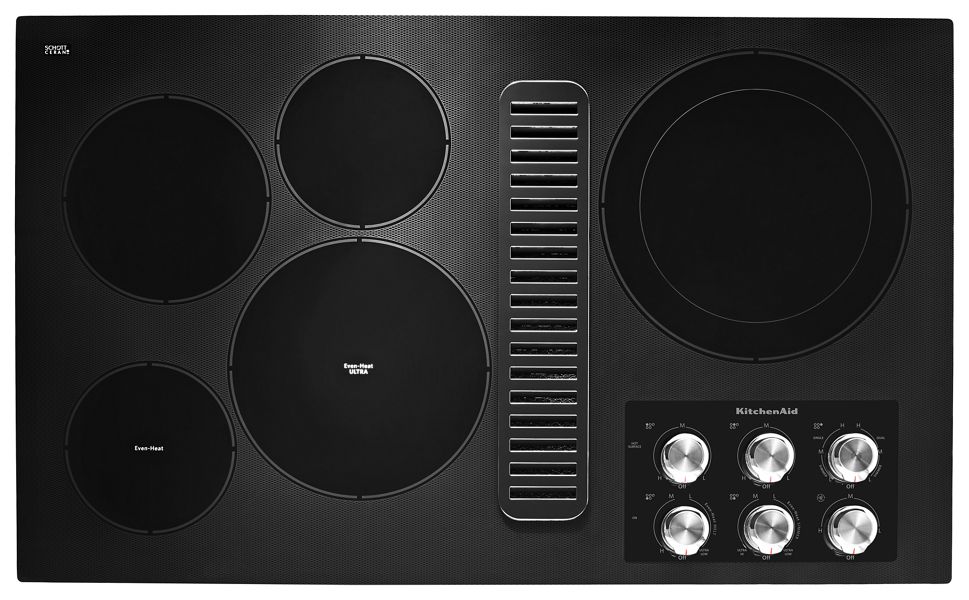

36" Electric Downdraft Cooktop with 5 Elements

Model: KCED606GBL

Model: KCED606GBL

Appliance Color

Black

Black with Matching Hardware

Additional Hardware Kit
Personalize your appliance with optional handle and knob accessory kits.
Already have the appliance? Shop Compatible Hardware Kits

Key Features

Offers

OR

Temporarily out of stock
Provide your ZIP Code to check availability in your area.
Credit Card icon PayPal icon ApplePay icon Affirm icon

Earliest Estimated Standard Delivery (FREE) :

Order in the next: Hrs Mins Secs

Select date at Checkout | Deliver to

Earliest Estimated Standard Delivery (FREE) :

Earliest Estimated Express Delivery () :

Order in the next: Hrs Mins Secs

Select date at Checkout | Deliver to

Additional services

Select these at checkout
Delivery Services Learn More
Protection Plan (Optional)
Whirlpool Appliance Care service plans are provided by Domestic & General USA Services LLC. However, in Florida and Washington it is Domestic & General USA Inc. 866-333-3134, 122 South Michigan Avenue, Suite 1390, Chicago, IL 60603. Whirlpool Corporation and Domestic & General are independent corporations and not part of the same group. Domestic & General’s use of Whirlpool Corporation’s trademarks is with permission. The plans are service contracts and not insurance. Protection Plan Benefits include:
  • If We Can’t Fix It, We Replace It with a Brand New One
  • Protection planBreakdown Protection If Your Appliance Stops Working
  • No Out of Pocket Repair Costs
  • Serviced by our Network of Factory Certified Technicians
  • Factory Certified Parts
Flexible Appliance Protection Plans, offered by Domestic & General Terms and Conditions
Limited Standard Warranty - Included,
Compatible Accessories
Frequently bought together

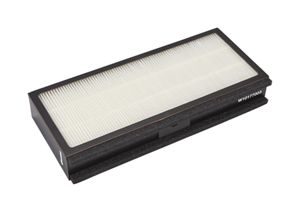

Range Hood Replacement Grease Filter for Ductless Downdraft Cooktops
Range Hood Replacement Grease Filter for Ductless Downdraft Cooktops

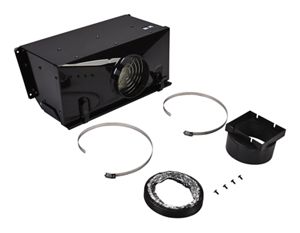

Ductless Downdraft Vent Kit, Black, Size: 20" L x 13" W x 12" H
Ductless Downdraft Vent Kit, Black, Size: 20" L x 13" W x 12" H

Overview

36" Electric Downdraft Cooktop with 5 Elements

This 36” electric cooktop features Downdraft, an integrated ventilation system that doesn’t require a separate hood. A 10-inch Even-Heat™ Ultra element provides versatility for both high-and low-temperature cooking, and has multiple simmer settings. And with a 3-speed fan with 300 CFM exhaust rating, the venting can keep up with your culinary feats.

Features

Downdraft Ventilation

Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.

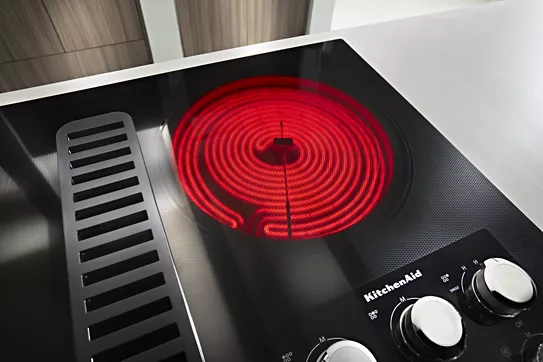

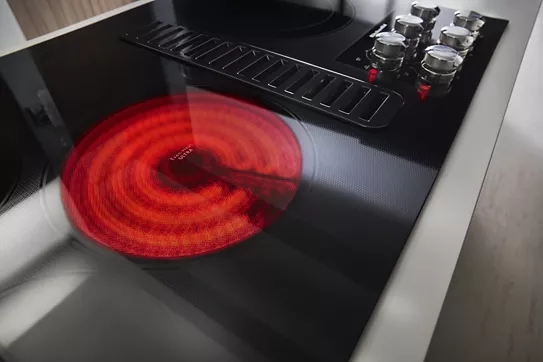

10'' Even-Heat™ Ultra Element with Simmer Setting

Provides more versatility for high and low temperature cooking techniques. Even-Heat™ Technology maintains a constant supply of power and delivers a range of simmer settings.

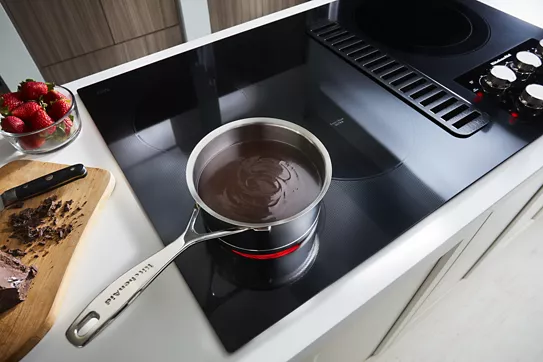

6'' Even-Heat™ Element with Melt Setting

Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.

3-Speed Fan Control

Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.

12''/9'' Double-Ring Element

Lets you use different cookware sizes at one location. When using large, 12-inch cookware the entire element surface is used. For smaller cookware, you’ll use only the 9-inch inner element.

Convertible to Duct-Free Ventilation

Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.

Additional Features

300 CFM Exhaust Rating

Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.

Power-On Indicator Light

Lets you know at a glance when an element is on.

Hot-Surface Indicator

Provides a clear indication that lets you know if any cooking surface is on or still hot.

Pure Color Ceramic-Glass Surface

Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.

Stainless Steel Knobs

Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.

8'' Round Element

Efficiently heats a commonly used pan size and can reach a power output of up to 1800 watts for every day use.

6'' Round Element

Can reach a power output of up to 1200 watts to handle your daily cooking needs.

Specifications

Height:
3-5/8 inches
3-5/8 in
Width:
36-5/16 inches
36-5/16 in
Depth:
22-1/16 inches
22-1/16 in
Download Specs Sheet
Download Dimension Guide

Certifications

ADA Compliant

No

Prop 65

CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

UL

Yes

Exterior Details

Knob Color

Color Coordinated

Knob Type

Metal

Cooktop Details

Cooktop Surface Color

Black

Cooktop Surface Material

Ceramic Glass

Heating Element On Indicator Light

Yes

Hot Surface Indicator Light

Yes

Installs Over Built-In Oven

No

Details

Digital Display

No

Fuel Type

Electric

LP Convertible

No

Power Outage Compatible

No

Dimensions

Common Size

36 in

Cutout Depth

21-1/8 in

Cutout Width

34-563/1000 in

Depth

22-1/16 in

Gross Weight

78 lbs

Height

3-5/8 in

Maximum Height

18-3/4 in

Net Weight

73 lbs

Width

36-5/16 in

Element/Burner Details

Automatic Pan Detection

No

Center Front Element-Burner Power

3,200W

Center Front Element-Burner Size

10in.

Center Front Element-Burner Type

Even-Heat™ Ultra

Center Rear Element-Burner Power

1,200W

Center Rear Element-Burner Size

6in.

Center Rear Element-Burner Type

Single

Cooktop Element Style

Radiant

Cooktop Type

Downdraft

Left Front Element-Burner Power

1,300W

Left Front Element-Burner Size

6in.

Left Front Element-Burner Type

Even-Heat™

Left Rear Element-Burner Power

1,800W

Left Rear Element-Burner Size

8in.

Left Rear Element-Burner Type

Single

Number of Cooking Element-Burners

5

Power Boost

No

Right Rear Element-Burner Power

3,000W

Right Rear Element-Burner Size

12in./9in.

Right Rear Element-Burner Type

Dual-Stacked Burner

Controls

Control Location

Right Side

Control Type

Knobs

Number of Vent Speeds

3

Ventilation Details

CFM Motor Class

300

Downdraft Vent

Yes

Electrical

Amps

40

Hz

60

Power Cord Included

No

Volts

220

Features

Cooktop Features

Cookshield Finish, Downdraft Ventilation, Even-Heat Melt Burner
