Stove dimensions: How to measure for a new stove
When choosing a new stove for all your baked, braised and sautéed creations, the first thing you might consider is size. This guide will help you understand standard, apartment-sized and commercial-style range options so you can choose the right stove size for your kitchen and for whatever recipes you cook up. Keep reading for a step-by-step measuring guide as well as installation considerations to help you make your decision.
What is a standard stove size?
The standard stove size is typically 30 inches wide, 36 inches tall and roughly 27 to 29 inches deep, excluding handles, knobs and control panels—though some models vary. These standard sizes ensure a seamless, flush integration with your countertops.
You can find a wide variety of types of stoves or ranges within these standard dimensions, including freestanding ranges, slide-in stoves and even double-oven models.
However, many variables including the number of burners, stovetop elements, oven capacity and other factors mean you can find residential stoves between 30 and 38 inches wide or more. In addition, you can also find kitchen stoves made for either small spaces or large commercially-inspired kitchens outside of these standard stove dimensions.
Typical compact-sized stove dimensions
Compact-sized ranges can be helpful in smaller kitchens when you need to save on space. However, this may also mean you’ll have a smaller cooktop surface and oven capacity. Before choosing, consider your priorities: extra prep and storage space, or more room to cook. The following sizes are general and some models vary.
Width: 20 to 24 inches
Height: 36 inches
Depth: 27 to 29 inches

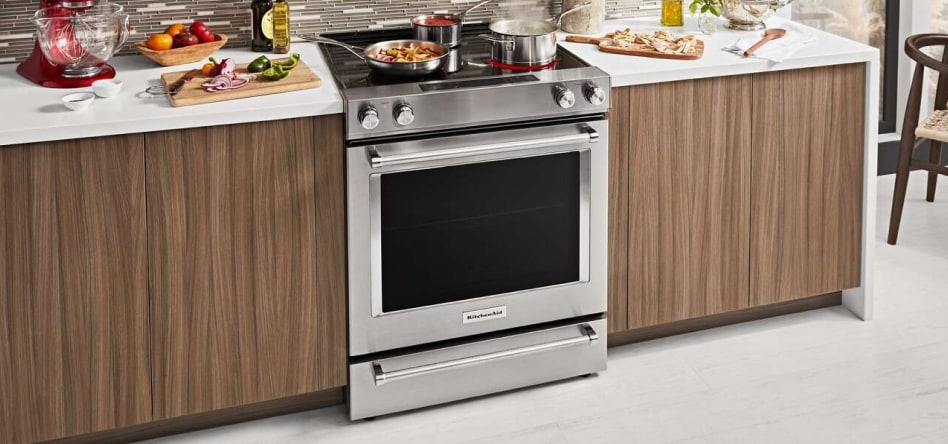

Typical standard-sized range dimensions
Standard-sized ranges are ideal for everyday cooking. This will most likely be the range you’ll find in a standard kitchen. The following sizes are general and some models vary.
Width: 30 to 36 inches
Height: 36 inches
Depth: 27 to 29 inches
Typical commercial-sized range dimensions
Commercial-style ranges typically have wider range dimensions, which can affect cabinet planning, ventilation options and available workspace. The following sizes are general and some models vary.
Width: 30 to 60 inches
Height: 36 inches
Depth: 27 to 31 inches
Range size comparison chart
Range type |
Typical width |
Typical height |
Typical depth |
Number of burners |
Best-fit kitchen scenarios |
Compact |
20 to 24 inches |
36 inches |
27 to 29 inches |
Four |
Apartments, condos, small homes and other spaces with a lack of kitchen space |
Standard |
30 to 36 inches |
36 inches |
27 to 29 inches |
Four to Six |
Everyday cooking in an average-sized kitchen |
Commercial-Style |
30 to 60 inches |
36 inches |
27 to 31 inches |
Eight to 10 |
Ideal for large kitchens and cooking larger meals |
Measurements and numbers in the above table are general estimates. Some models do vary.

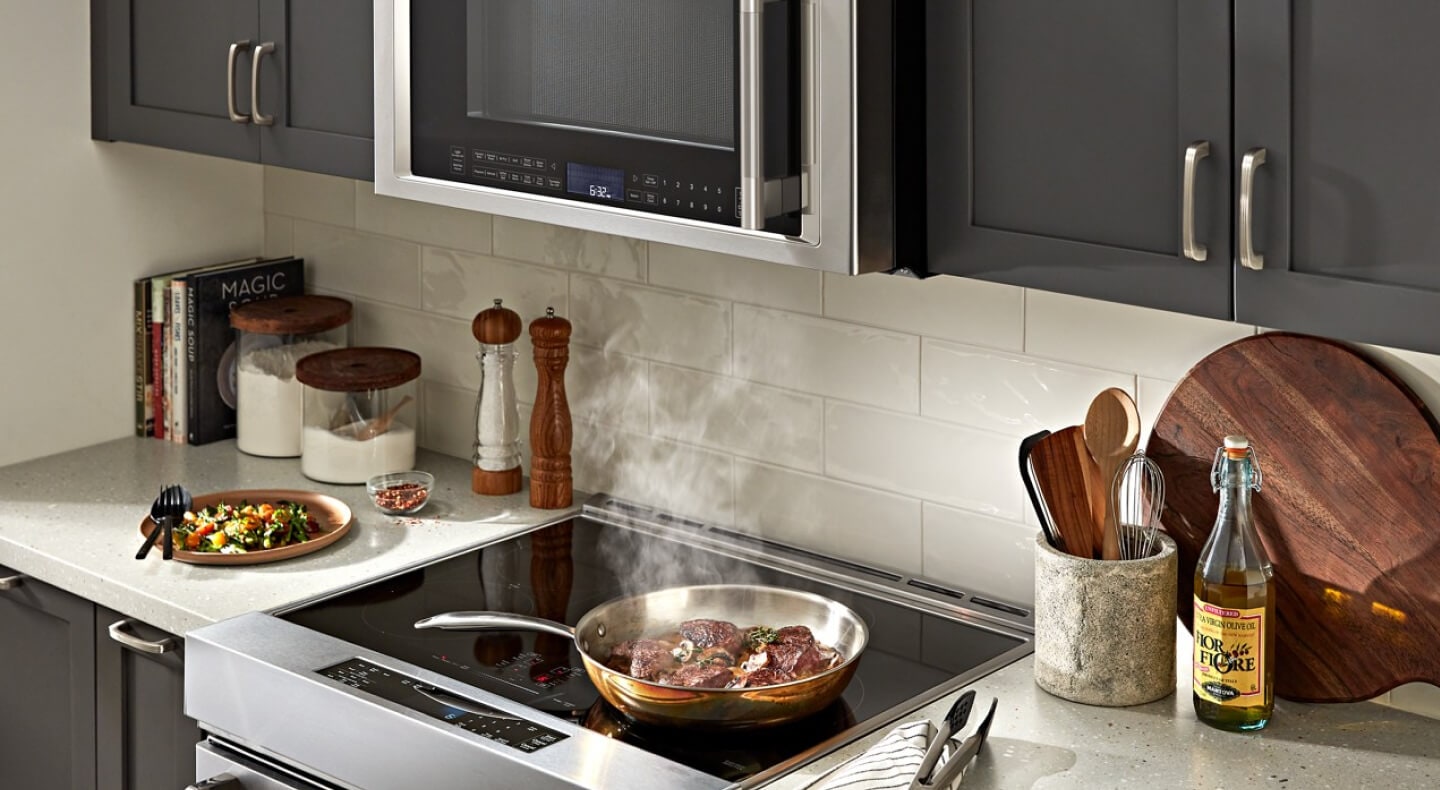

Are apartment-sized stoves available for smaller kitchens?

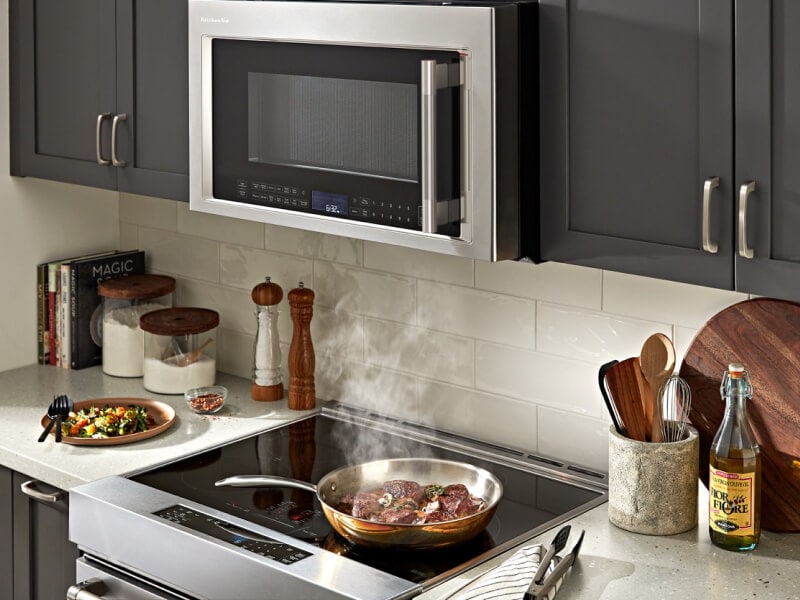

Compact, apartment-sized stoves are available for smaller areas and can save horizontal space in your kitchen. These stoves are generally 20 to 24 inches wide and are usually the same depth and height as standard-sized stoves at 27 to 29 inches deep and approximately 36 inches tall, excluding control panels.
Apartment-sized stoves come in both gas and electric and usually feature at least 4 burners, despite their reduced dimensions. However, the overall cooktop surface space, as well as oven capacity, are smaller than most standard-sized stoves.
For this reason, some people with limited space or tricky kitchen layouts opt for a wall oven and separate kitchen cooktop combo. Cooktops can be a great option for those looking to free up undercounter cabinet space, while wall ovens can utilize more vertical space in a smaller kitchen.
If this sounds like the best setup for your space, explore wall ovens and cooktop options from KitchenAid brand.

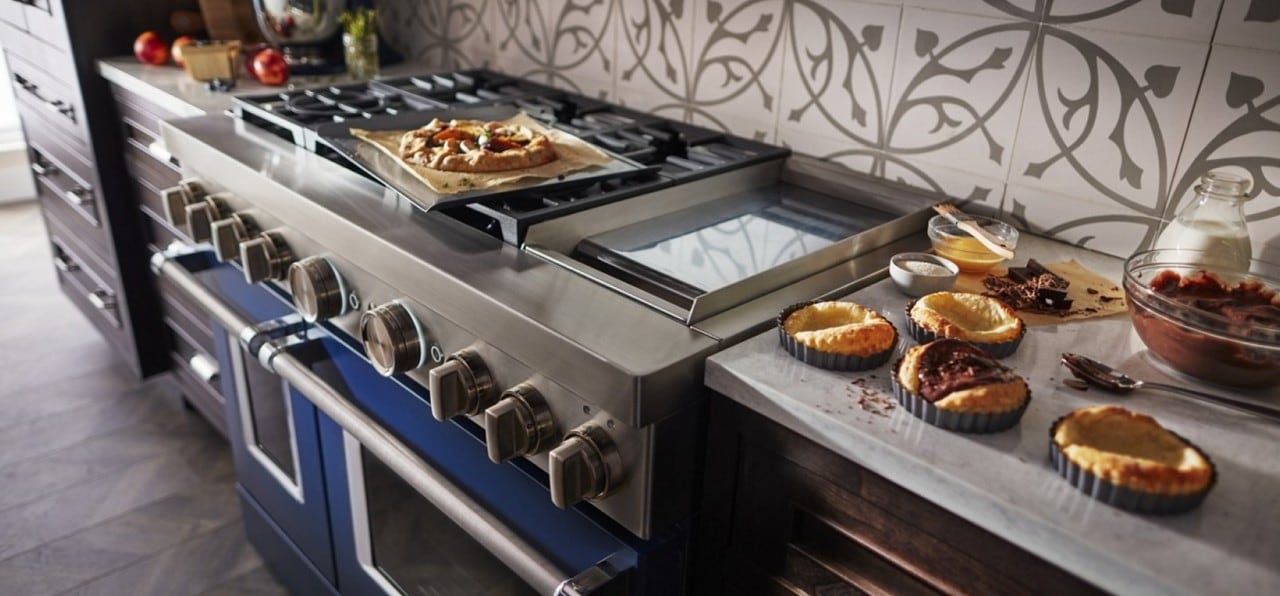

Is a commercial-style stove larger than standard ranges?
Commercial-grade and commercial-style stove widths can vary greatly due to differences in the number of ovens, cooktop surface size and more. In general, single-oven commercial-style ranges fall between 30 to 36 inches wide. Double-oven commercial-style ranges can run 48 to 60 inches wide, and sometimes more.
Commercial-grade ranges designed for restaurants may offer even more size variation. However, commercially-inspired models designed for residential homes tend to have similar depth and height to standard-sized stoves: around 27 to 31 inches deep and approximately 36 inches tall excluding control panels, handles and knobs. Many commercial-style ranges include premium features along with larger capacities and extra burners so you can simmer sauces, sauté vegetables and boil fresh pasta all at once. The commercial-style range lineup from KitchenAid brand offers stoves up to 48 inches wide with double ovens, as well as new color options with matching handles, including Agave, Wildflower and Scorched Orange.
KitchenAid® Hardware Accessory Kits
Curate the colors and textures that move you

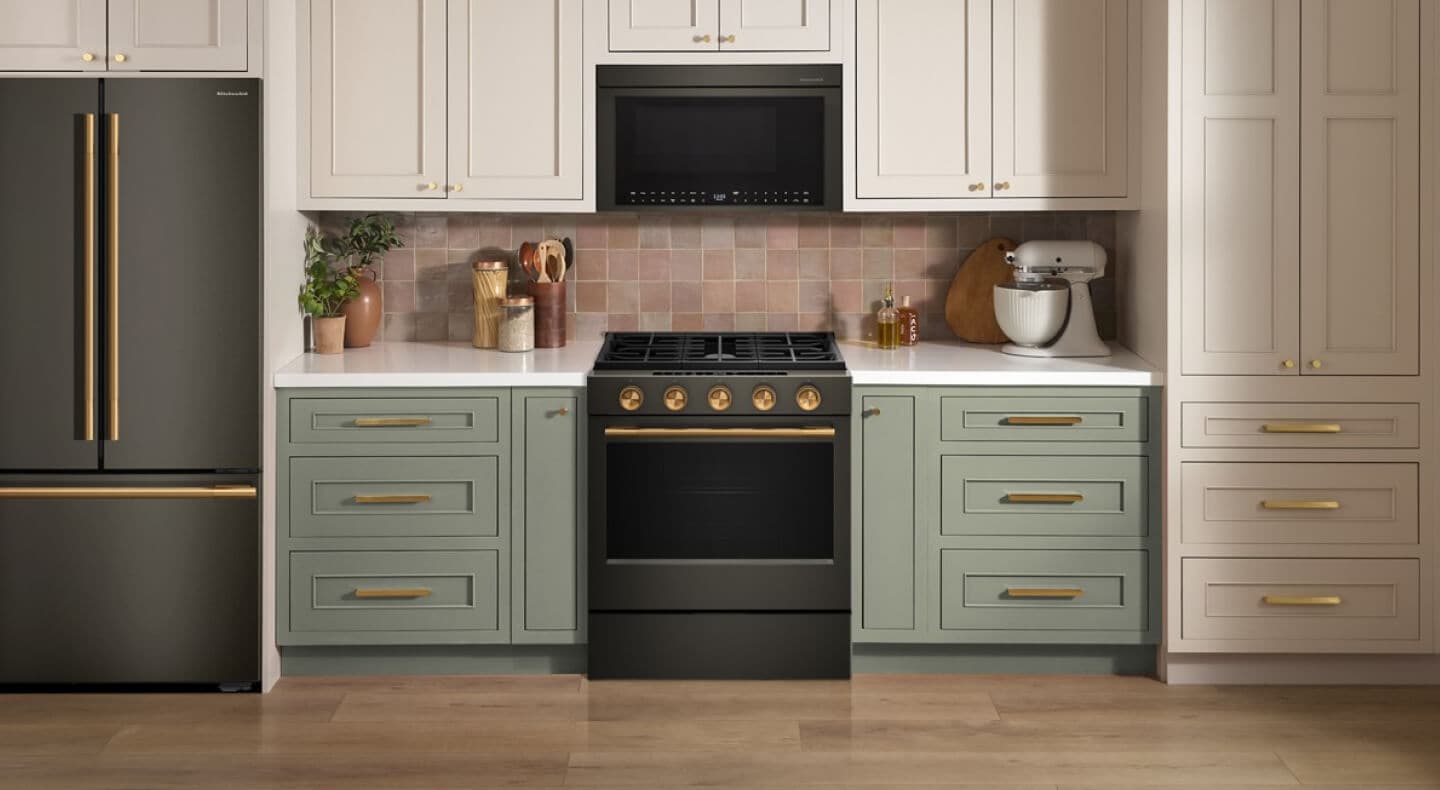

From bold Black Ore to the inviting warmth of Bronze, mix and match handles and knobs to refresh your appliances and bring new energy to your kitchen
The KitchenAid® Line

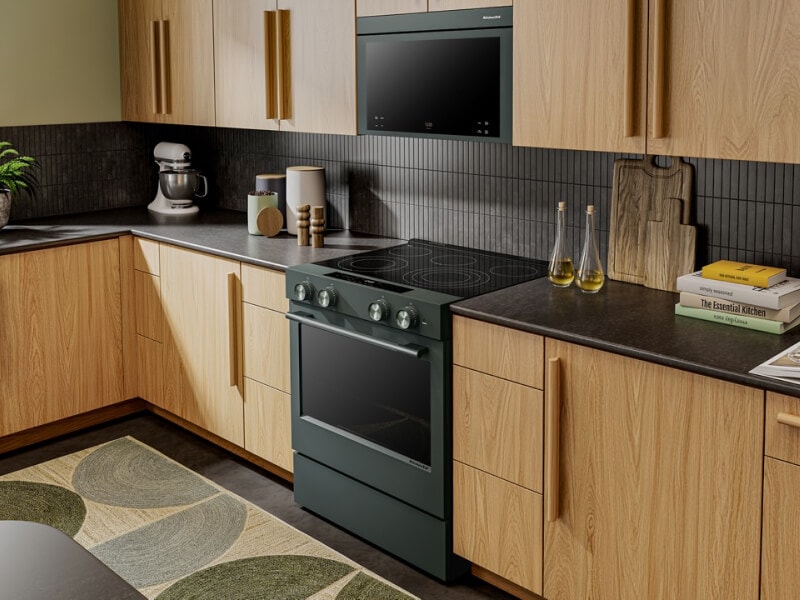

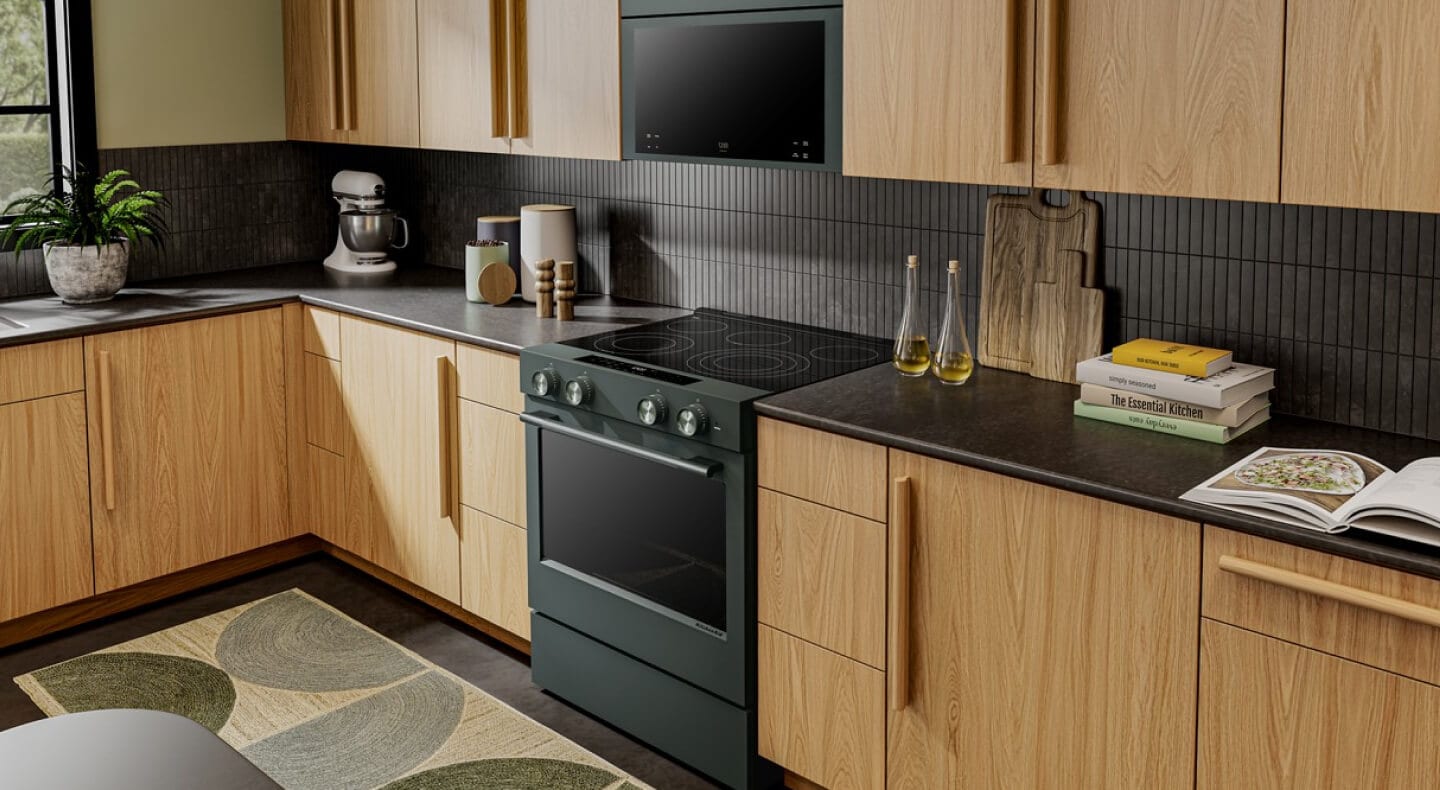

Discover Juniper appliances
Inspired by nature, this neutral color features a lush satin metallic finish with matching handles and/or knobs to bring a fresh, clean elegance to your kitchen
How to measure a stove

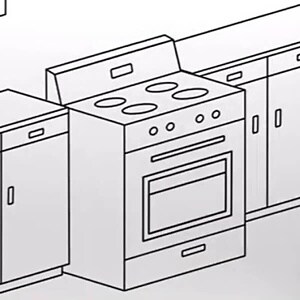

How you measure a stove depends first on how you will install your stove. If you are installing a slide-in or freestanding stove between cabinets, follow these step-by-step instructions for how to measure a stove. Make sure to measure your cutout in multiple places to help account for uneven cabinets, flooring and countertop alignment. Other types of stoves may have different cutout and clearance requirements, so check your product manual before you begin measuring.
Step 1: Remove your current stove
It’s best to measure the empty cutout space to ensure accuracy. To do so, you first need to remove your current stove.
Make sure the stove is unplugged and the gas valve is turned off, if applicable.
Next, remove the oven trays and—with the help of another person—carefully slide the stove out of the cutout space. Be mindful during this process to avoid damage to your floor.

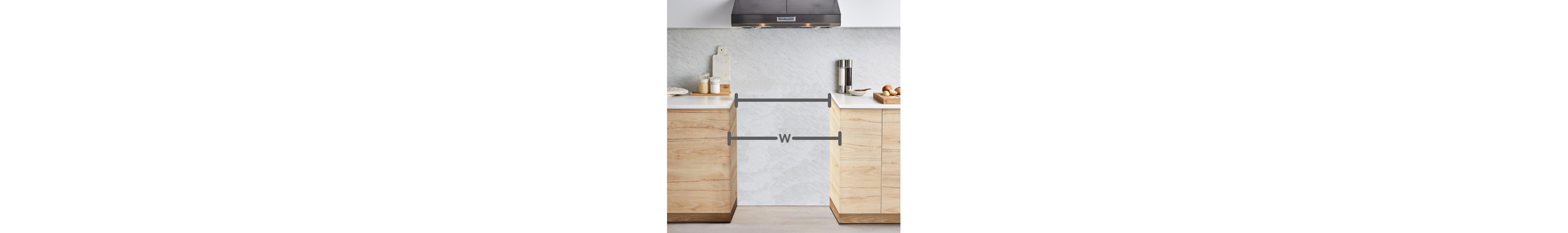

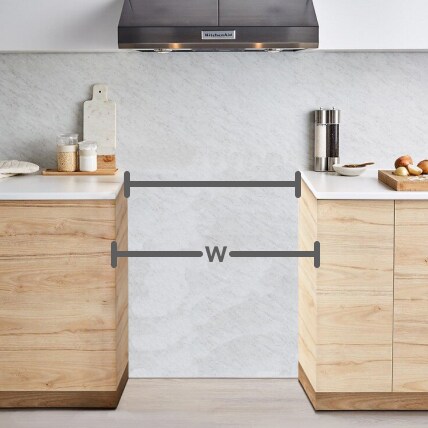

Step 2: Measure for stove width

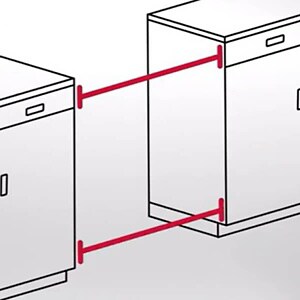

Use a measuring tape to measure the width of the cutout from cabinet to cabinet. To account for the possibility of uneven cabinets, take a measurement near the back of the opening, and a second measurement near the front. If there is any difference, go with the smaller dimension.

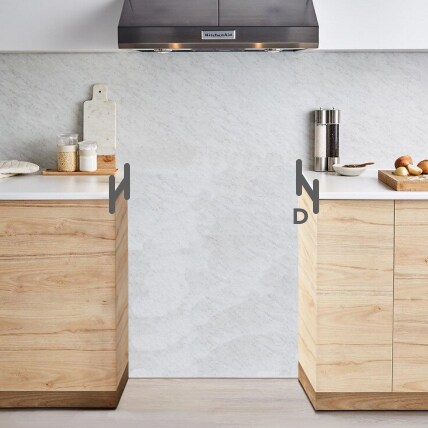

Step 3: Measure for stove depth
Measure the cutout depth from the wall to the front of the cabinet, excluding the door. Again, it’s best to take two measurements: one along the right side, and a second along the left side. Use the smaller dimension if there is a difference.

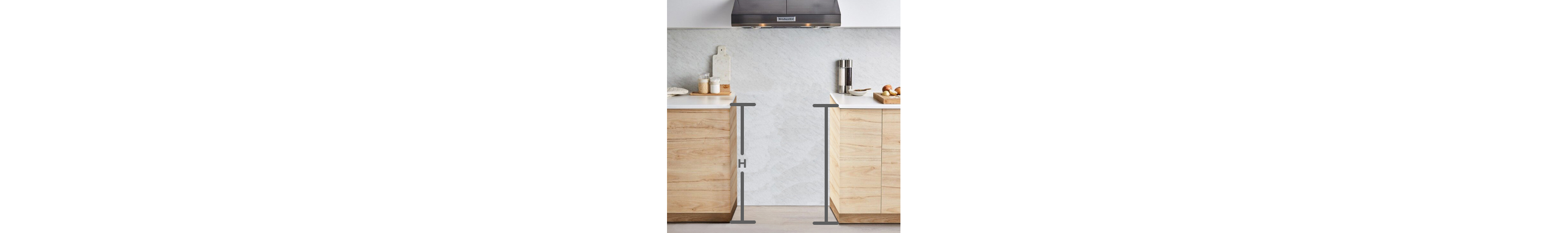

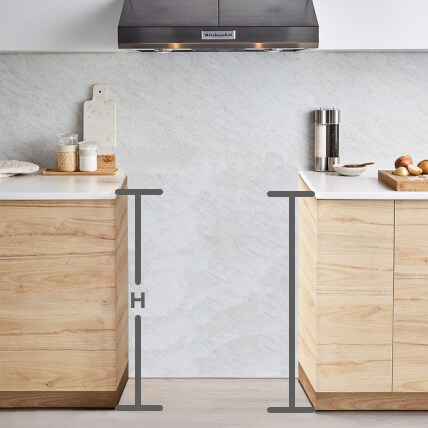

Step 4: Measure for stove height
Measure the stove cutout height from the top of the counter to the floor on both sides of the cutout. Standard counters are usually 36 inches high. This could vary if the floor beneath your stove is different from the rest of your kitchen, so be sure to check your stove height against both countertop height and finished flooring. Most stoves have adjustable feet so you can raise your appliance if needed.
Step 5: Other cabinet installation clearances
The exact clearance you will need around a range installed between cabinets depends on your specific model, as well as whether it is gas or electric. Make sure to reference the installation instructions or product guides for your appliance, as well as comply with all local codes and ordinances. Here are some of the additional clearances you will need to consider:
Upper cabinet dimensions: Consider both the depth of the cabinet as well as the space from the underside of the cabinet to the countertop.
Space above the cooking surface: Check minimum clearances needed from the cooking surface to the bottom of cabinets or other combustible surfaces.
Note: This will depend on whether or not you include a range hood or vent. If using, follow the hood or vent installation instructions for dimensional clearances above the cooking surface.
Distance between stove and wall: The sides of the range to a wall or other combustible material require a minimum clearance as well.
Space in front of the range: Allow for at least 40 inches of space in front of the range and 48-60 inches between the range and other appliances so the door can fully open and you have room to move around it.
Ventilation requirements: Consider what type of range hood you’ll install and if you’ll need to remove cabinet space to accommodate it.
Stove dimensions FAQs
Get answers to commonly asked questions about stove dimensions and installation.
Stove dimensions can vary between the stove size itself and the cutout measurements, which are slightly larger. But the stove dimensions listed on a product’s packaging and paperwork, should be accurate. It’s important to check the exact specifications of each stove to make sure it will fit your available space.
To measure for a freestanding range from KitchenAid brand, allow at least 40 inches of workspace in front of the range, as well as 48 to 60 inches of space between the range and other appliances. This ensures an efficient workflow and allows space to open the door and ample room to create. Consult the appliance installation instructions and product guides for exact clearances needed for your stove.
Before installing your stove, you’ll want to consider how it will affect your kitchen workflow, cabinet placement, ventilation, appliance spacing, door clearance and utility locations. Keep reading for a checklist on what you’ll need before measuring or purchasing your stove.

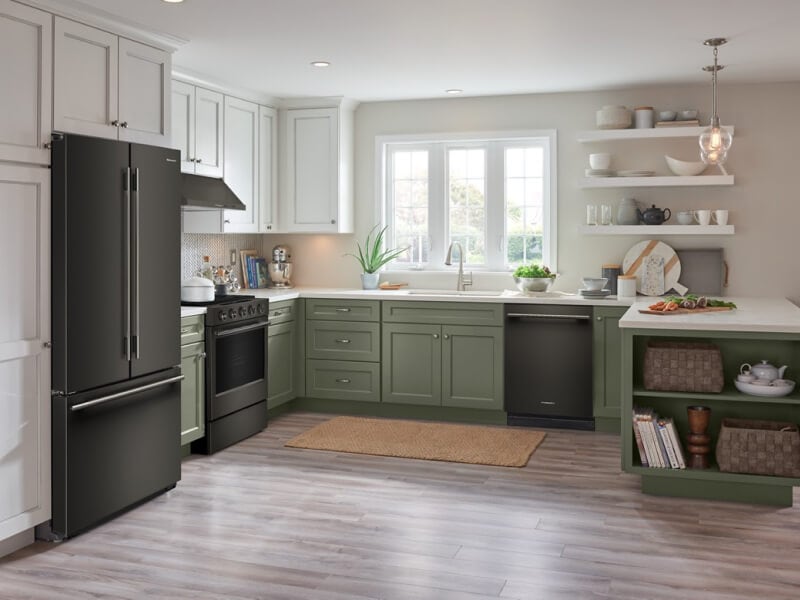

Kitchen workflow: A work triangle can help streamline kitchen tasks. You can create a work triangle by placing your refrigerator near the kitchen entrance, the sink between the refrigerator and stove and the stove opposite the sink and refrigerator.
Cabinet planning: Measure your stove to ensure that it will fit your current cabinet space. Larger stoves may require the removal of existing cabinets to accommodate for a larger appliance.
Ventilation: Your stove will require ventilation to help remove odors, smoke and airborne grease. This vent will typically need to be as wide as your stove to ensure proper coverage.
Appliance spacing and door clearance: You’ll want at least 40 inches of space in front of your oven and 48-60 inches between your oven and other appliances so the door can open with plenty of room.
Utility locations: Make sure you have space by available electrical outlets or gas hookups to help make your installation run more smoothly.
